Front elevation of Mediterranean home (ThePlanCollection: House Plan #117-1066)
6-Bedroom, 6024 Sq Ft Home Plan - 117-1066 - Main Exterior

About Plan # 117-1066

About Plan # 117-1066

6024 SQUARE FEET 6 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 111' 5" WIDTH 109' 0" DEPTH 2 GARAGE BAY

This is a great luxury two-story house plan with 6024 total square feet. Some of the special features of this luxury home include: Additional Guest House, Perfect for Visiting Relatives Luxurious Breezeway, Courtyard and Lanai Secluded Master Suite Fit for Royalty, Complete with Enormous Walk-In Shower Glorious Second Story Balcony Overlooking Formal Living Additional Rooms Include Study, Game, Galleries, and Dining.

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

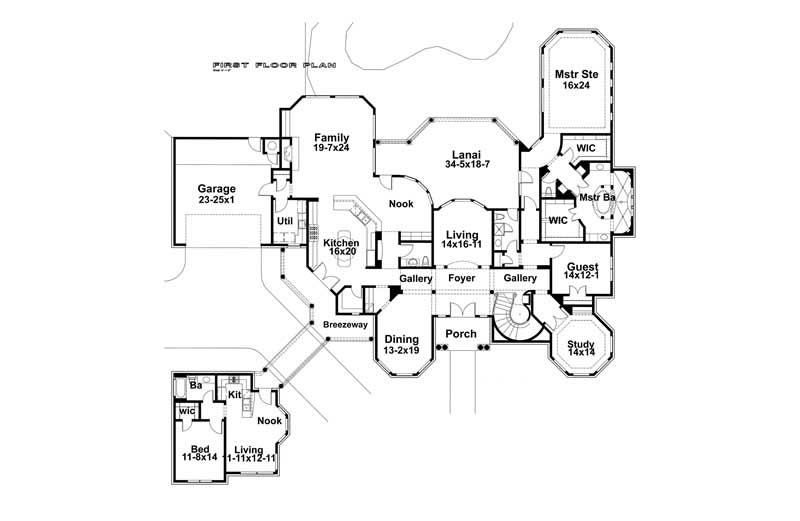

Home Plan: #117-1066 Floor Plan First Story - main level Floor Plan Main Level of Mediterranean Plan #117-1066

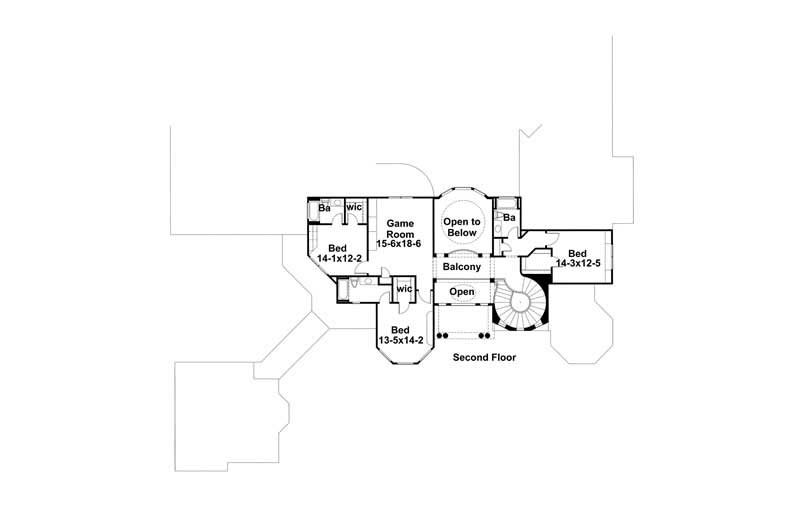

#117-1066 Floor Plan Second Story - upper level Floor Plan Upper Level of Mediterranean Plan #117-1066
Home Plan: #117-1066 Floor Plan First Story - main level Floor Plan Main Level of Mediterranean Plan #117-1066
#117-1066 Floor Plan Second Story - upper level Floor Plan Upper Level of Mediterranean Plan #117-1066
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1066
Floors:
2
Bedrooms:
6
Full Baths:
6
Half Baths:
1

Square Footage

Heated Sq Feet:
6024
Main Floor:
3963
Upper Floor:
1442
Unfinished Sq Ft:
Bonus Room:
619

Dimensions

Width:
111' 5"
Depth:
109' 0"
Ridge Height:
34' 4"

Architectural Styles

Mediterranean
Luxury
Spanish
Florida Style
Texas Style

Special Feature

Mother in law apartment
Fireplace
Guest Room
Family Room
Game Room
Main Level Laundry
Library
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Breezeway
Courtyard
Covered Lanai
Porte-Cochere

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
