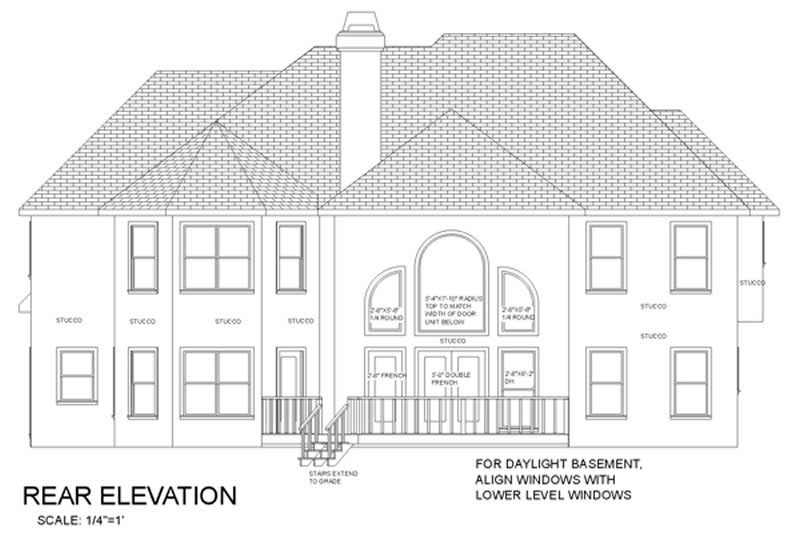

REAR ELEVATION
109-1160: Home Other Image-Front View
5-Bedroom, 3500 Sq Ft Luxury House Plan - 109-1160 - Front Exterior
REAR ELEVATION
109-1160: Home Other Image-Front View

About Plan # 109-1160

About Plan # 109-1160

3500 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 56' 5" WIDTH 58' 10" DEPTH 0 GARAGE BAY
From the covered entry, you'll enter a dramatic foyer open above to 18' with a double tray ceiling. Beyond the bridge is the grand 17'-11x23'-3 two-story family room with a fireplace and access to the deck. Flanking the fireplace are cabinets and shelves to house an entertainment center and books. The enormous kitchen features a large island and walk-in pantry. Other lower level rooms include a 5th bedroom/study and a living room. Lower level rooms, except the two-story foyer and family room, have 9' ceilings.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

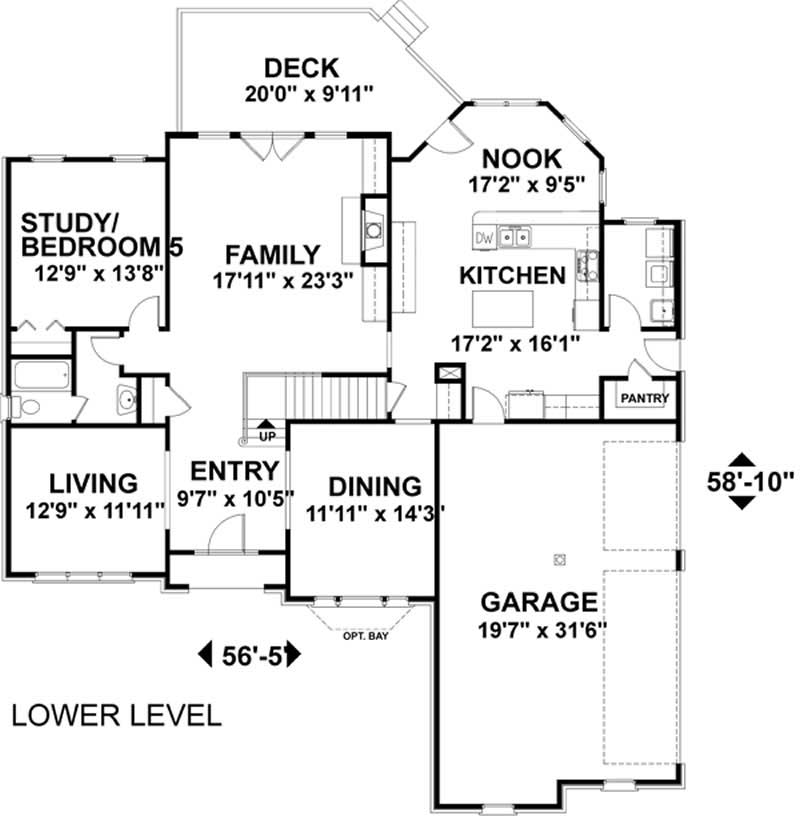

Home Plan: #109-1160 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #109-1160

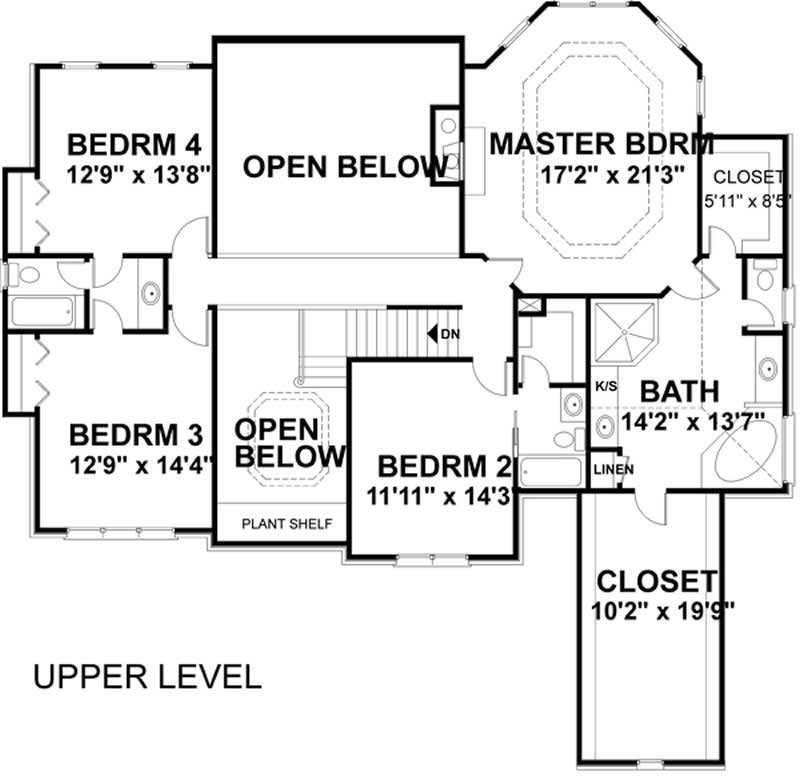

#109-1160 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #109-1160
