About Plan # 109-1047

About Plan # 109-1047

2000 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 63' 0" WIDTH 62' 8" DEPTH 3 GARAGE BAY

At 2,000 living square feet, this “mid-sized” country Craftsman ranch embraces the best of style and smart design. The exterior exudes warmth with its brick and stone facing, inviting front porch, Palladian window and dormers.

Inside, the combination of an open floor plan and vaulted or tray ceilings adorning the living area, family room, and cozy coffee corner create a much larger and welcoming feel than would be expected. To continue the spaciousness, the other rooms have 9-foot ceilings while a bay window brightens the casual dining room and kitchen.

The exquisite master suite boasts direct access to a deck, a sitting area, full master bath, and spacious walk-in closets. The secondary bedrooms both have walk-in closets and share a Jack-and-Jill bath. Another unique feature is the flexible office/living/4th bedroom. Need more space? The upper-level bonus room adds 495 square feet of functional living space with 5 ft. knee walls rising up to an 8 ft. ceiling.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

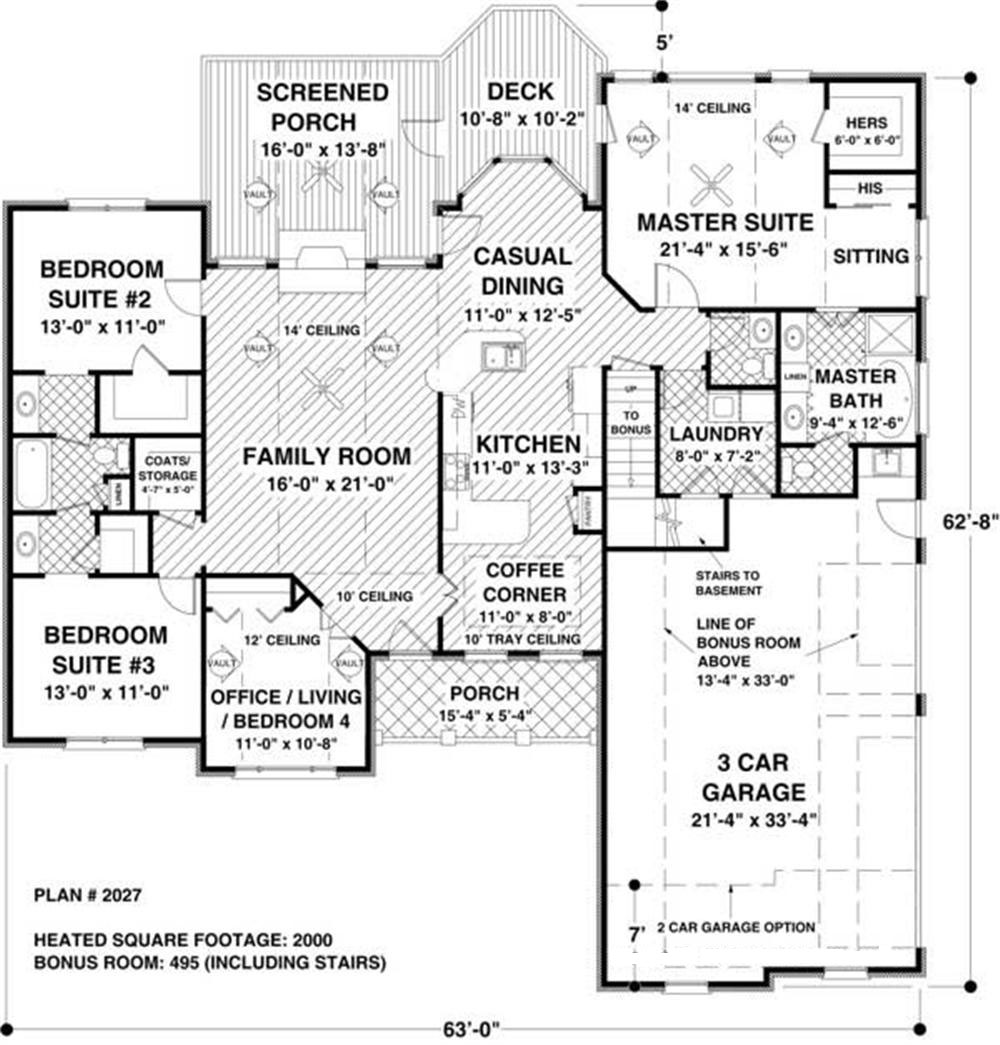

Home Plan: #109-1047 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1047
