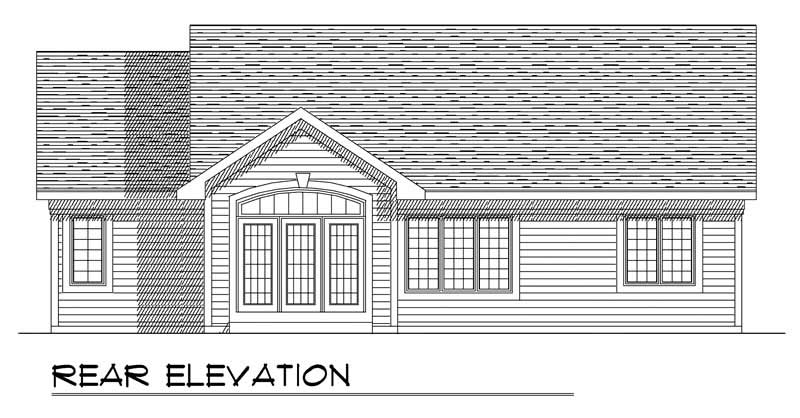

REAR ELEVATION
3-Bedroom, 1451 Sq Ft Ranch Home Plan - 101-1840 - Main Exterior
REAR ELEVATION

About Plan # 101-1840

About Plan # 101-1840

1451 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 48' 0" WIDTH 55' 4" DEPTH 2 GARAGE BAY
Wood and brick adorn the exterior of this cozy three-bedroom charmer. The covered entry opens to a foyer with a vaulted ceiling and a coat closet. From the foyer, you enter the heart of this home---the great room. An impressive vaulted ceiling and a direct-vent corner fireplace highlight this room. The dining room, with its cathedral ceiling, is adjacent to the great room and boasts access to the backyard. It also opens to the kitchen, which features wrap-around counters and plenty of cupboard space. The secluded master suite includes an extra-large walk-in closet and private full bath. Two family bedrooms occupy the opposite side of the house. The bedrooms share a full bath and enjoy plenty of floor space and large wall closets. A two-car garage completes the plan.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

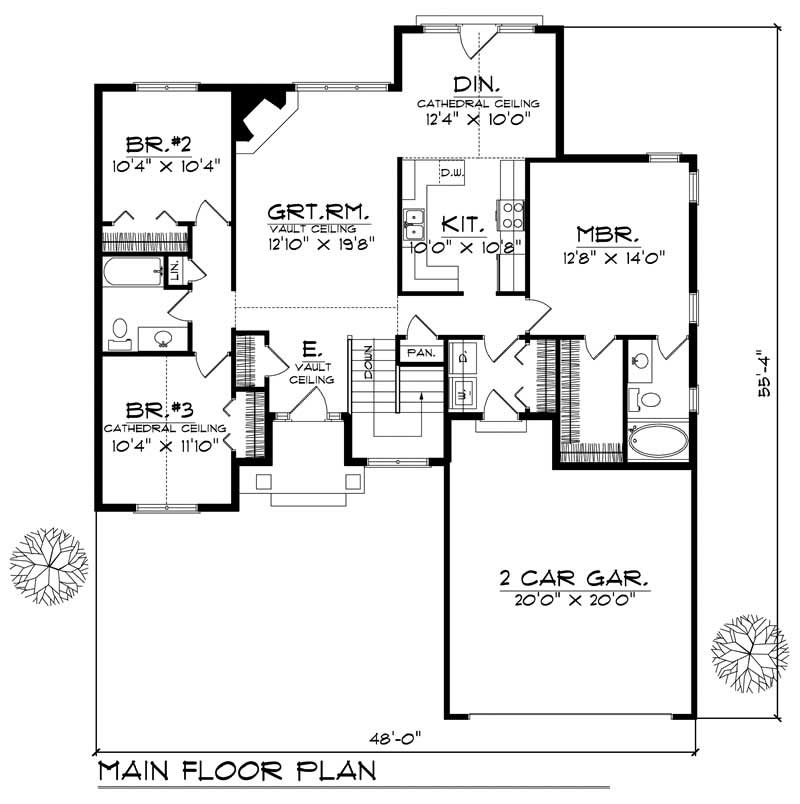

Home Plan: #101-1840 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1840
