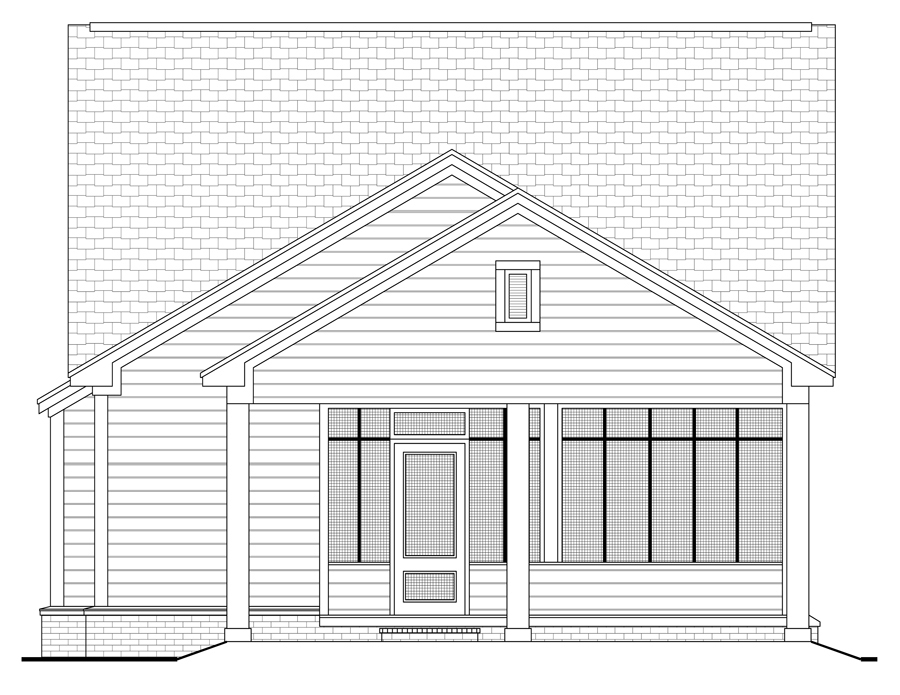

142-1041 rear elevation
142-1041: Home Plan Other Image

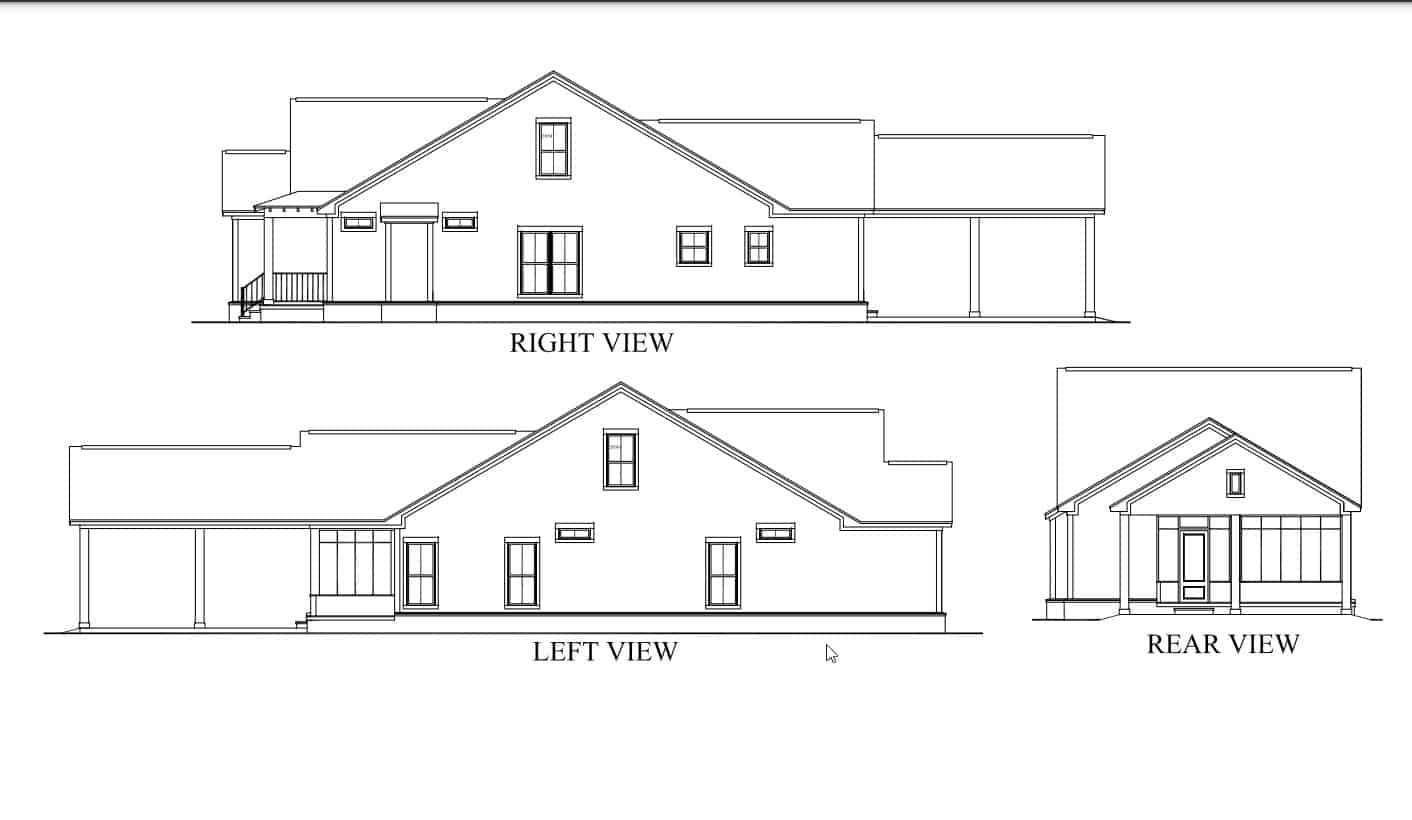

142-1041: Home Other Image-Right Side View
142-1041: Home Other Image-Right Side View
3-Bedroom, 1300 Sq Ft Craftsman House - Plan #142-1041 - Front Exterior
142-1041 rear elevation
142-1041: Home Plan Other Image
142-1041: Home Other Image-Right Side View
142-1041: Home Other Image-Right Side View

About Plan # 142-1041

About Plan # 142-1041

1300 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 28' 8" WIDTH 60' 2" DEPTH 2 GARAGE BAY

Tame those narrow lots with this ingenious and beautiful Craftsman-style house plan, offering spaces and ideas for fine living in even the tightest of footprints. The front porch of this lovely home plan opens straight into the great room, creating a warm and inviting ambiance the moment you step in. This space features a striking fireplace with a built-in entertainment unit above it. Laid out in an open plan, the floor plan makes the most of every square inch of space, weaving the dining area and kitchen into its design. This spacious and flexible social core stretches out from the front of the house plan right up to its rear, where it flows out into the screened porch.

Two of the three bedrooms are paired, with access off the great room in the front, while the master suite lies to the more private rear end of the house plan. The two bedrooms share a full bathroom; the master bedroom has its own spacious bathroom, with a his-and-her vanity unit and a walk-in closet.

Utility and store rooms are tucked away at the back of the house plan, along with an optional carport with rear or side entry.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Dimensional floor plan
  • Exterior views
  • Roof plan
  • Electrical layout
  • Wall section(s)
  • Building section(s)
  • Cabinet elevations

.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

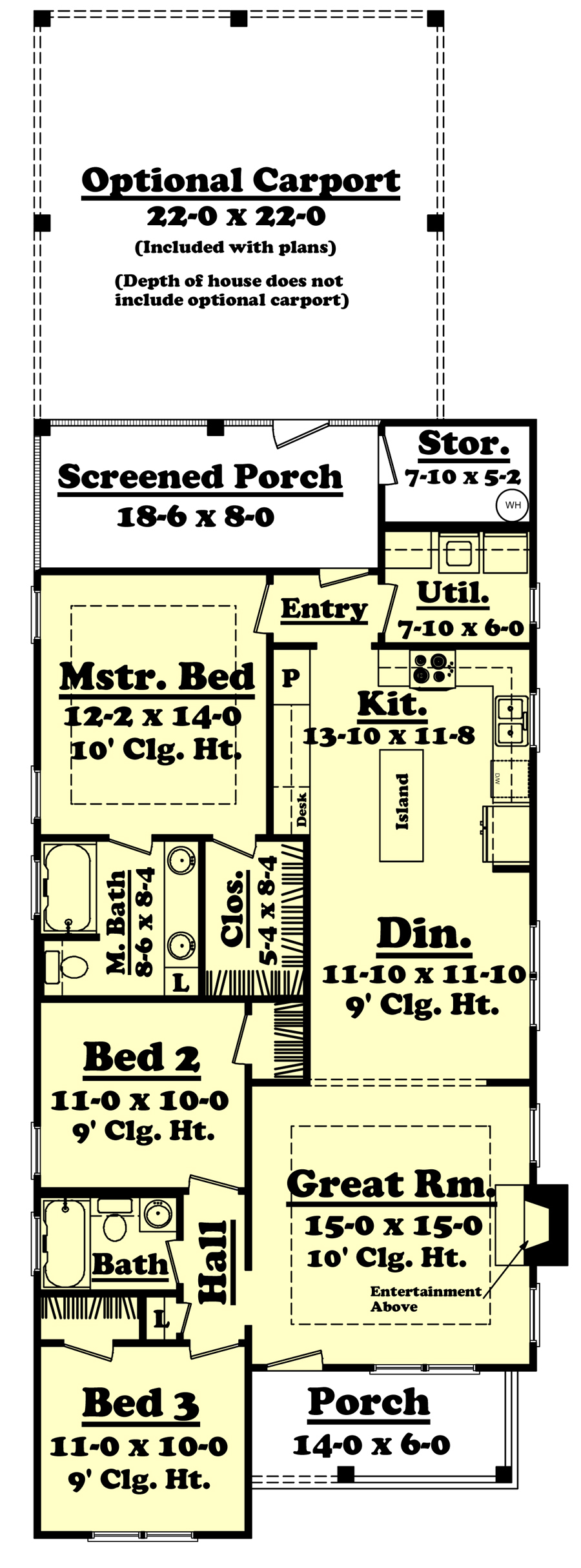

Home Plan: #142-1041 Floor Plan First Story - main floor Floor Plan First Story of Craftsman Plan #142-1041
#142-1041 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #142-1041
Home Plan: #142-1041 Floor Plan First Story - main floor Floor Plan First Story of Craftsman Plan #142-1041
#142-1041 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #142-1041
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1041
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1300
Main Floor:
1300
Unfinished Sq Ft:
Garage :
484
Porch :
232

Dimensions

Width:
28' 8"
Depth:
60' 2"
Ridge Height:
22' 0"

Architectural Styles

Country
Bungalow
Arts and Crafts
Traditional
Craftsman
Small House Plans
Cottage

Exterior Wall Material

Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

7/12
10/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Family Room
Main Level Laundry
Storage
Open Floor Plan

Garage Type

Carport
Rear Entry

Fireplaces

Optional Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Kitchen Island

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

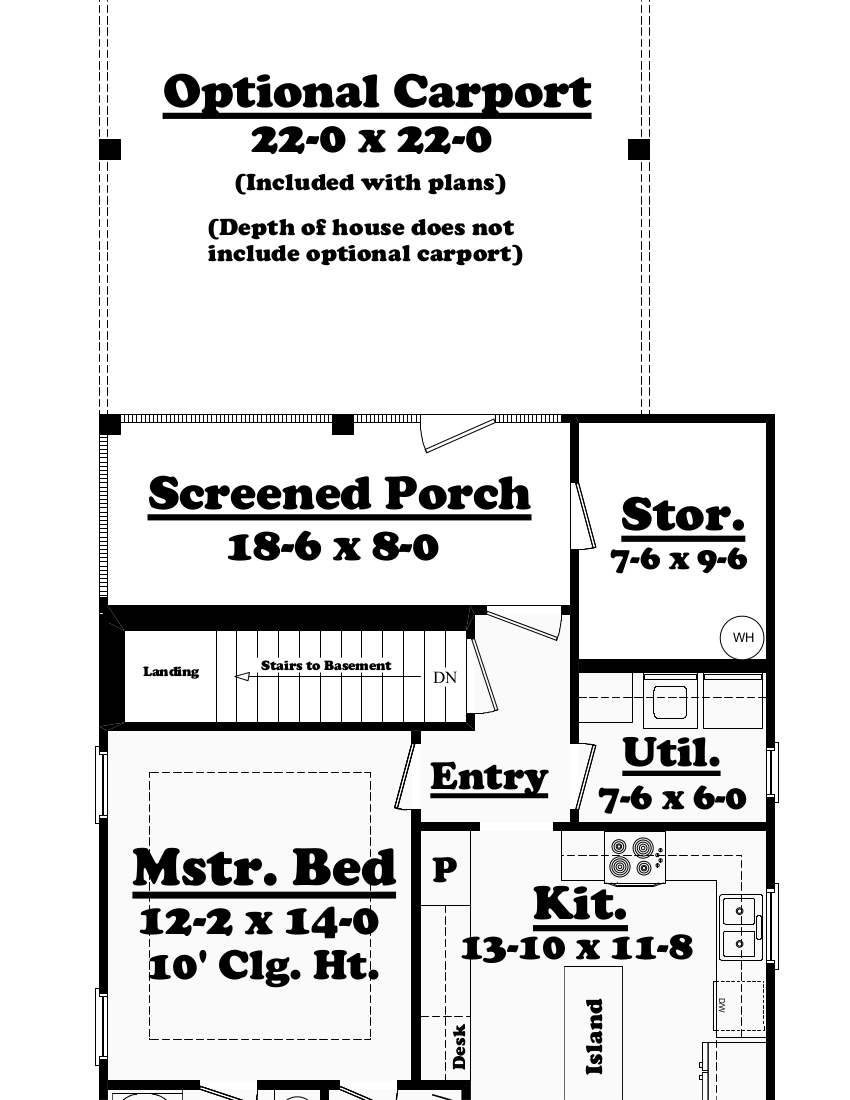

On floor plan with optional basement foundation, depth of the house is increased to 64'-6" to accommodate the stairs to the basement, which are located toward the rear of house between the master bedroom and the porch. The door to the stairs is in the extended entry hall area, while the storage room as been extended on on the opposite side. Please contact us if you would like to see the floor plan layout with the optional basement foundation.

Please note the total unfinished square footage is 763 with the garage.


Please note that the designer's office will be closed from 12/25/2023 to 1/1/2024. All plans placed during this time will be processed after the designer resumes office on 1/2/2024. On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
