4-Bedroom, 4183 Sq Ft Luxury Plan with Main Floor Master
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #126-1685
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
Please Note that the designer's office will be closed for the summer holidays from July 20th to August 2024. This designer's plans take 7-10 additional business days regardless of the type of delivery (express, email, etc). Please keep this in mind when ordering.
BCIN is available for this designer - please submit a modification request for cost and time frame.
PLEASE NOTE! This designer's plans do NOT come with an electrical layout. They will provide an electrical layout for an additional fee.
BCIN is available for this plan - Please submit a modification request for a FREE quote!
House Plan Description

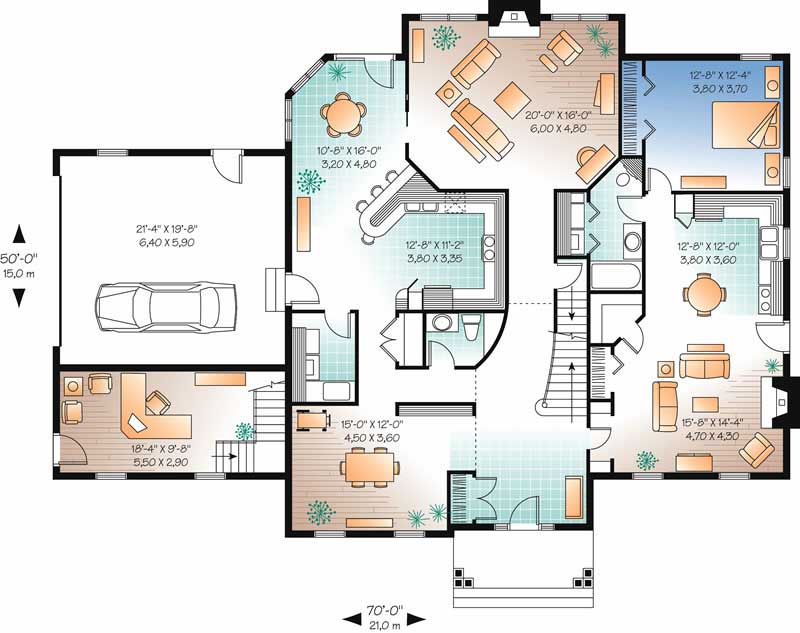

1st Level: Foyer, dining room, family room, kitchen with dinette, laundry facilities, half-bath, home office (242 sq.ft., 21,78 sq.m.), grandparents suite (764 sq.ft., 68,76 sq.m.) including family room, eat-in kitchen, bedroom, bathroom with laundry facilities, storage.2nd Level: Three bedrooms, two bathrooms, boudoir in mezzanine, another office space (442 sq.ft., 39,78 sq.m.) or room to finish. 9 Foot ceiling on all of first level. Bi-generation approach with grandparents suite. Kitchen with superb dinette area in sunroom. Fireplace in each family room. Balcony in bedroom 4. If desired,...
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Exterior elevationsFoundation planMain floor planUpper floor plan (if applicable)Roof planTruss diagrams & building sectionsConstruction detailsTypical wall sectionWhat’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.No ElectricalMechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
