About Plan # 102-1023

About Plan # 102-1023

1291 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 56' 0" WIDTH 37' 0" DEPTH 2 GARAGE BAY

This country ranch house plan  features a tray ceiling in the master bedroom, 3 bedrooms, 2 bathrooms, vaulted ceiling in the Great Room, and a main level laundry.

Each plan set includes the following:

Front Elevation & Cabinet Details
Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Side Elevations
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

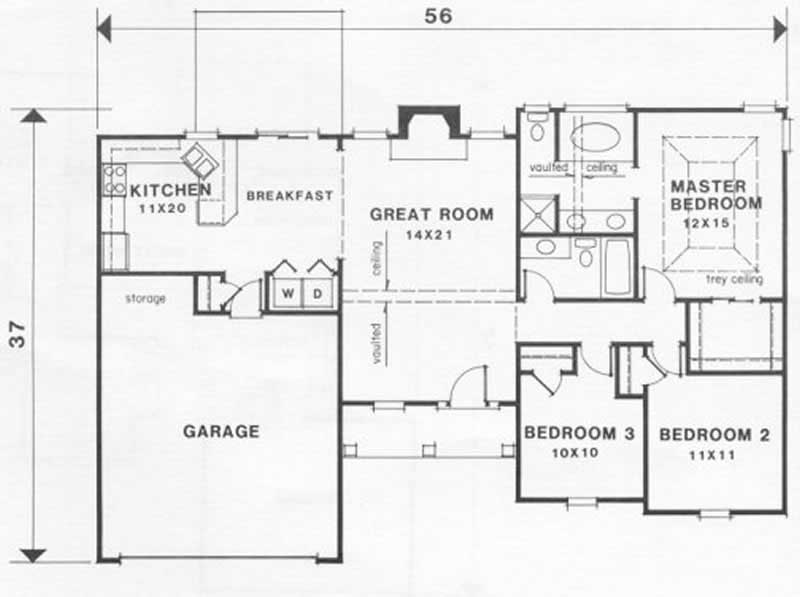

Home Plan: #102-1023 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #102-1023
Home Plan: #102-1023 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #102-1023
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 102-1023
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1291
Main Floor:
1291
Unfinished Sq Ft:

Dimensions

Width:
56' 0"
Depth:
37' 0"

Architectural Styles

Country
Ranch
Traditional
Small House Plans

Roofing Type

Gable

Roof Pitch

10/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry

Garage Type

Attached Garage

Fireplaces

One Fireplace

Porches and Exterior Features

Covered Front Porch

PRICING OPTIONS

Six full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
