Traditional style ranch home (ThePlanCollection: House Plan #142-1004)

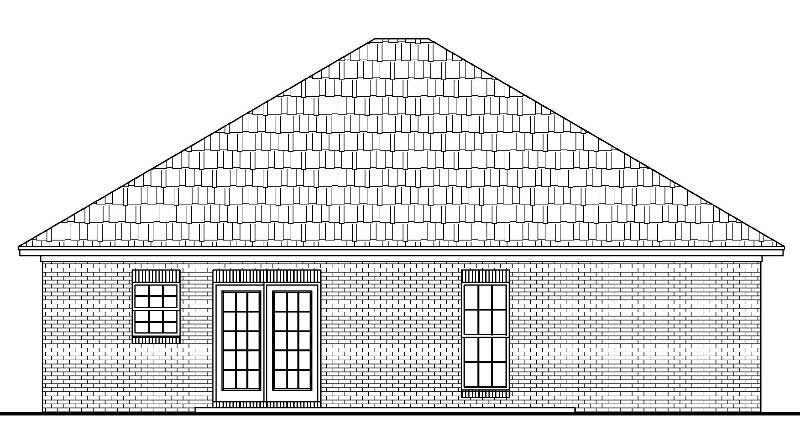

Home Plan Rear Elevation
3-Bedroom, 1200 Sq Ft Small House Plans - 142-1004 - Front Exterior
Home Plan Rear Elevation

About Plan # 142-1004

About Plan # 142-1004

1200 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 40' 0" WIDTH 39' 6" DEPTH 1 GARAGE BAY

This traditional house plan weaves different spaces and activities together to create warm and cozy invitations – for residents and visitors alike. Step in from the covered front porch and carport into the central living room, strategically placed to create a central social node within the small home plan.

The living room offers access to the three bedrooms and flows into a combined dining/kitchen area. Overlooking and spilling out onto the rear patio, the open L-shape kitchen comes with the luxury of a separate pantry. The patio beyond also offers opportunities in outdoor dining when the weather cooperates.

The floor plan’s three bedrooms are laid out in a space efficient L-shape, with the master suite located at the front of the house plan. The other two bedrooms are found along the rear elevation of the home plan, overlooking the patio. They share access to the common split bathroom. The master bathroom comes with a walk-in closet.

The floor plan also features a utilities room and a carport with access to a small storage room.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Dimensional floor plan
  • Exterior views
  • Roof plan
  • Electrical layout
  • Wall section(s)
  • Building section(s)
  • Cabinet elevations

.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

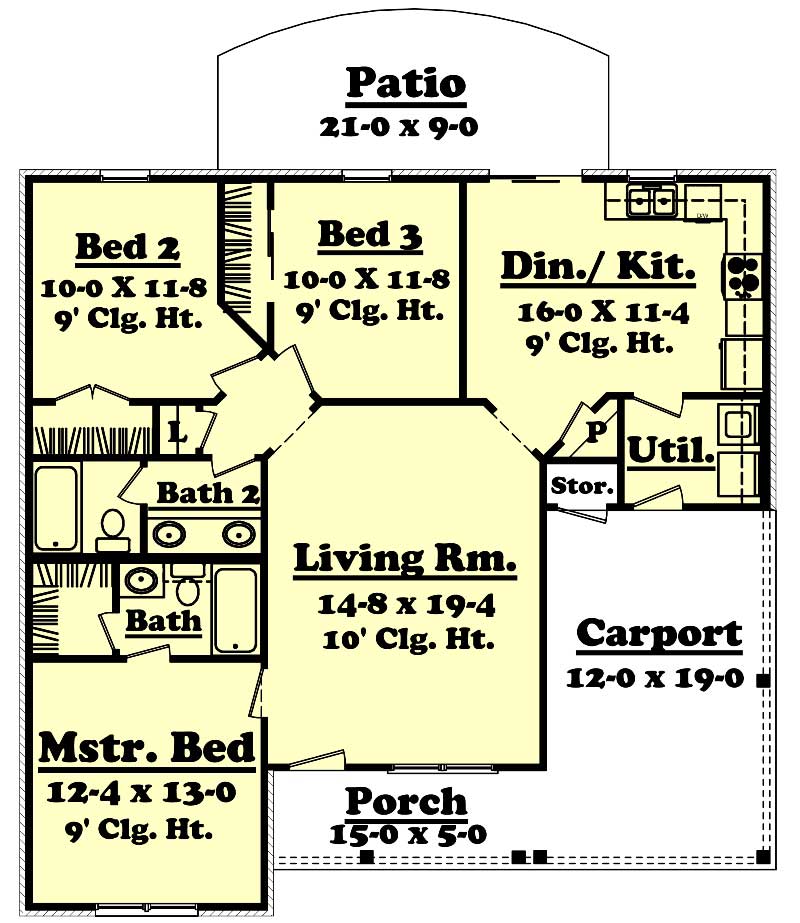

Home Plan: #142-1004 Floor Plan First Story - first story Floor Plan First Story of Small House Plans #142-1004
Home Plan: #142-1004 Floor Plan First Story - first story Floor Plan First Story of Small House Plans #142-1004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1004
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
1

Square Footage

Heated Sq Feet:
1200
Main Floor:
1200
Unfinished Sq Ft:
Garage :
238
Porch :
75

Dimensions

Width:
40' 0"
Depth:
39' 6"
Ridge Height:
39' 6"

Architectural Styles

Country
European
Ranch
Bungalow
Traditional

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry
Split Bathroom
Storage

Garage Type

Carport

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please note that the designer's office will be closed from 12/25/2023 to 1/1/2024. All plans placed during this time will be processed after the designer resumes office on 1/2/2024. On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
