Home > Floor Plans by Styles > European House Plans > Plan Detail for 127-1004
Main image for house plan # 17360

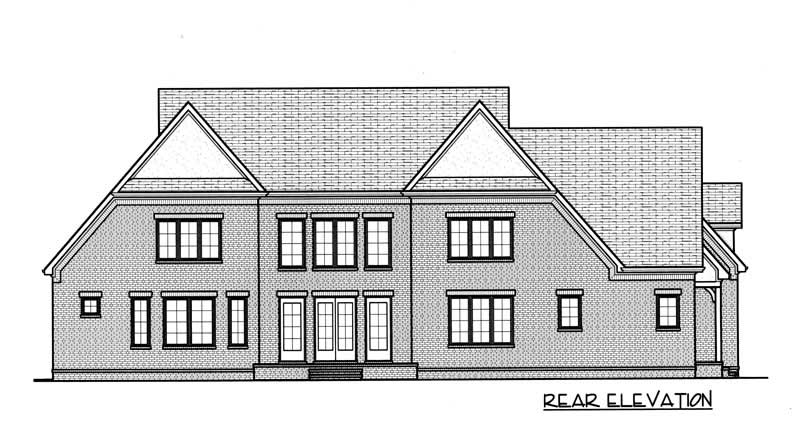

House Plan EDG-4690 Rear Elevation

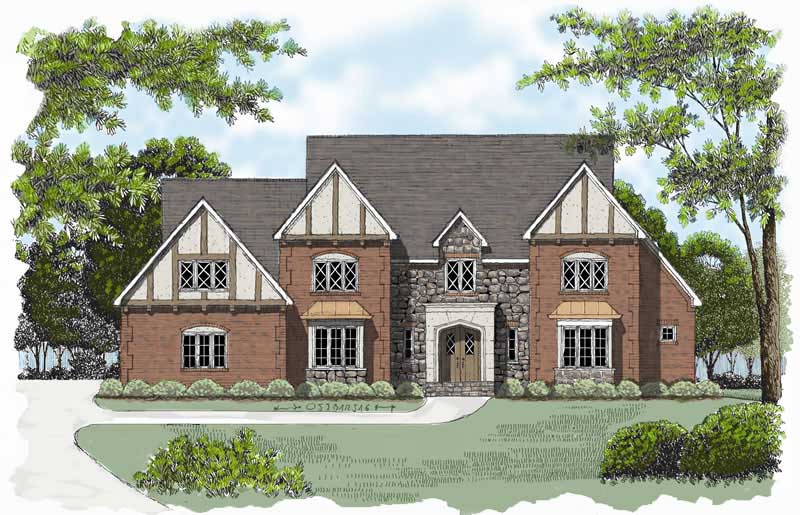

4-Bedroom, 4690 Sq Ft European Home Plan - 127-1004 - Main Exterior
House Plan EDG-4690 Rear Elevation

About Plan # 127-1004

About Plan # 127-1004

4690 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 85' 0" WIDTH 57' 3" DEPTH 3 GARAGE BAY
Home EDG-4690 has a smart floor plan with an open layout. The main floor has a formal room near the entry for dining. The rest of the floor is open with very little dividing the gathering room from the kitchen and dining spaces. All bedrooms are private. The master is spacious and has a large master bath with a deep shower and walk-in closets. The rest of the bedrooms are upstairs. Special features include high ceilings, a large island in the kitchen, big laundry room, an extra space for a home office, nursery, or guest quarters, media room, and a very large bonus room above the garage. See also house plans EDG-4048, EDG-4069, EDG-4450 and EDG-4574. Note: this plan is not available within a 50 mile radius of Charlotte, NC.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

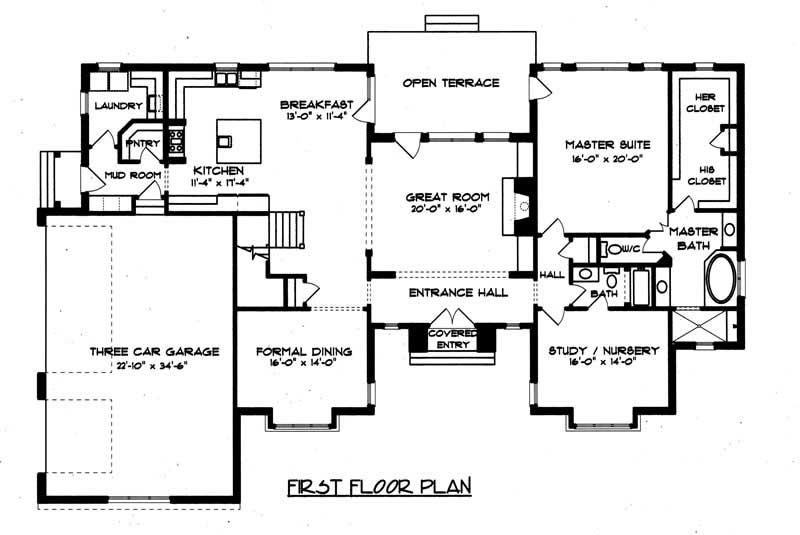

Home Plan: #127-1004 Floor Plan First Story - main Floor Plan First Story of European Plan #127-1004

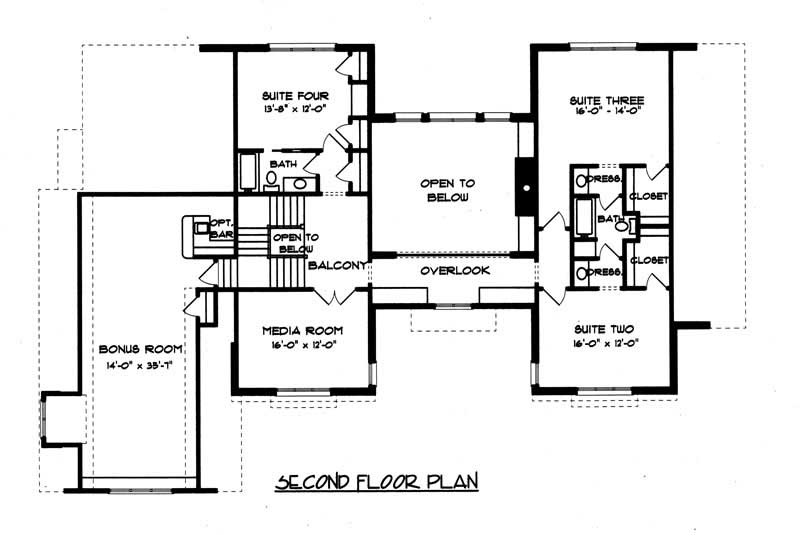

#127-1004 Floor Plan Second Story - second Floor Plan Second Story of European Plan #127-1004
Home Plan: #127-1004 Floor Plan First Story - main Floor Plan First Story of European Plan #127-1004
#127-1004 Floor Plan Second Story - second Floor Plan Second Story of European Plan #127-1004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 127-1004
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
4690
Main Floor:
2584
Upper Floor:
2106
Unfinished Sq Ft:
Garage :
856

Dimensions

Width:
85' 0"
Depth:
57' 3"
Ridge Height:
35'6' 0"

Architectural Styles

European
Tudor

Exterior Wall Material

Brick
Rock/Stone
Wood Siding

Roofing Type

Gable

Roof Pitch

12/12
8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Guest Room
Home Office
Bonus Room
Media Room

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6
2x4

Additional Notes from Designer

NO MODS currently as of 2/9/2021

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
