4-Bedroom, 4060 Sq Ft Craftsman Home Plan - 109-1163 - Main Exterior

About Plan # 109-1163

About Plan # 109-1163

4060 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 68' 0" WIDTH 61' 0" DEPTH 0 GARAGE BAY

This 4,060 sq.ft. European traditional home features a stucco exterior. The dramatic two-story features a curved stairway to the upper level. To the left of the foyer is a 13'x14' study with a fireplace and a bay window. To the right of the foyer is a 14'x16' dining room with box ceiling. Highlighted by triple windows, the 24'x14' living room features a fireplace and a built-in entertainment center. Featured in the 14'x16' kitchen are an angled counter and a center work island. The 10'x14' breakfast room and the 14'x13' sunroom each have multiple windows and ceiling fans. The sunroom also has a door leading onto a deck. Located just off the kitchen area, the laundry room features a linen closet and laundry tub. The master suite measures 15'x16' and has a vaulted ceiling as well as a whirlpool tub and separate shower, his and hers vanities, a linen closet and a large walk-in closet.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

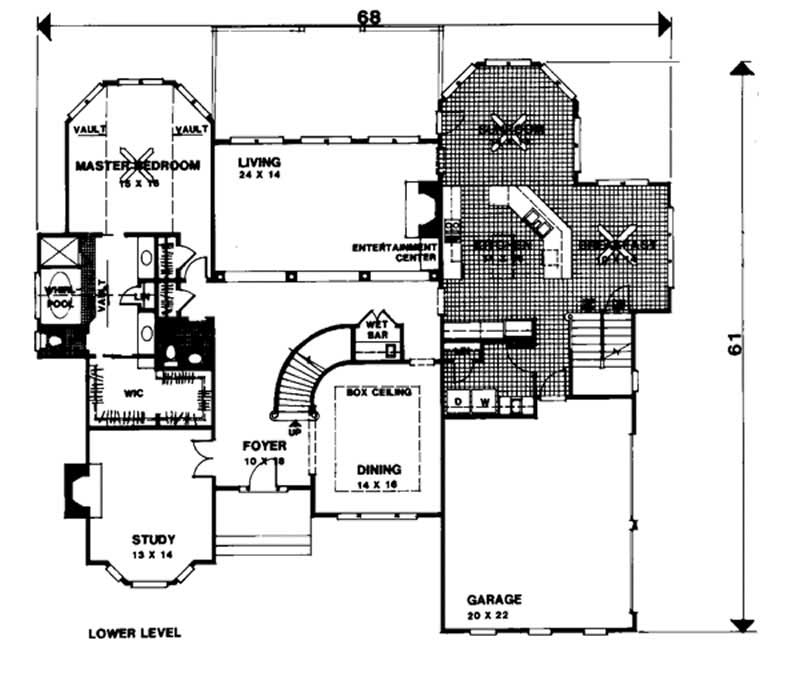

Home Plan: #109-1163 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #109-1163

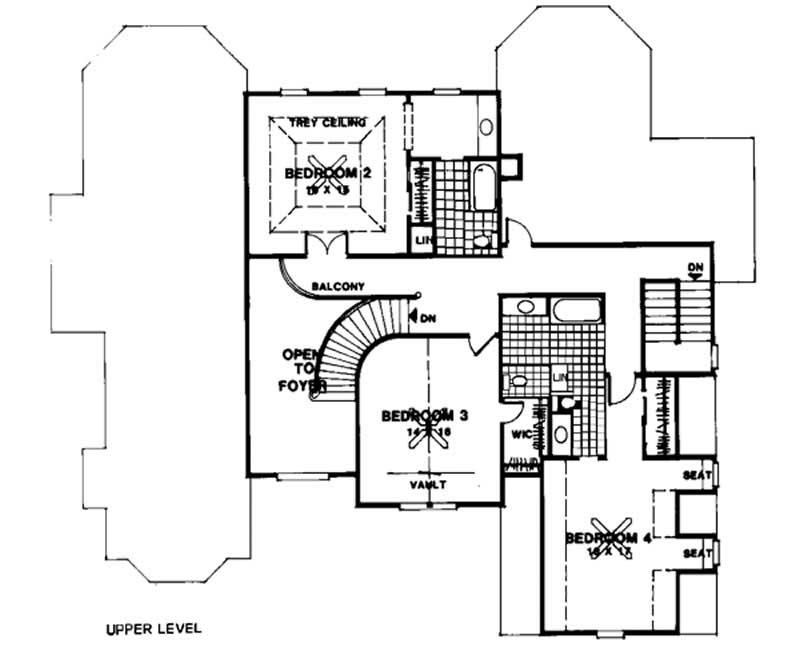

#109-1163 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #109-1163
Home Plan: #109-1163 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #109-1163
#109-1163 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #109-1163
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1163
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
4060
Main Floor:
2562
Upper Floor:
1498
Unfinished Sq Ft:

Dimensions

Width:
68' 0"
Depth:
61' 0"

Architectural Styles

French
Luxury
Craftsman

Exterior Wall Material

Stucco

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Main Level Laundry

Exterior Wall Framing

2x4

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.
