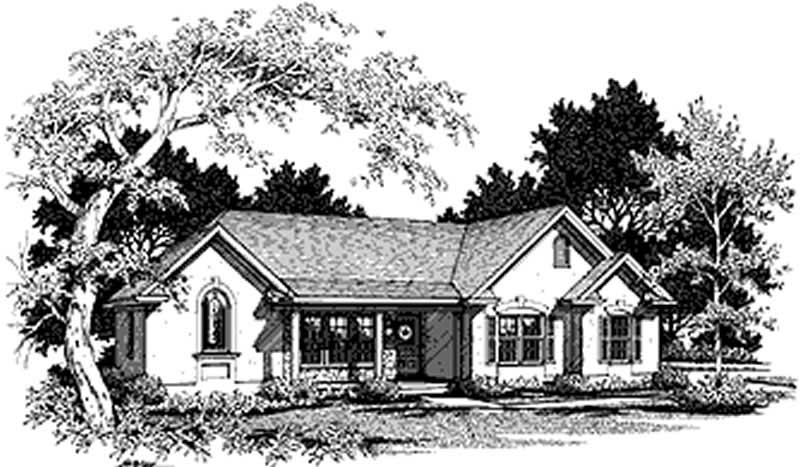

4-Bedroom, 2112 Sq Ft Colonial Home Plan - 109-1172 - Main Exterior

About Plan # 109-1172

About Plan # 109-1172

2112 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 55' 0" WIDTH 70' 0" DEPTH 0 GARAGE BAY
This plan boasts both a living room and a less formal family room, with a fireplace. A vaulted ceiling accents the living/dining area. The kitchen features a center work island with range. Measuring 11'x9', the breakfast nook has double French doors leading onto the deck with corner spa. The three secondary bedrooms, two of which feature corner windows, share a hall bath which also has an outside entrance from the spa area. The master bedroom is isolated from the other bedrooms and features separate his and hers walk-in closets and a large master bath with twin vanities, commode closet and separate garden tub and shower.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

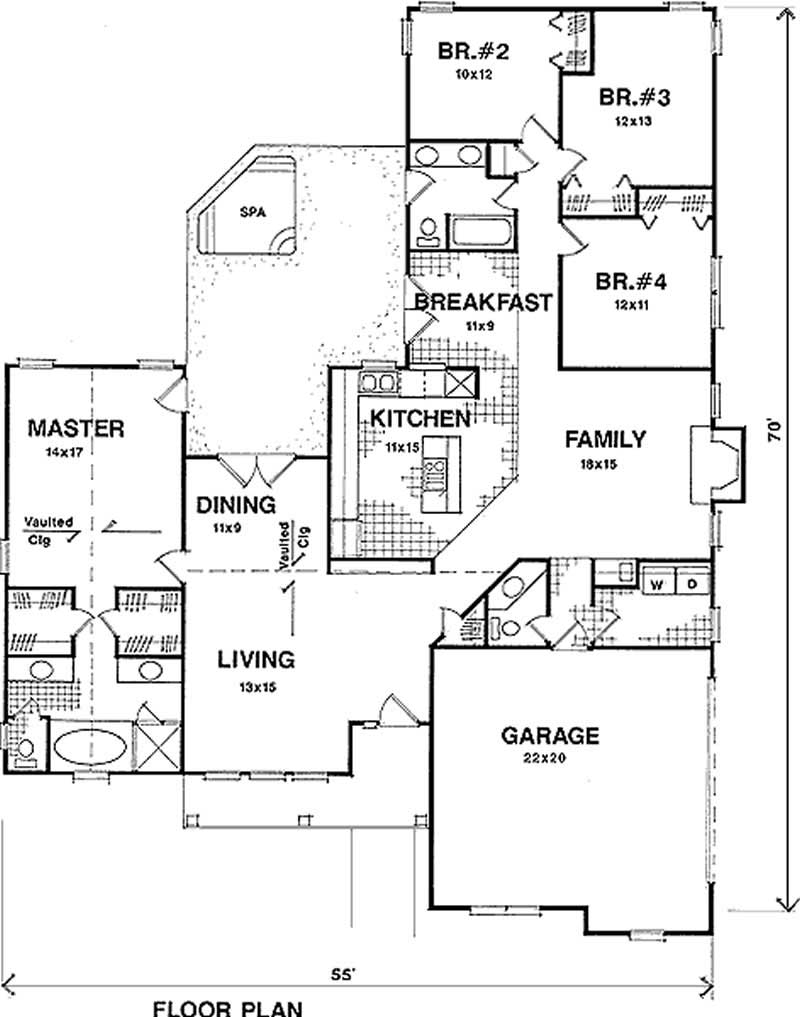

Home Plan: #109-1172 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #109-1172
Home Plan: #109-1172 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #109-1172
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1172
Floors:
1
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2112
Main Floor:
2111
Unfinished Sq Ft:

Dimensions

Width:
55' 0"
Depth:
70' 0"

Architectural Styles

Colonial
Ranch

Exterior Wall Material

Stucco

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Family Room

Exterior Wall Framing

2x4

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
