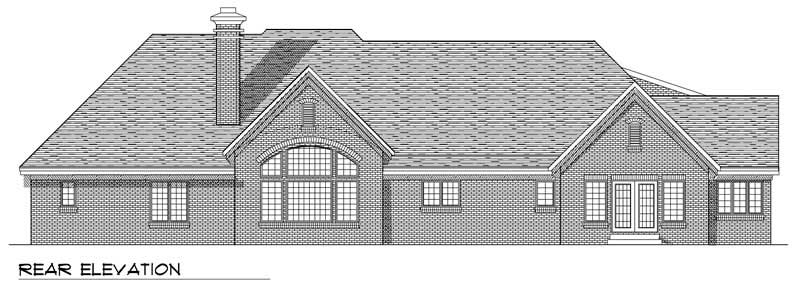

REAR ELEVATION
3-Bedroom, 3406 Sq Ft Ranch House Plan - 101-1340 - Front Exterior
REAR ELEVATION

About Plan # 101-1340

About Plan # 101-1340

3406 SQUARE FEET 3 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 95' 0" WIDTH 73' 8" DEPTH 2 GARAGE BAY
This lovely ranch-style home has a distinctive European feel. There is even a covered side porch perfect for relaxing in the evenings. The foyer offers a unique vaulted barrel ceiling and opens to the dining room, den and great room. The den offers an eleven-foot ceiling, a window seat, and a door that accesses the side porch. Your family will love to gather in the great room, which features a barrel vault ceiling, a fireplace surrounded by built-in cabinets, and a wall of windows that overlook the backyard. The kitchen has plenty of counter space and an eating bar/island and is open to the dining room. The master suite is adorned with art niches, double doors, a fireplace, an immense walk-in closet, and an elegant private bath. Two additional bedrooms have walk-in closets and share a bath with separate private vanities. This plan also offers a laundry room with a walk-in closet, a three-quarters bath, a mudroom with locker storage, and a two-and-a-half car garage with extra storage space.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

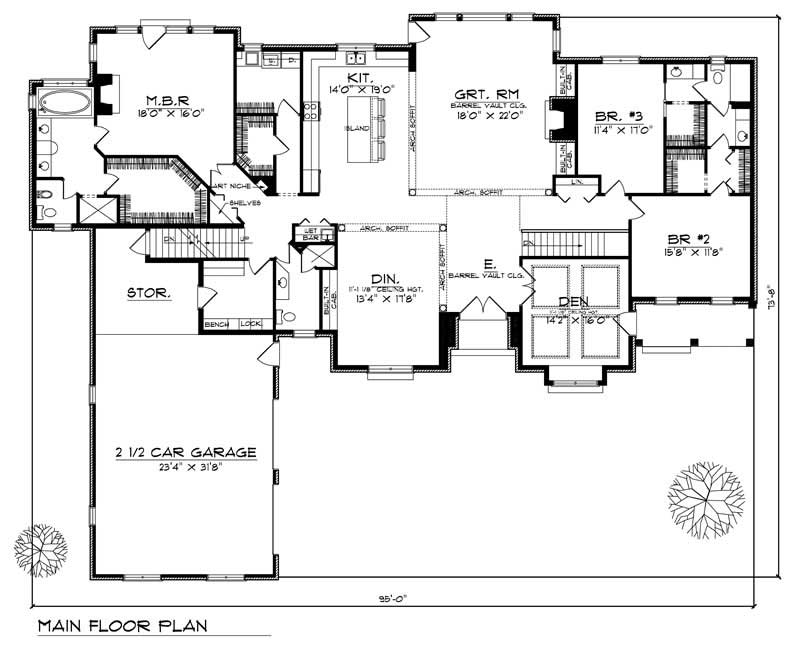

Home Plan: #101-1340 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1340
