5-Bedroom, 4436 Sq Ft Home Plan - 117-1058 - Main Exterior

About Plan # 117-1058

About Plan # 117-1058

4436 SQUARE FEET 5 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 115' 0" WIDTH 89' 0" DEPTH 3 GARAGE BAY

Home Plan The San Leon is a great two story house plan with 4436 total square feet. Some of the special features of the plan include: Luxurious Master Suite, complete with Exercise Room Massive 3-Car Garage and Wrap-Around Lanai with Fireplace Gourmet Kitchen and Curved Bar Impressive Stair Tower Additional Game Room and Living Room

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

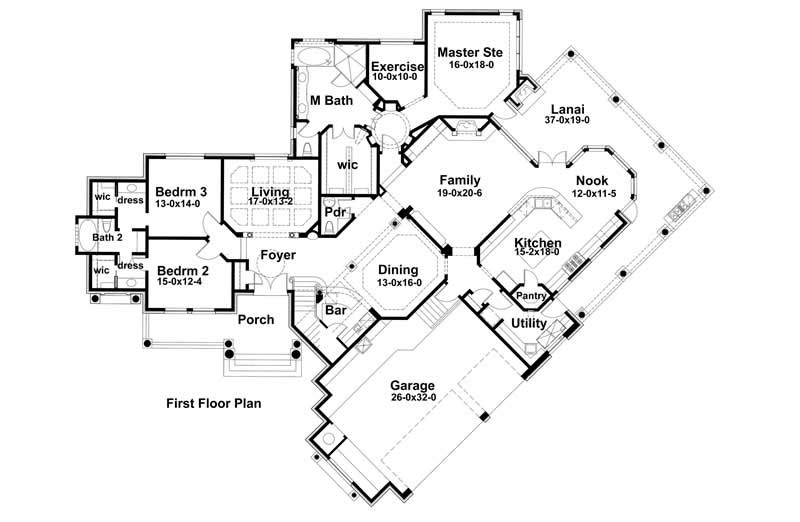

Home Plan: #117-1058 Floor Plan First Story - main Floor Plan First Story of Plan #117-1058
