About Plan # 194-1005

About Plan # 194-1005

1760 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 44' 0" WIDTH 62' 0" DEPTH 2 GARAGE BAY

This lovely Craftsman style home with Country influences (House Plan #194-1005) has 1760 square feet of living space. The 1 story floor plan includes 2 bedrooms.

Each plan set includes the following:

  • Cover Sheet - project statistics, including square footage, 3D images (typically), general notes, and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts, joist direction, and often electrical outlets, switches, and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations, and other general notes.
  • Upper-Level Plan (if needed) - same information as Main Level.
  • Main Level Electrical Plan - electrical outlets, switches, and light locations shown.
  • Upper-Level Electrical Plan (if needed) - electrical outlets, switches, and light locations shown. (sometimes just the lighting is shown)
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions, and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

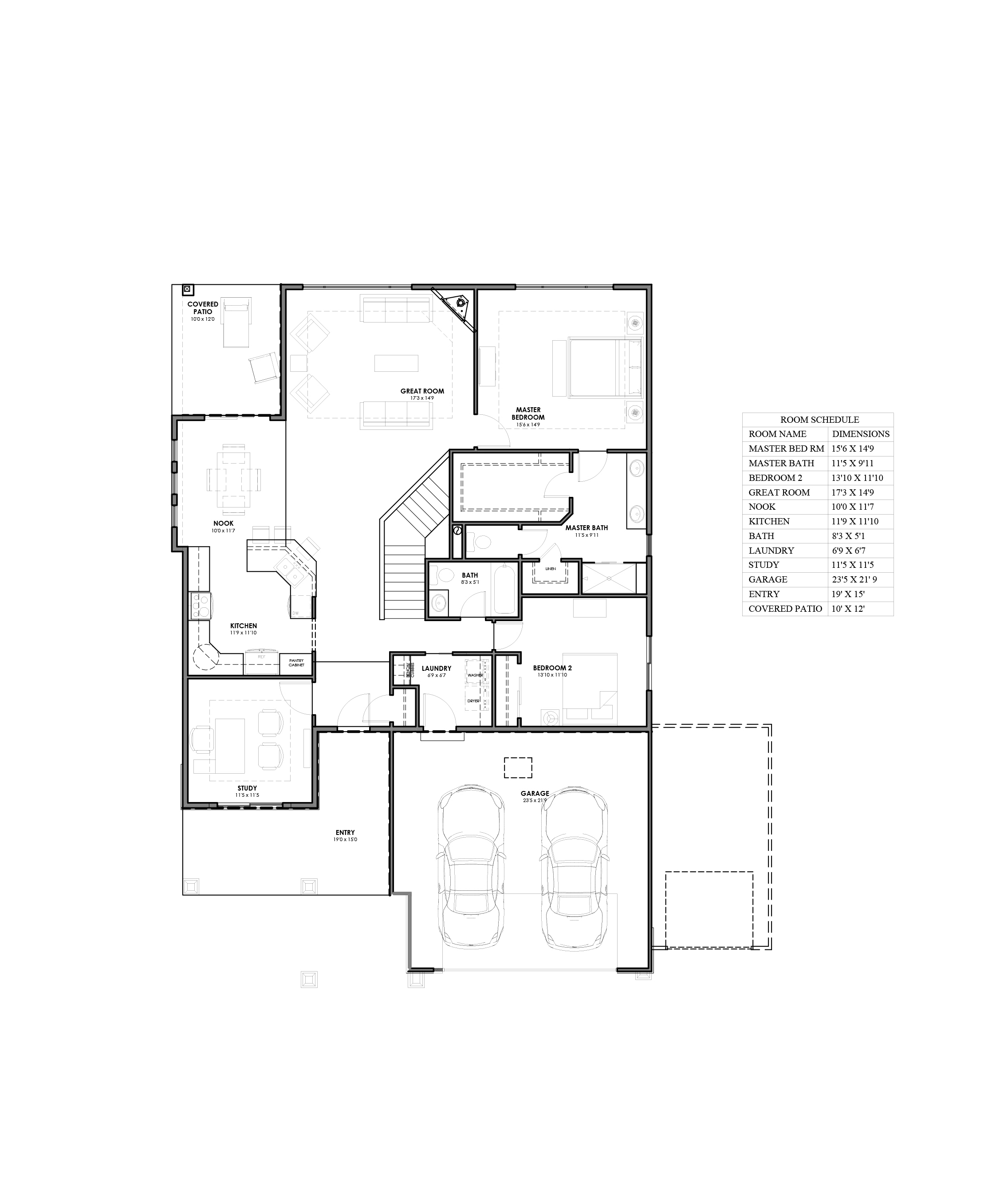

Home Plan: #194-1005 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #194-1005
Home Plan: #194-1005 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #194-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 194-1005
Floors:
1
Bedrooms:
2
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1760
Main Floor:
1760
Unfinished Sq Ft:
Lower Floor:
1650
Garage :
528
Porch :
315

Dimensions

Width:
44' 0"
Depth:
62' 0"

Architectural Styles

Country
Ranch
Southern
Craftsman

Roof Pitch

5/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Library
Split Bathroom
Open Floor Plan

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
