1-Bedroom, 3206 Sq Ft Ranch House Plan - 139-1036 - Front Exterior

About Plan # 139-1036

About Plan # 139-1036

3206 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 97' 4" WIDTH 59' 5" DEPTH 3 GARAGE BAY

Master bedroom is on the first floor Isolated master bedroom This house plan can be modified Full reverse is available on this home plan Material list is not available Specifications available for this plan Baby blues not available Vellum available for this plan CAD file not available Full reverse available for this plan 2x4 exterior wall

Each plan set includes the following:

  • Foundation Plan
  • Floor Plan
  • Window Listing
  • Square Footage Breakdown
  • Electrical Layout
  • Elevations
  • Building/Cross Sections
  • Roof Layout (Birdseye View)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

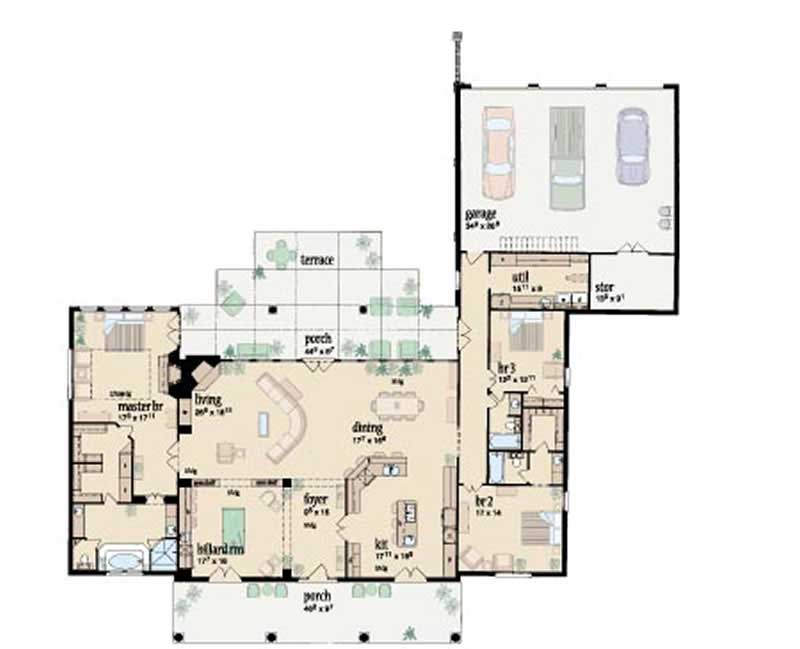

Home Plan: #139-1036 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #139-1036
Home Plan: #139-1036 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #139-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 139-1036
Floors:
1
Bedrooms:
3
Full Baths:
3
Garage :
3

Square Footage

Heated Sq Feet:
3206
Main Floor:
3206
Unfinished Sq Ft:
Garage :
1054

Dimensions

Width:
97' 4"
Depth:
59' 5"
Ridge Height:
24' 7"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Brick

Roofing Type

Hip

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Special Feature

Main Level Laundry
Split Bathroom
Storage

Garage Type

Attached Garage

Fireplaces

One Fireplace

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Fireplace in Master
Master Bathroom
Walk In Closet
Split Master Bedroom
