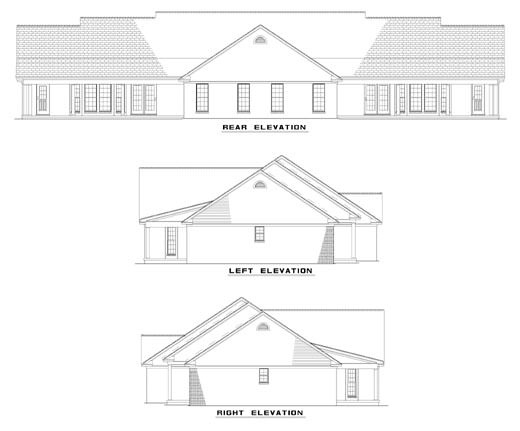

Elevations- Rear and Sides
Duplex with 3 Bedrooms, 1525 Sq Ft Per Unit Home Plan - 153-1647 - Main Exterior
Elevations- Rear and Sides

About Plan # 153-1647

About Plan # 153-1647

1 FLOOR 103' 0" WIDTH 49' 10" DEPTH 2 GARAGE BAY

This amazing home is so wonderful, it is designed for two families! Each unit in this luxurious duplex is centered around a spacious Great Room with a boxed ceiling, fireplace, and access to a large covered rear porch. Other notable features include:

  • The dining area and kitchen are only steps away from the Great Room, creating a terrific space for entertaining or just relaxing.
  • Each unit has three bedrooms. Bedroom #2 and #3 share a hallway bathroom.
  • The master suite is impressive with a boxed ceiling, a master bath with two sink vanities, and his-and-her walk-in closets.
  • The 2-car garage is accessed through the laundry room/drop zone.

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

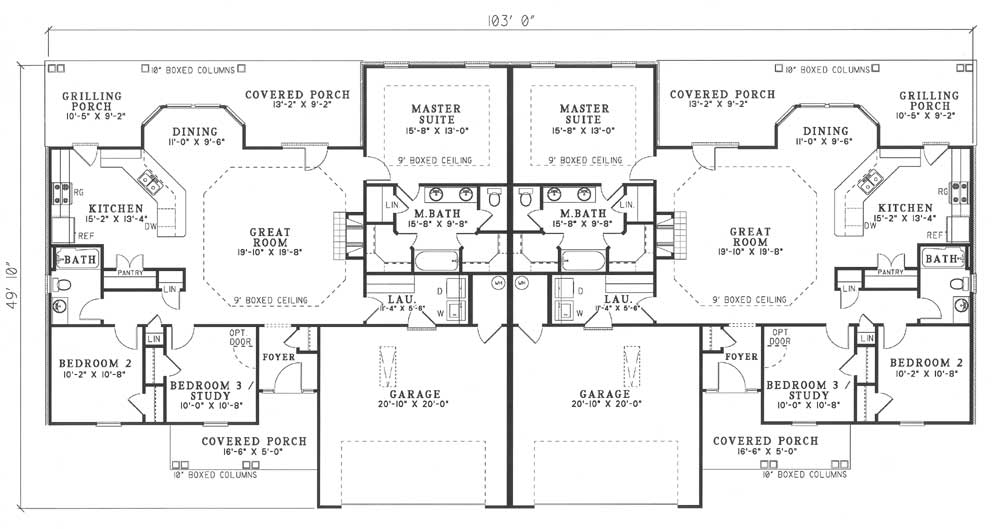

Home Plan: #153-1647 Floor Plan First Story - main level Floor Plan Main Level of Multi-Unit Plan #153-1647
