3-Bedroom Per Unit, Traditional Duplex Plan for Narrow Lot
Related House Plans
| 1169 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 37' 0" WIDTH | 72' 7" DEPTH | 0 GARAGE BAY |

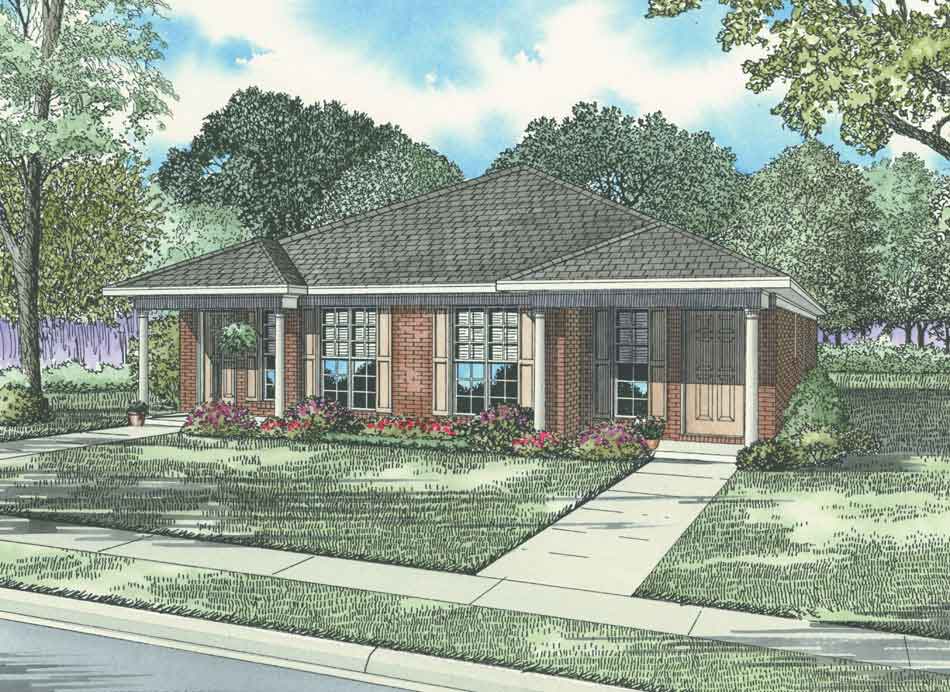

This attractive duplex plan really raises the bar when it comes to multi-family homes! Its traditional ranch design and cozy front porch blend well in almost any neighborhood. Each unit includes a roomy Great Room with an alcove area for sitting by the windows, an efficiently designed eat-in kitchen, three bedrooms, and two full baths. The third bedroom is the master suite with a bath, walk-in closet, windows, and door looking out to the rear patio. A clever design element is the storage closet off the patio which divides each unit and provides additional privacy. Each unit has 1169 square feet of living space.
For a similar Multi-Unit House Plan, check out this multi-family plan
For a similar Multi-Unit House Plan, check out this multi-unit floor plan
For a similar Ranch House Plan, check out this ranch home plan
Each plan set includes the following:
-
floorplan
-

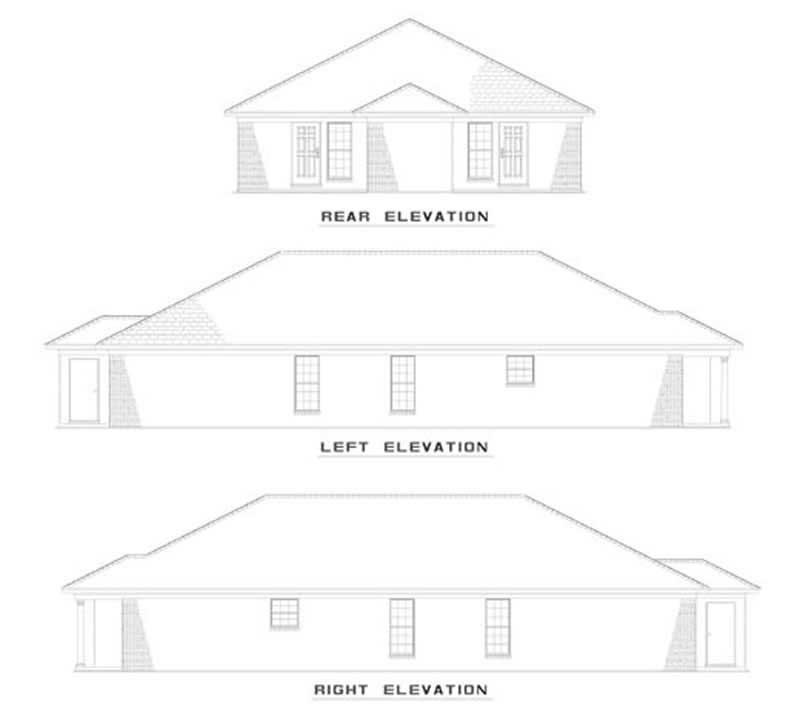

4 side exterior elevations,
-
electrical plan,
-
birds-eye view of the roof,
-
foundation plan,
-
and some miscellaneous details.
Please Note
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

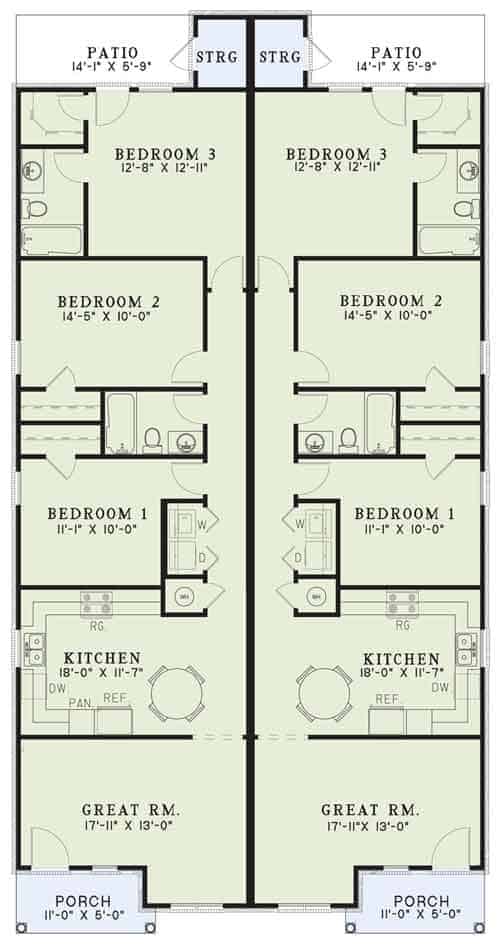

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Roofing Type
Roof Pitch
Ceiling Height
Special Feature
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
Please note:
Each unit has 1169 Living square feet.
Each porch has unfinished square feet of 52
Each storage section unfinished square feet of 26
PLEASE NOTE: The office will be closed Tuesday July 4, 2022 so no orders will be processed until Wednesday July 5th. Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available.
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
