About Plan # 160-1018

About Plan # 160-1018

1741 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 56' 6" DEPTH 0 GARAGE BAY

The Great room in this compact narrow lot cottage design boasts: a versatile floor plan, a wood stove, partially vaulted ceilings, window seats, access through French doors to a partially covered wrap around sundeck, access to a side screened porch via folding French doors, all while being open to the adjacent kitchen . An abundance of windows and glass door openings transforms this expansive space into a truly inviting ever evolving multipurpose environment. The vaulted second floor is dedicated to two bedrooms, one a massive open studio bedroom with access to a large private covered balcony. The ceilings on this floor level flatten out at a voluminous ten foot height. The daylight basement plan is a totally open unfinished space awaiting your personal development, whether it be additional bedrooms, recreational space, home theatre media room or hobby / workshop. The separate private entrance easily transforms this level into an in-law suite, a home office or business space.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

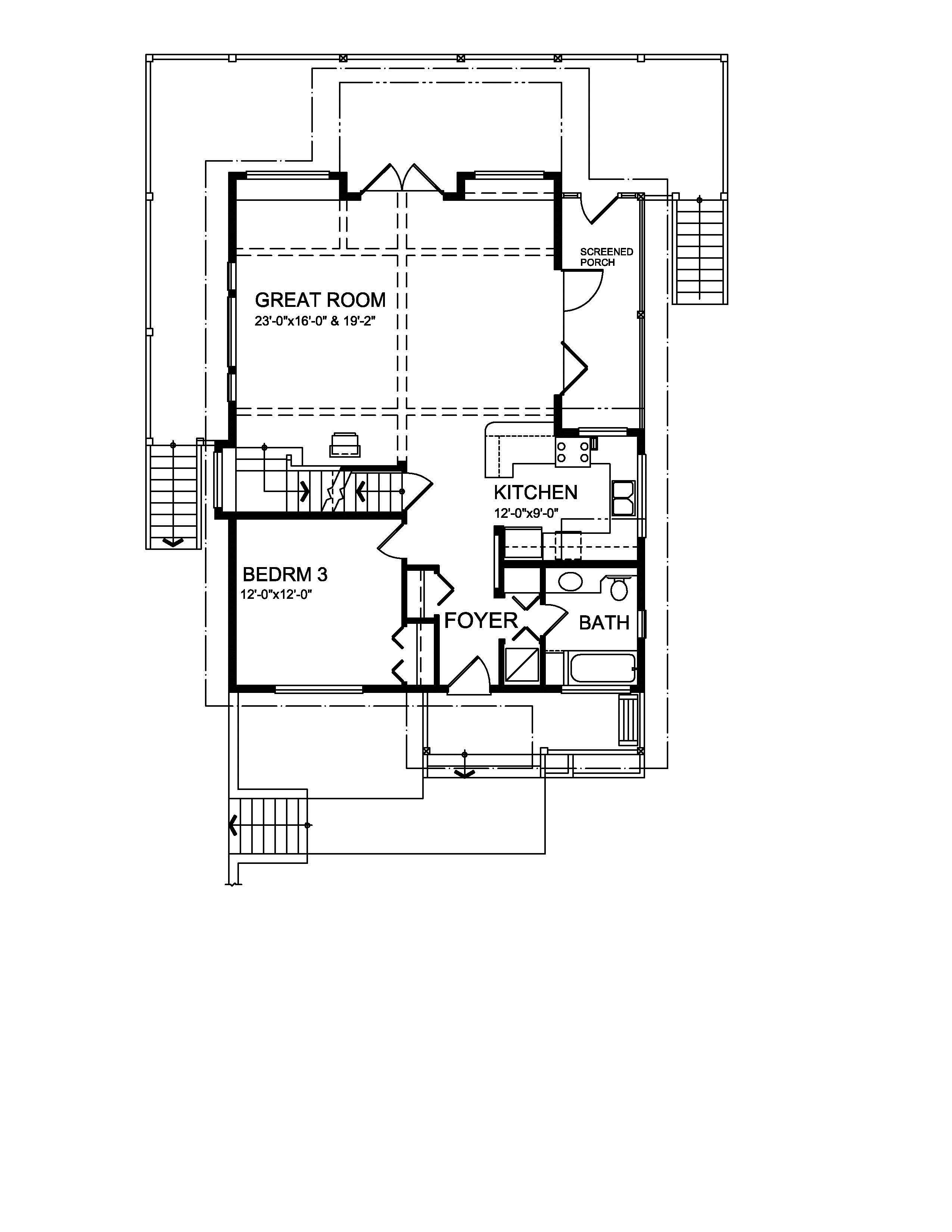

Home Plan: #160-1018 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #160-1018

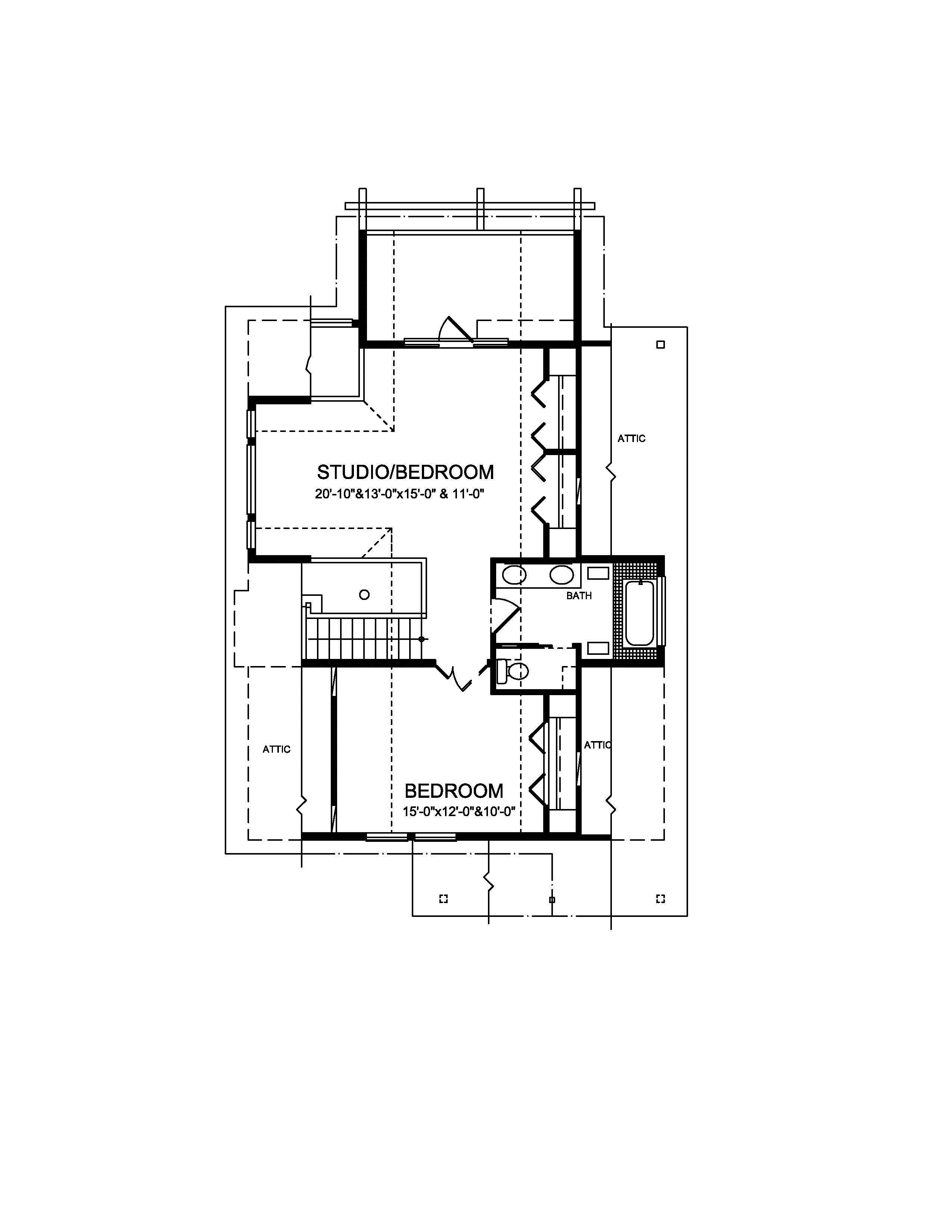

#160-1018 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #160-1018
Home Plan: #160-1018 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #160-1018
#160-1018 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #160-1018
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1018
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1741
Main Floor:
978
Upper Floor:
763
Unfinished Sq Ft:

Dimensions

Width:
42' 0"
Depth:
56' 6"
Ridge Height:
25' 0"

Architectural Styles

Vacation Homes
Cabin
Craftsman

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Special Feature

Main Level Laundry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Wrap Around Porch
Screened Porch/Sunroom

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.
