Front view of Duplex/Multi-Family home (ThePlanCollection: House Plan #145-1513)

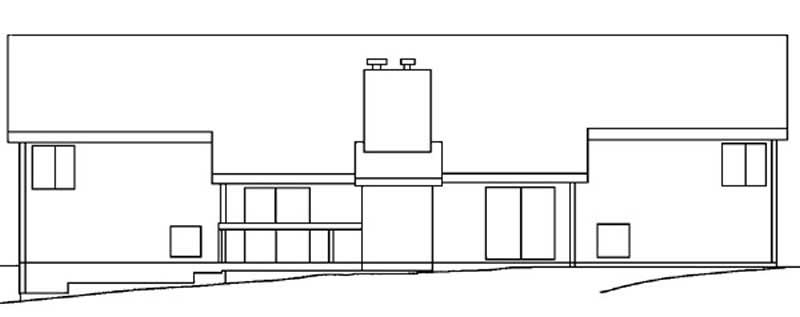

Home Plan Rear Elevation

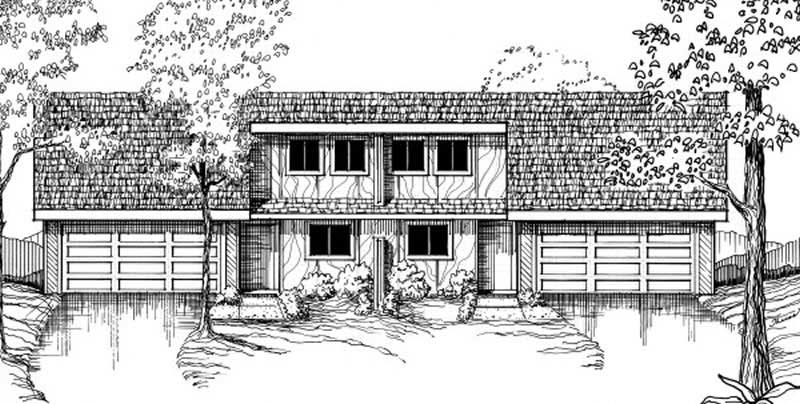

4 Bedrooms, 2644 Sq Ft Duplex Plan- 145-1513 - Front Exterior
Home Plan Rear Elevation

About Plan # 145-1513

About Plan # 145-1513

2644 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 68' 0" WIDTH 50' 0" DEPTH 2 GARAGE BAY
This contemporary duplex has a total of 2644 living sq ft. The two-story floor plan includes 2 bedrooms and 2 baths per unit plus a loft space.

Each plan set includes the following:

  • Floor plans
  • Foundations
  • Elevations
  • Framing
  • Electrical
  • Roofing
  • Detailed Construction Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

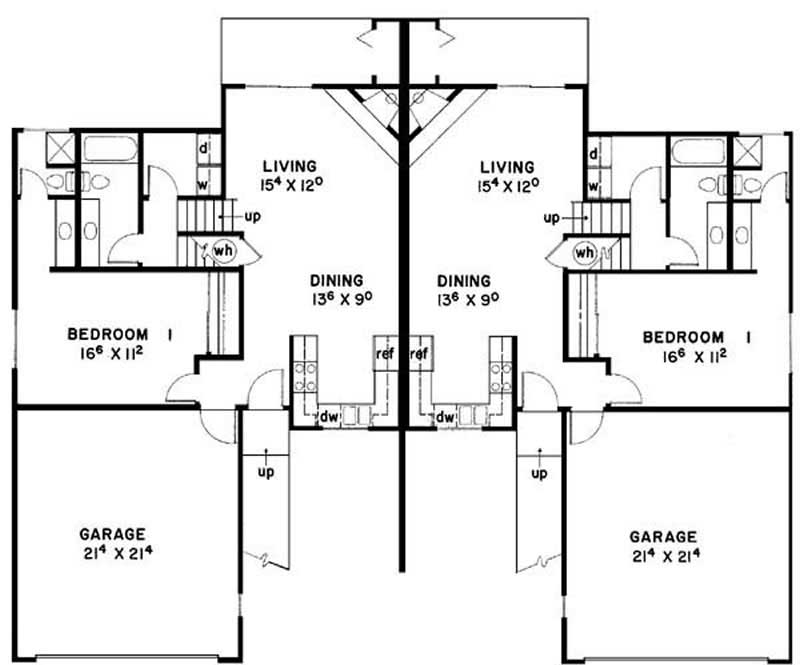

Home Plan: #145-1513 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #145-1513

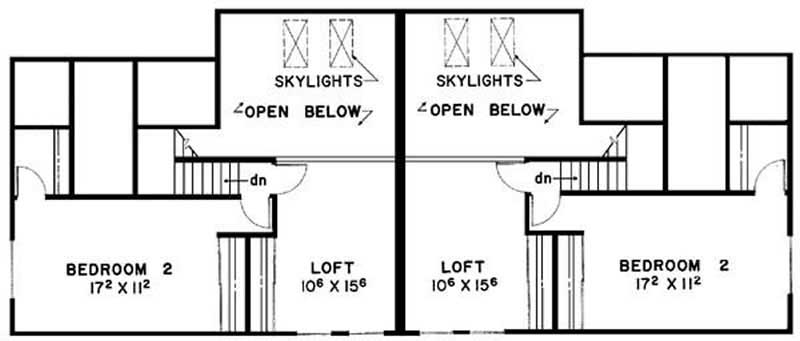

#145-1513 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #145-1513
Home Plan: #145-1513 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #145-1513
#145-1513 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #145-1513
