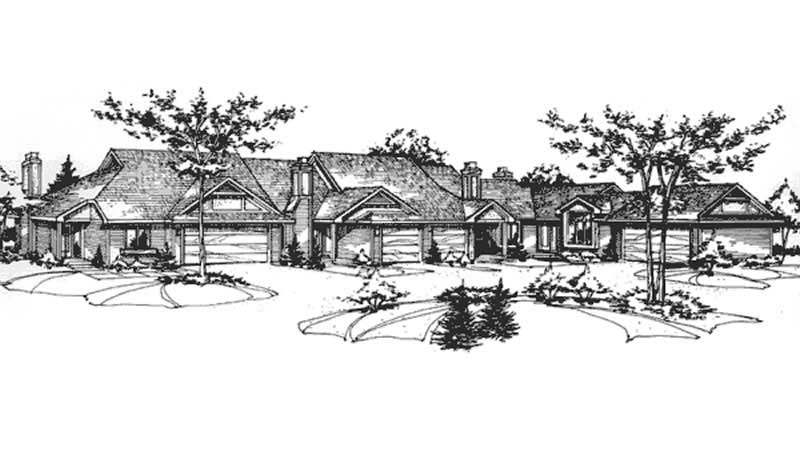

Front view of Duplex/Multi-Unit home (ThePlanCollection: House Plan #146-2029)
1-Bedroom, 1101 Sq Ft Duplex/Multi-Unit House Plan - 146-2029 - Front Exterior

About Plan # 146-2029

About Plan # 146-2029

1101 SQUARE FEET 1 BEDROOMS 1 FULL BATH 1 HALF BATH
2 FLOOR 125' 0" WIDTH 78' 0" DEPTH 1 GARAGE BAY
These clustered town homes feature a unique corner design and three distinct floor plans. Unit A boasts dual master bedrooms, two full baths, main-floor laundry facilities, and a vaulted Great Room complete with a warming fireplace. Upstairs, Unit B offers a master bedroom and a second loft/bedroom. Downstairs, laundry facilities, a large vaulted Great Room with a fireplace, and a dining area with views of the patio will be found. Unit C stretches around the corner in a classic two-bedroom ranch design.

Each plan set includes the following:



Foundation plan

Exterior elevations

Floor plans

Cross-sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

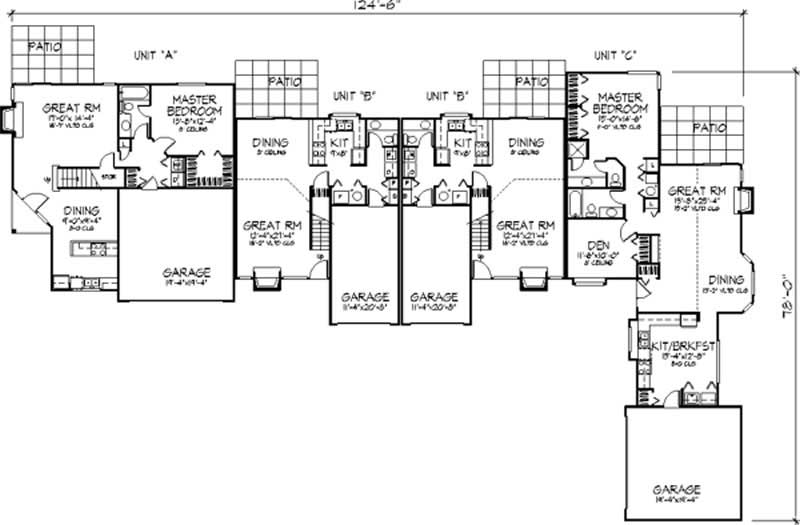

Home Plan: #146-2029 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2029

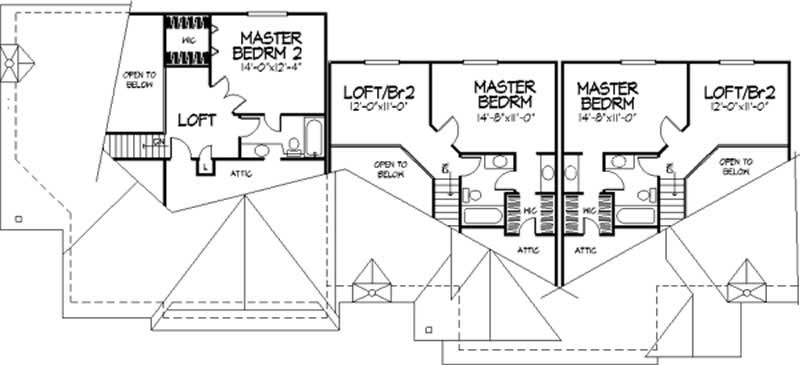

#146-2029 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #146-2029
Home Plan: #146-2029 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2029
#146-2029 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #146-2029
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 146-2029
Floors:
2
Bedrooms:
1
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1101
Main Floor:
636
Upper Floor:
465
Unfinished Sq Ft:

Dimensions

Width:
125' 0"
Depth:
78' 0"
Ridge Height:
22-0' 0"

Architectural Styles

Duplex/Multi-Unit

Exterior Wall Material

Wood Siding

Roofing Type

Hip

Special Feature

Fireplace

Garage Type

Attached Garage
Front Entry

Fireplaces

Four Fireplaces

Exterior Wall Framing

2x4
