Home > Floor Plans by Styles > Craftsman House Plans > Plan Detail for 127-1000
Main image for house plan # 19823

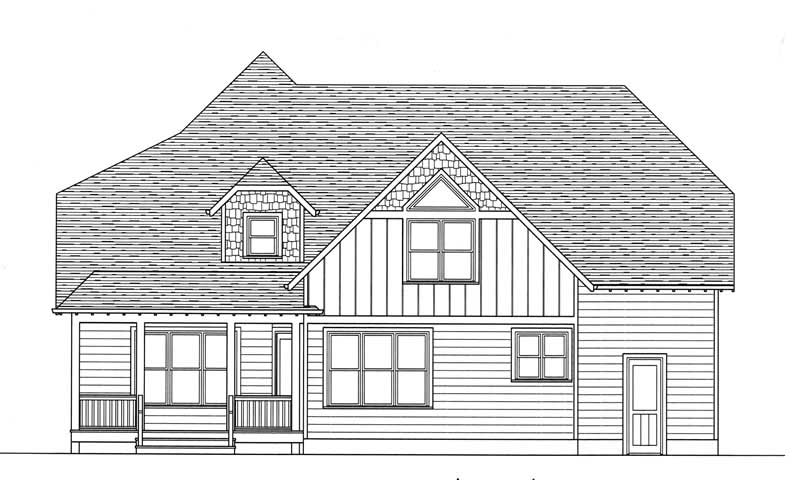

House Plan EDG-2477 Rear Elevation

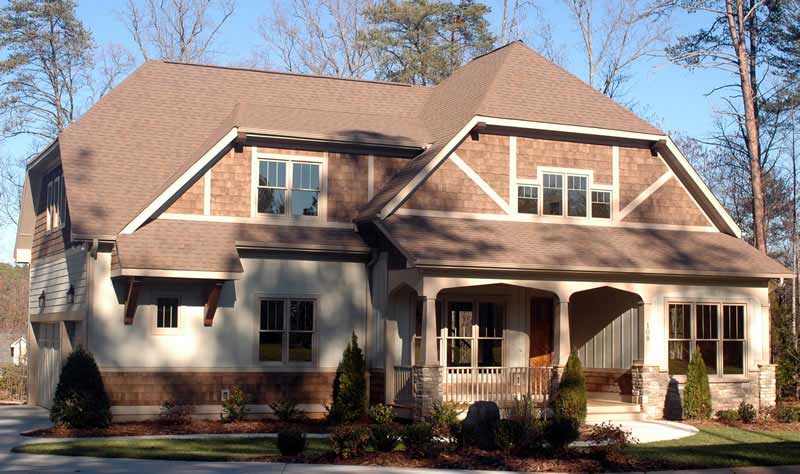

4-Bedroom, 2877 Sq Ft Craftsman House Plan - 127-1000 - Front Exterior
House Plan EDG-2477 Rear Elevation

About Plan # 127-1000

About Plan # 127-1000

2877 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 55' 0" WIDTH 53' 4" DEPTH 3 GARAGE BAY
House Plan EDG-2877 has a floor plan with formal and informal areas, making it perfect for entertaining guests. Towards the front, there is a formal dining room and a study. At the rear, the floor plan opens up into a great room, kitchen, and dining nook. The rear corner features a small corner office and a pantry, which could be modified to be a large office or a large pantry. The upper floor houses the bedrooms, the laundry, and a bonus room. The secondary bedrooms both have immediate access to a bathroom. The master suite is large with a vaulted ceiling, large walk-in closet, and a luxurious bath.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

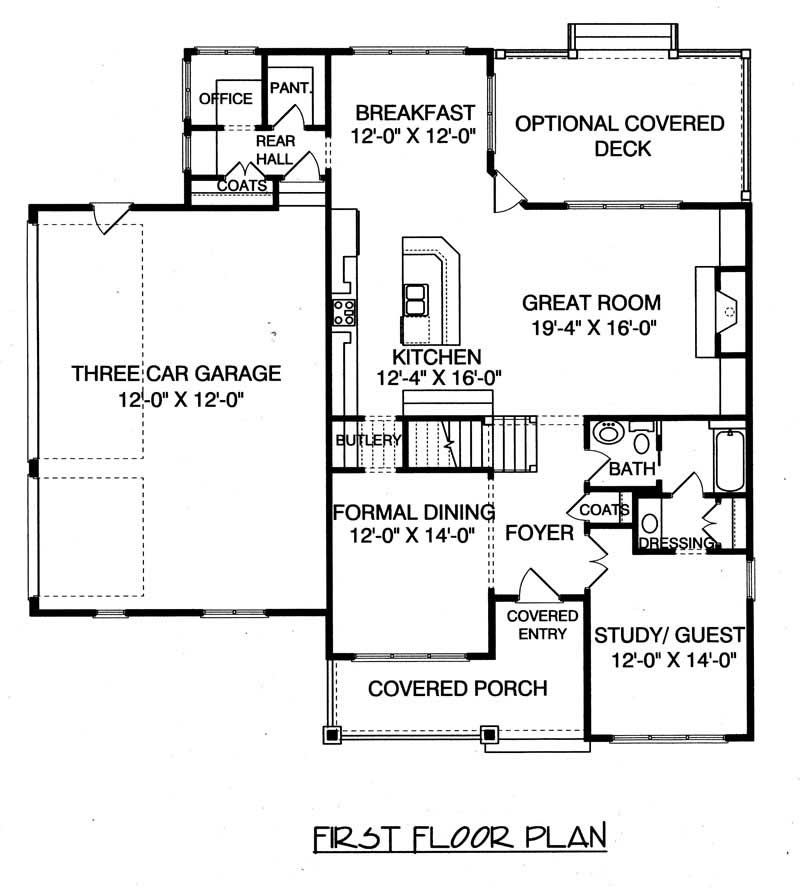

Home Plan: #127-1000 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #127-1000

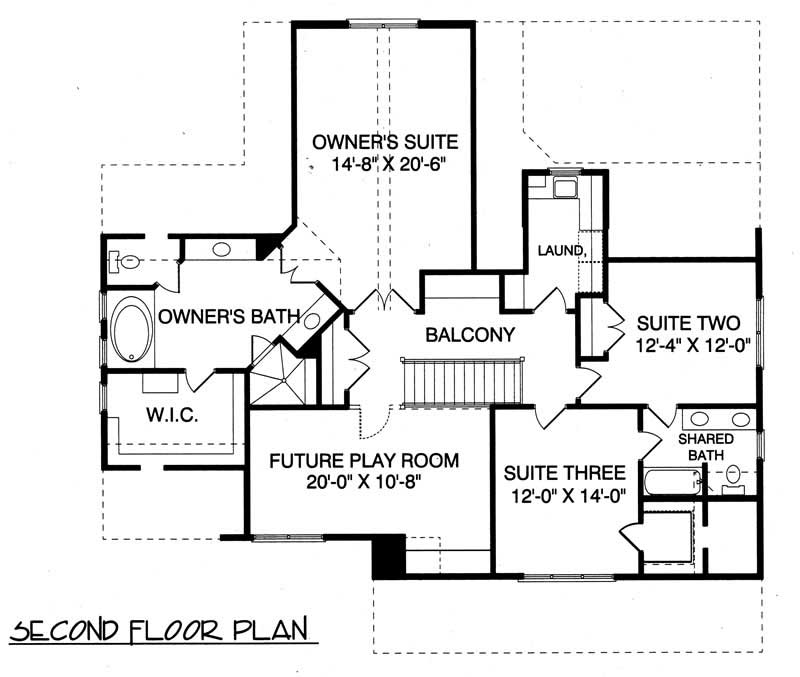

#127-1000 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #127-1000
Home Plan: #127-1000 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #127-1000
#127-1000 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #127-1000
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 127-1000
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2877
Main Floor:
1472
Upper Floor:
1405
Unfinished Sq Ft:
Bonus Room:
257
Garage :
719

Dimensions

Width:
55' 0"
Depth:
53' 4"
Ridge Height:
32'6' 0"

Architectural Styles

European
Arts and Crafts
Craftsman

Exterior Wall Material

Rock/Stone
Wood Siding
Shakes

Roofing Type

Hip

Roof Pitch

Other

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Guest Room
Bonus Room
Color Photos

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6
2x4

Additional Notes from Designer

NO MODS currently as of 2/9/2021

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
