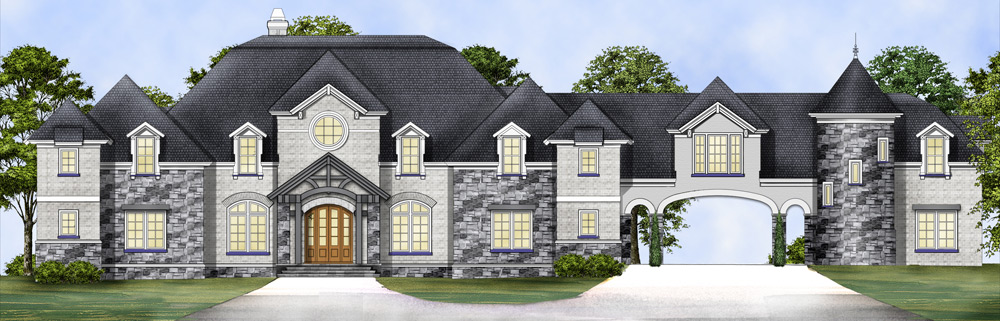

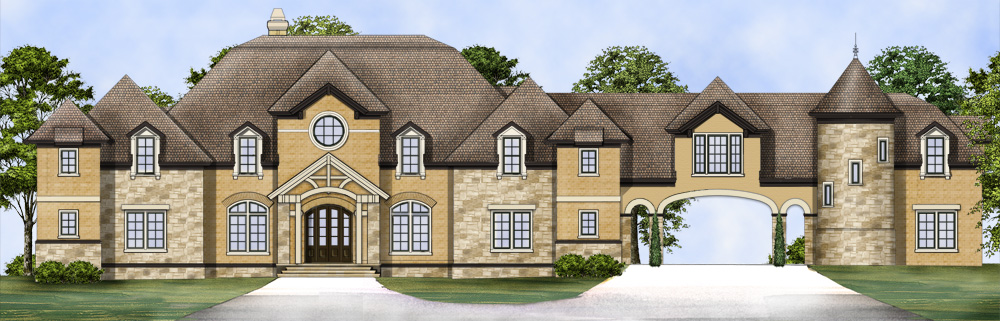

Front elevation of Chateau-inspired home (ThePlanCollection: House Plan #106-1298)

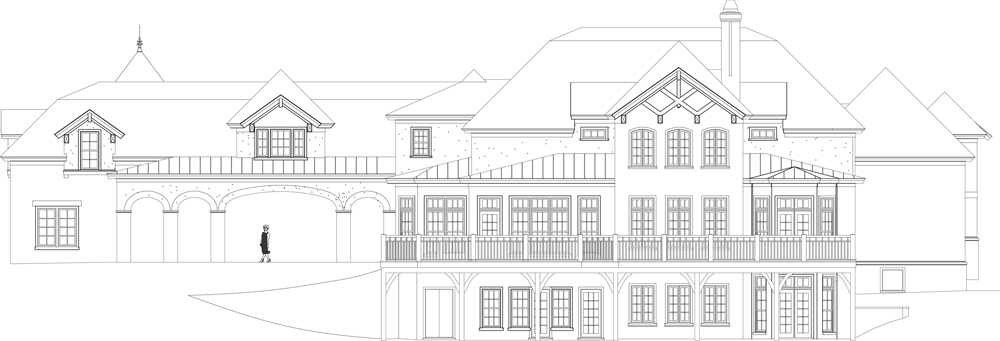

106-1298: Home Plan Rear Elevation

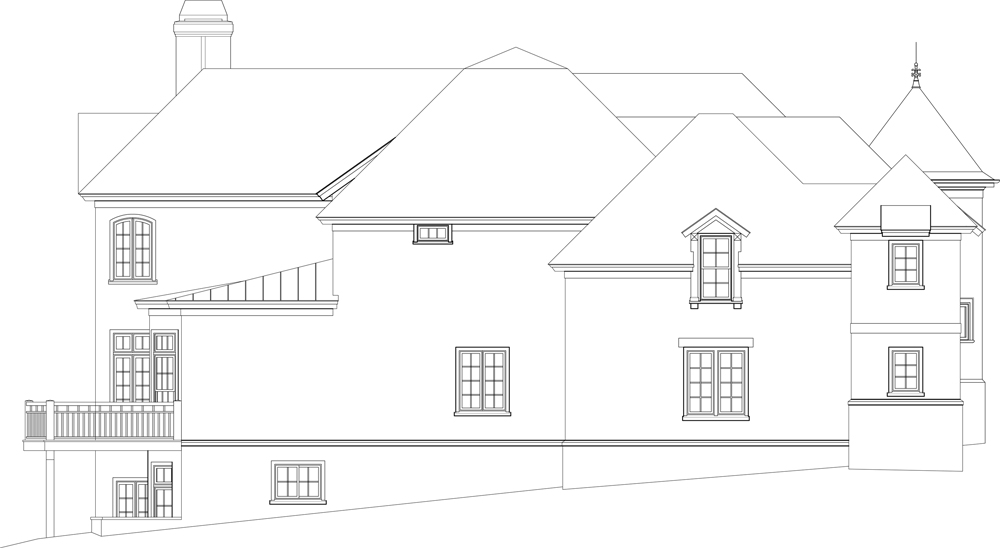

106-1298: Home Plan Left Elevation

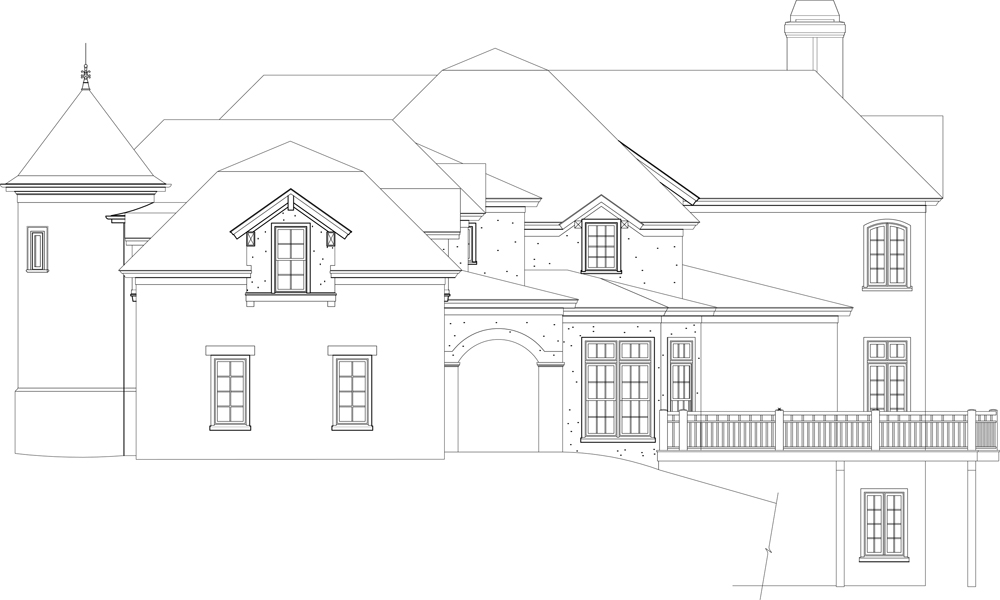

106-1298: Home Plan Right Elevation

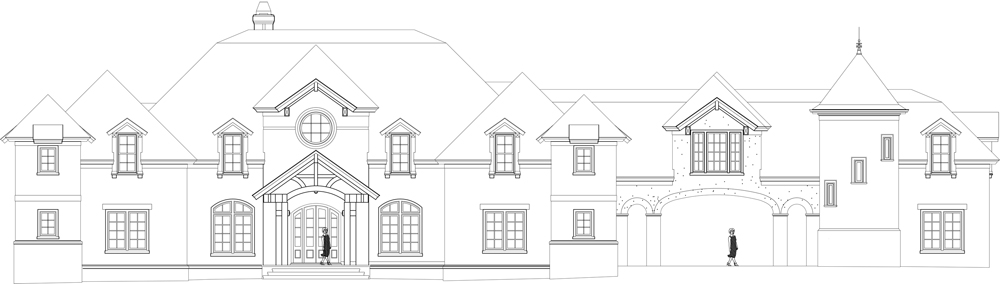

106-1298: Home Plan Front Elevation
106-1298: Home Other Image-Front View
106-1298: Home Other Image-Front View

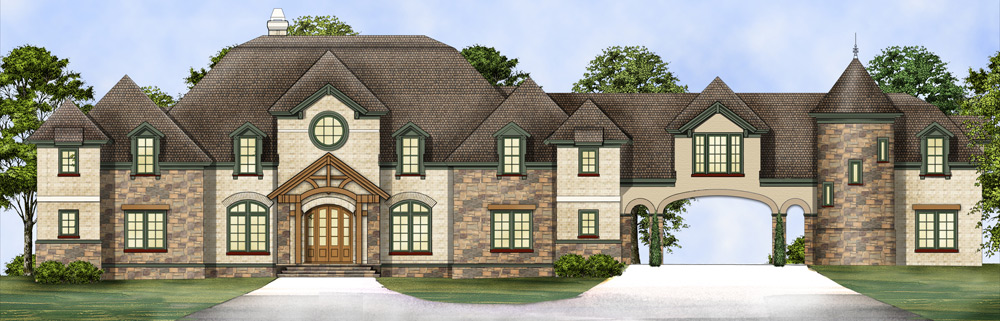

4-Bedroom, 6532 Sq Ft Chateau Home Plan - 106-1298 - Main Exterior
106-1298: Home Plan Rear Elevation
106-1298: Home Plan Left Elevation
106-1298: Home Plan Right Elevation
106-1298: Home Plan Front Elevation
106-1298: Home Other Image-Front View
106-1298: Home Other Image-Front View

About Plan # 106-1298

About Plan # 106-1298

6532 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 139' 0" WIDTH 73' 0" DEPTH 4 GARAGE BAY

There are plenty of surprises with this luxurious, European-styled chateau! To name just a few of the special finds in this castle-inspired design:

  • The dramatic foyer and curved staircase.
  • Grand room with fireplace and windows on three sides.
  • Open-concept layout for the two-island kitchen, family room, and morning (breakfast) room.
  • Wrap-around rear deck.
  • An elevator and a wet-bar.
  • Master suite with an octagon-shaped master bedroom and an octagon-shaped master bath.
  • A two-story walk-in master suite closet!. You have to see it to believe it. This "closet" is the size of a 2-story, 2-car garage! No more arguing about space for clothes, shoes, and accessories. A packing island makes organizing a bit easier while the fitting room helps to make sure that outfit is just perfect. A laundry room directly off this "closet" makes doing the laundry a much easier task too.
  • The porte-cochere frames two, two-car garages.
  •  Upstairs, there are three bedrooms, another laundry room, an exercise room, and a media room.
  • There is also space upstairs for a future in-law suite with its own entrance through the porte-cochere.

Each plan set includes the following:

  • Foundation Plan
  • Floor plans
  • Electrical layout
  • Exterior elevations
  • Cross-section
  • Typical Call detail
  • Typical footing detail
  • Miscellaneous details
  • Window/Door sizes
  • Roof plan

These items are NOT included:

  • Framing.
  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

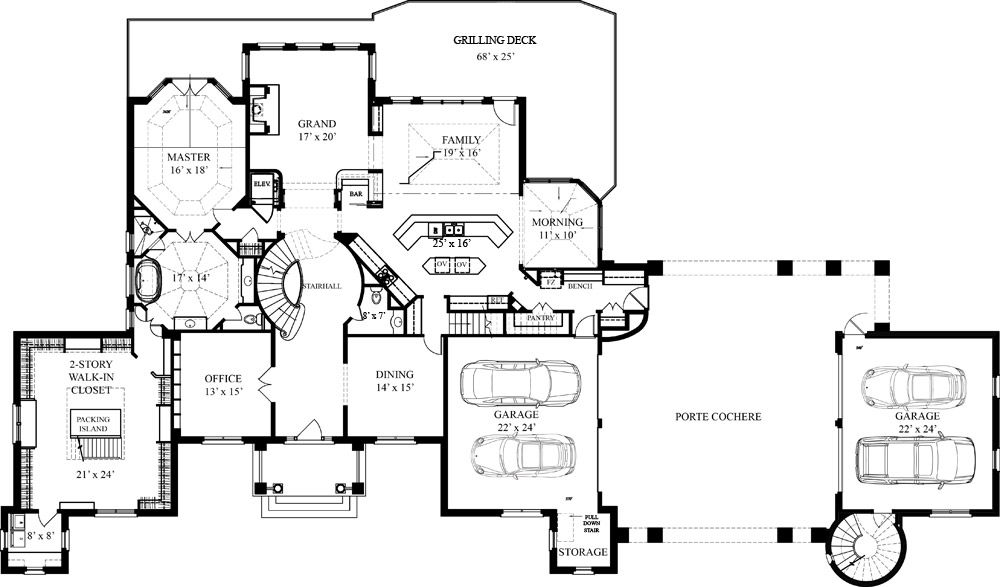

Home Plan: #106-1298 Floor Plan First Story - main level Floor Plan First Story of European Plan #106-1298

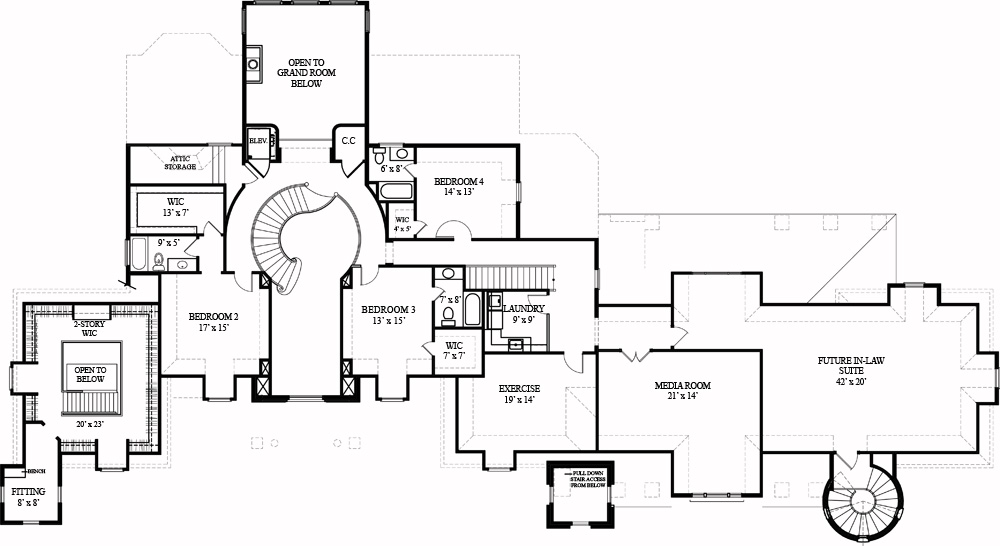

#106-1298 Floor Plan Second Story - upper level Floor Plan Second Story of European Plan #106-1298

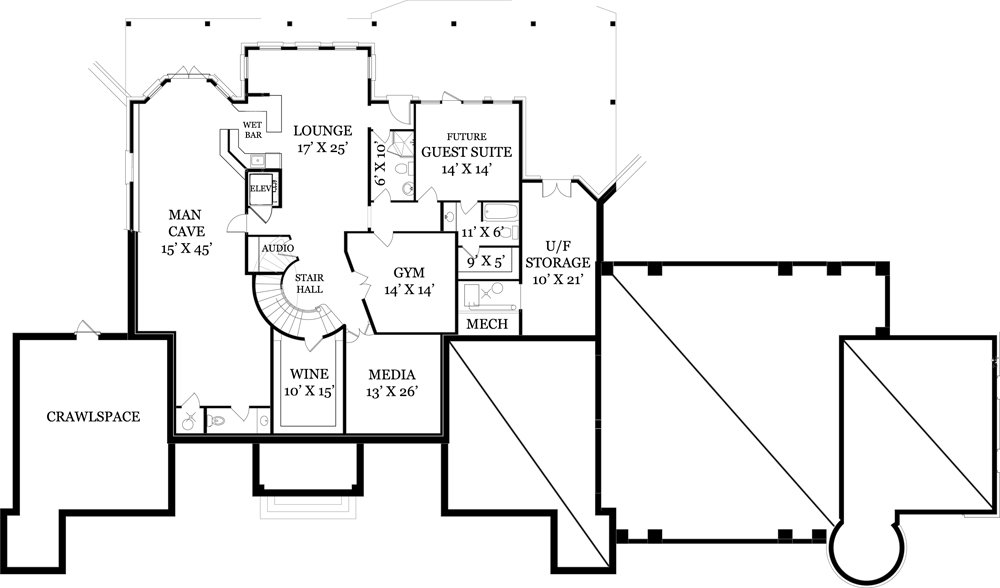

#106-1298 Floor Plan Basement - basement option layout Floor Plan Basement of European Plan #106-1298
Home Plan: #106-1298 Floor Plan First Story - main level Floor Plan First Story of European Plan #106-1298
#106-1298 Floor Plan Second Story - upper level Floor Plan Second Story of European Plan #106-1298
#106-1298 Floor Plan Basement - basement option layout Floor Plan Basement of European Plan #106-1298
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 106-1298
Floors:
2
Bedrooms:
4
Full Baths:
4
Half Baths:
1
Garage :
4

Square Footage

Heated Sq Feet:
6532
Main Floor:
3426
Upper Floor:
3106
Unfinished Sq Ft:
Lower Floor:
2393
Bonus Room:
909
Garage :
1056

Dimensions

Width:
139' 0"
Depth:
73' 0"

Architectural Styles

European
Luxury
Traditional
Historic

Exterior Wall Material

Brick
Rock/Stone

Roofing Type

Gable
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling
11 Foot Ceiling

Special Feature

Mother in law apartment
Fireplace
Dining Room
Guest Room
Home Office
Family Room
Main Level Laundry
Media Room
Loft
Split Bathroom
Storage
Vaulted Ceilings
Wine Cellar
Elevator
Exercise Room
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen
Secondary Kitchen

Porches and Exterior Features

Covered Front Porch
Sundeck
Porte-Cochere

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Private Deck
Split Master Bedroom

Additional Notes from Designer

The plans by this designer do NOT include framing. PLEASE NOTE: An Unlimited Use License is available for purchase through the designer BUT YOU MUST purchase a CAD package!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
