Front elevation of Historic home (ThePlanCollection: House Plan #115-1404)
4-Bedroom, 3245 Sq Ft Historic Home Plan - 115-1404 - Main Exterior

About Plan # 115-1404

About Plan # 115-1404

3245 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 52' 0" WIDTH 46' 0" DEPTH 0 GARAGE BAY

 The plan offers great spaces for entertaining and living. The kitchen, dining room and nook are spacious for all occasions, and the great room and rear terrace/porch/patio are perfect overflow areas if you need it. A private den is located on the front of the house, and is the cozy place for reading and studying or the home office. A bath with a shower is also located on the first floor, and is conveniently located near the mud/utility room and central to the house. There is plenty of closet space on the main floor, and upstairs for each bedroom. This plan offers a four-bedroom layout on the second floor. A full bathroom with linen closets, double vanity, and shower/tub accommodate the three secondary bedrooms. The Master Suite is spacious and includes a private balcony with French doors, double walk-in closets, a full master bath with a large shower, jetted tub, and split vanities. A garage of any size can be added as a detached structure. Please call for suggestions to garage plans that match this style.

Each plan set includes the following:

  • Cover Sheet
  • Schedule Sheet
  • Detail Sheet
  • Foundation Plan Sheet
  • Floor Plan/Floor Framing Sheet(s)
  • Roof Framing Plan Sheet
  • Elevation Sheet
  • Building Section Sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

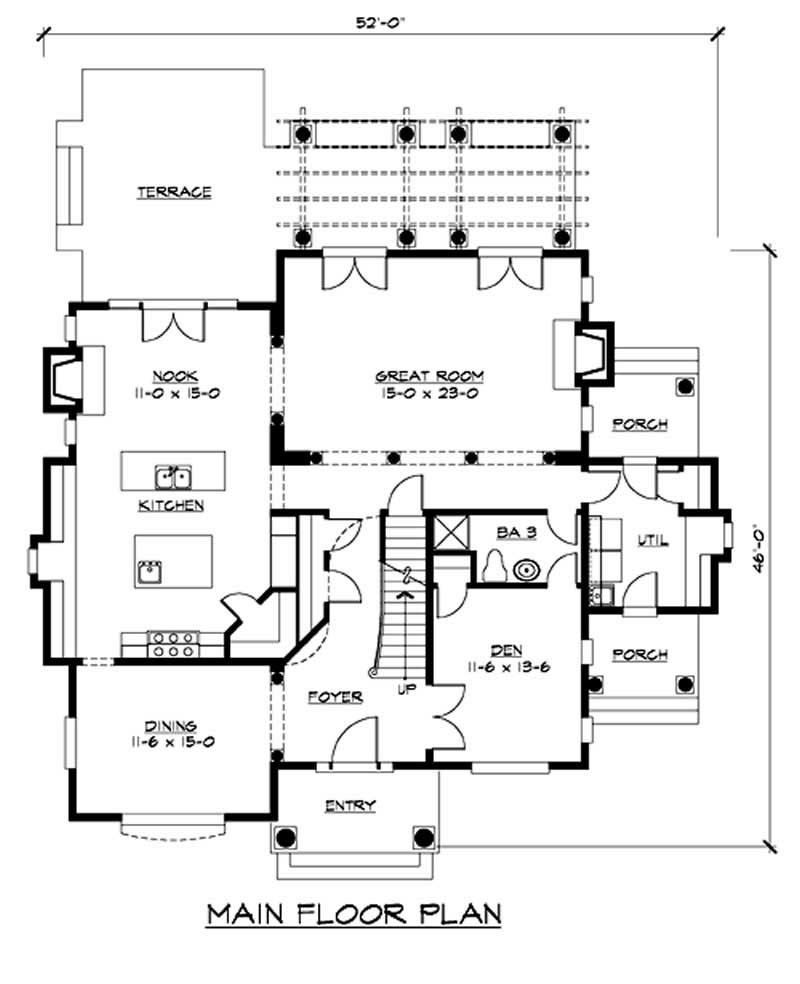

Home Plan: #115-1404 Floor Plan First Story - first story Floor Plan First Story of Historic Plan #115-1404

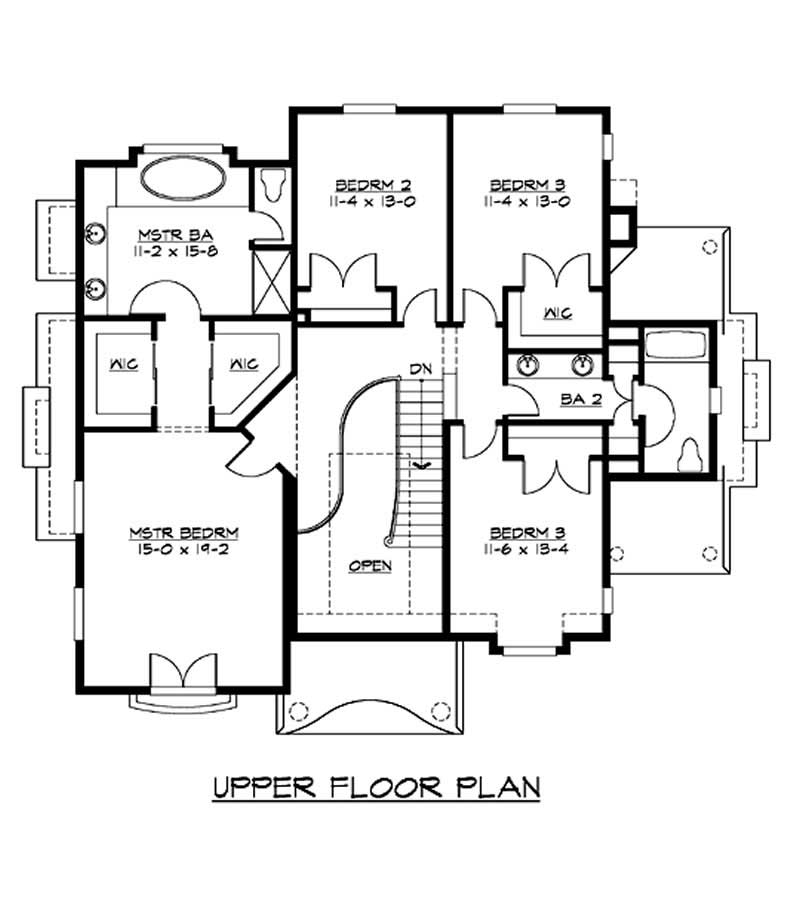

#115-1404 Floor Plan Second Story - second story Floor Plan Second Story of Historic Plan #115-1404
Home Plan: #115-1404 Floor Plan First Story - first story Floor Plan First Story of Historic Plan #115-1404
#115-1404 Floor Plan Second Story - second story Floor Plan Second Story of Historic Plan #115-1404
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1404
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3245
Main Floor:
1750
Upper Floor:
1495
Unfinished Sq Ft:

Dimensions

Width:
52' 0"
Depth:
46' 0"
Ridge Height:
36' 0"

Architectural Styles

Traditional
Shingle
Historic

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Home Office
Main Level Laundry

Garage Type

Detached Garage

Fireplaces

Two Fireplaces

Master Suite Features

Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
