3-Bedroom, 2417 Sq Ft Ranch Plan with Family Room

About House Plan #108-1342

2417

Sq Ft

3

Bedrooms

2

Baths

1

Half Baths

2

Cars

1

Stories

73' 7'

Width

79

Depth

Starting at$1600.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

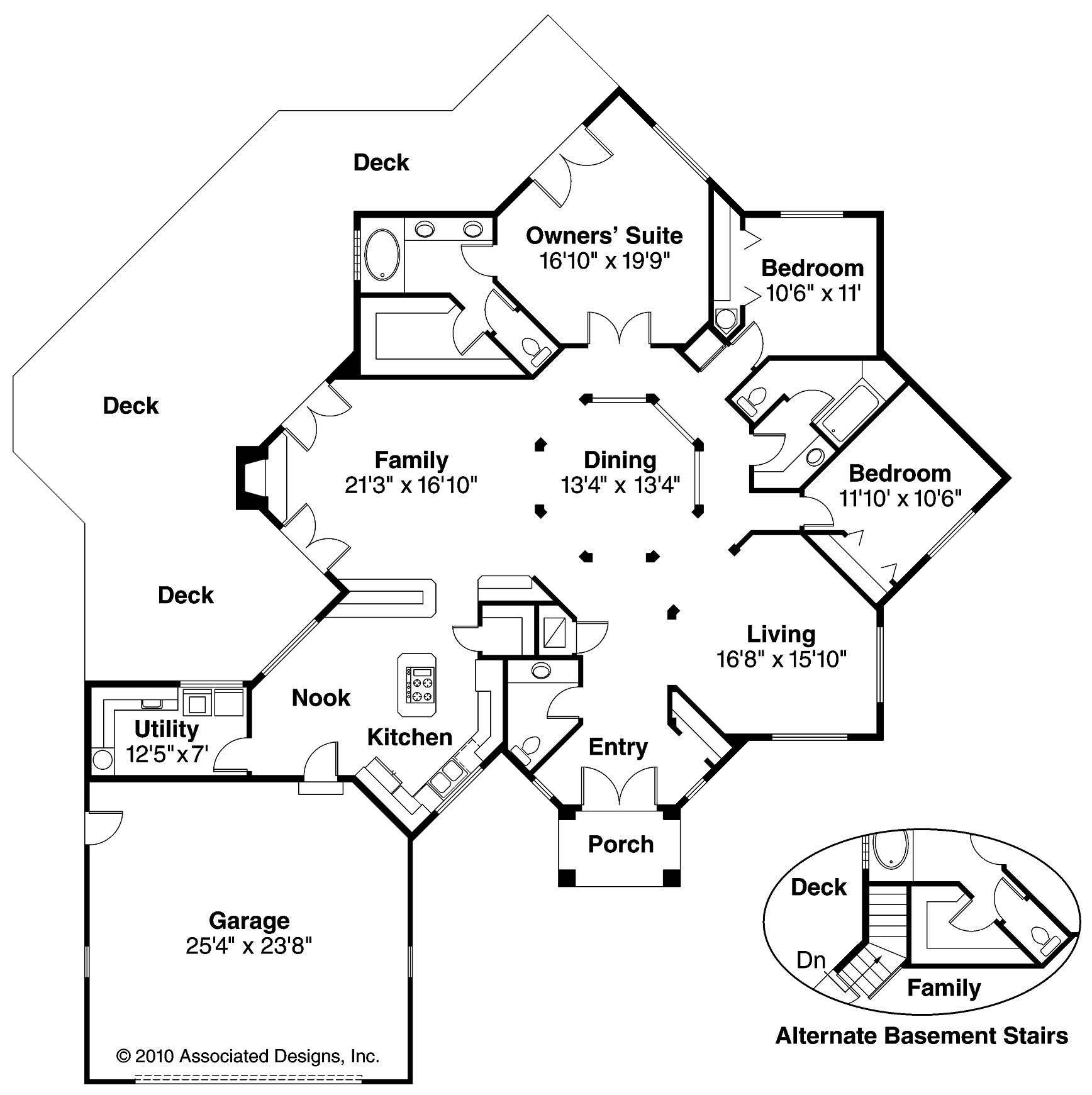

Floor Plan First Story

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

House Plan Description

The #108-1342 home plan is a single story, cape cod style house plan with 2417 total living square feet. This Cape Cod home plan is an essentially star-shaped home with a windowed cupola at its apex. Walls bound the dining area on the bedroom side and columns are on the other. The wide deck is accessible from the family room and the spacious master suite.

Home Details

Summary

Plan #:108-1342

Starting at:$1600.00

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:1

Garage:

Square Footage

Heated Area:2417 Sq. Ft.

First Floor:2417 Sq. Ft.

Unheated Area:

Garage:612 Sq. Ft.

Dimensions

Width:73' 7''

Depth:79' 3''

Ridge Height:27' 0''

Architectural Styles

Ranch Vacation Homes Florida Style

Exterior Wall Material

Shakes

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Artist’s rendering of the home,

Front/Rear/Left and Right Elevations,

Main floor plan, Second or Basement floor plans (if applicable),

Foundation plan and detail,

Floor framing plan,

Roof framing plan, supporting details and

Electric layout.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
