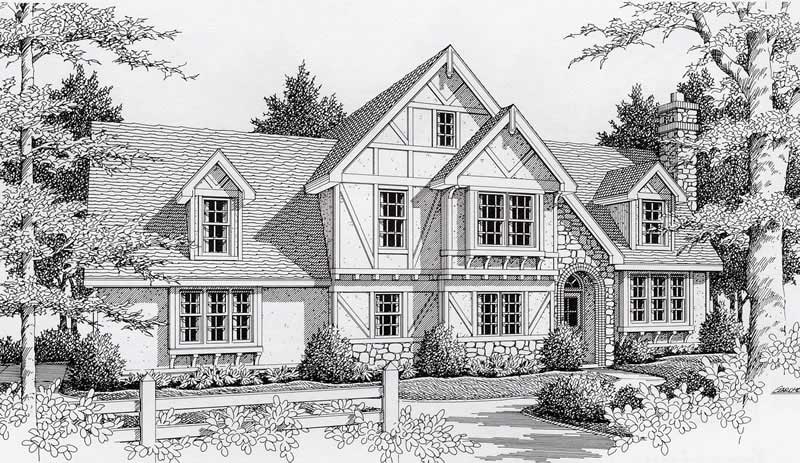

Front elevation of Tudor home (ThePlanCollection: House Plan #162-1017)

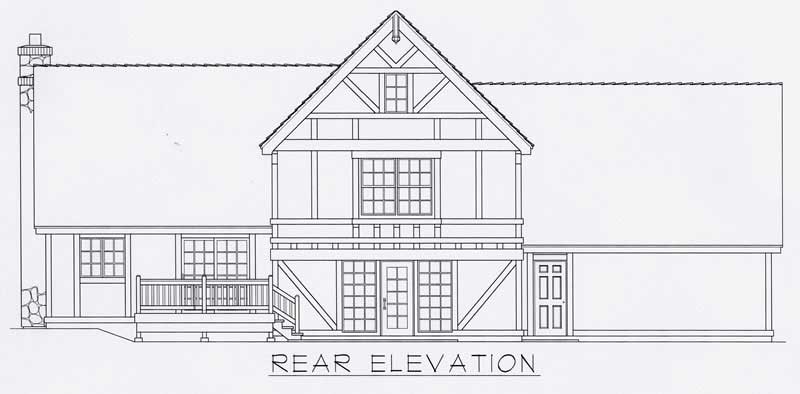

House Plan RDI-1935FL1-B Rear Elevation
3-Bedroom, 1935 Sq Ft Tudor Home Plan - 162-1017 - Main Exterior
House Plan RDI-1935FL1-B Rear Elevation

About Plan # 162-1017

About Plan # 162-1017

1935 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 64' 0" WIDTH 35' 0" DEPTH 2 GARAGE BAY

Home Plan 162-1017 is a cozy Tudor style home with great entertaining features. The multi levels on the main floor give identity to each space, and create a unique environment that anyone can enjoy. The main floor is dedicated to the kitchen, dining, family and living rooms, with a den that doubles as a guest room. A full bath and laundry room are next to the garage. The upper floor honors privacy and intimacy as it is dedicated to the bedrooms. The master suite and bedroom 2 each enjoy raised ceilings. A large bonus room offers flexibility. The unfinished partial basement leaves room for future expansion.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

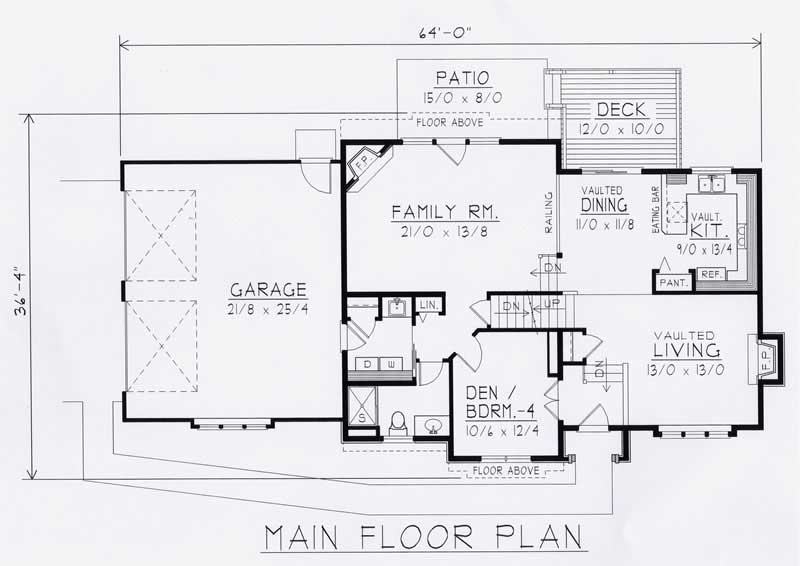

Home Plan: #162-1017 Floor Plan First Story - main Floor Plan First Story of Tudor Plan #162-1017

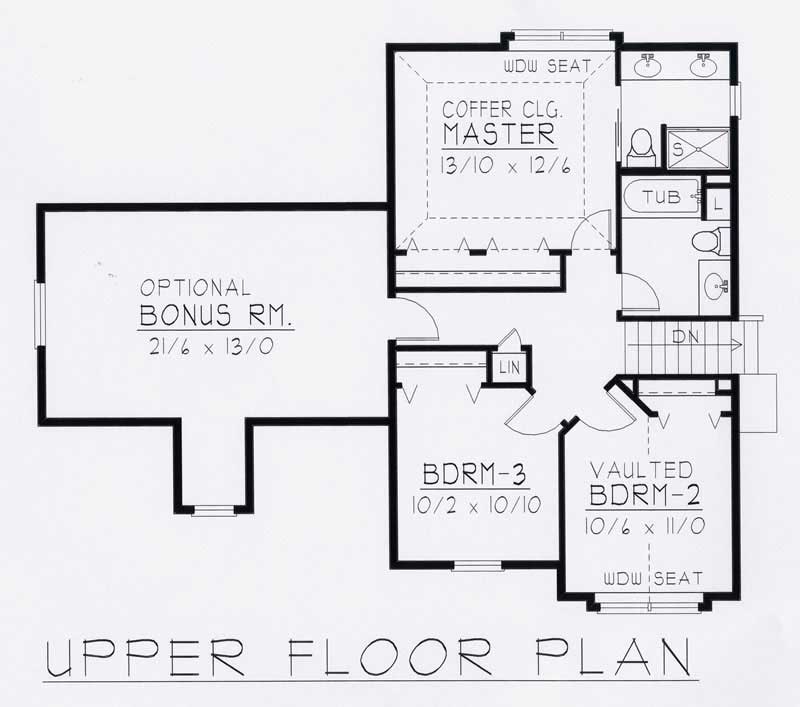

#162-1017 Floor Plan Second Story - second Floor Plan Second Story of Tudor Plan #162-1017
