3-Bedroom, 1833 Sq Ft Mediterranean Plan with Eat-In Kitchen

About House Plan #177-1025

1833

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

2

Cars

1

Stories

48' 0'

Width

59

Depth

Starting at$1210.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

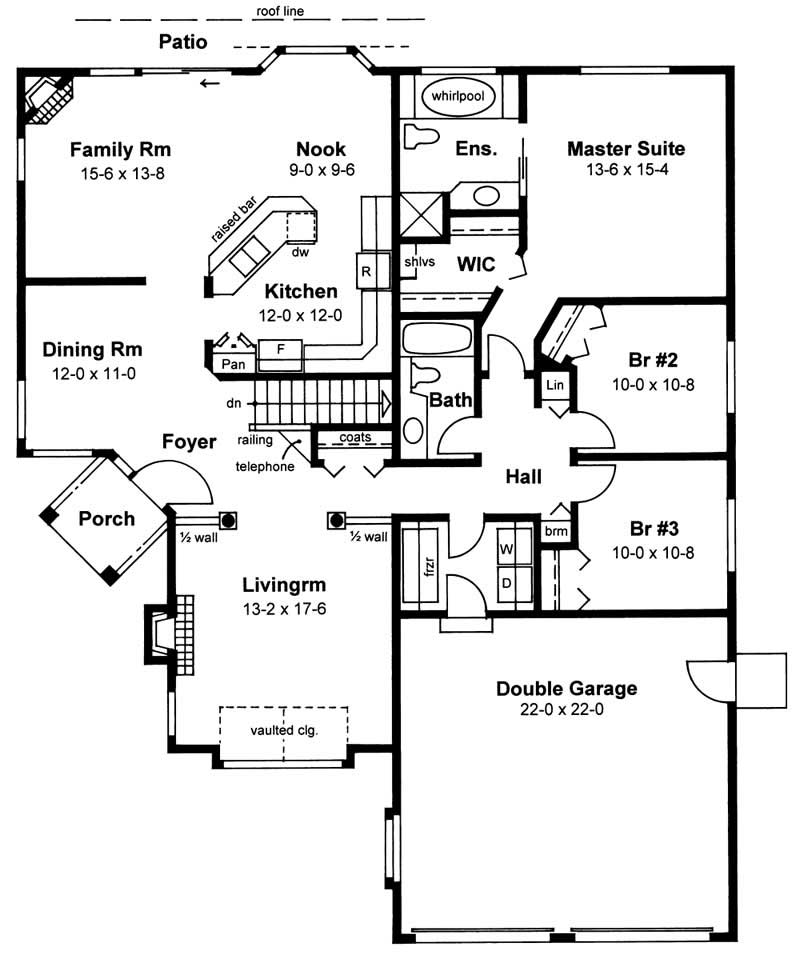

MAIN FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

No BCIN available. We advise you purchase a CAD and use a local engineer for BCIN Additional Use Licenses and Unlimited Use Licenses are available. After purchasing the plan, the designer will charge you separately for the additional licenses.

House Plan Description

A lovely foyer awaits guests and family alike, it is conveniently situated near the center of this design and easily allows access to any part of the house. A large family area at the rear has much to offer, look at the gourmet kitchen, big nook and cozy family room with gas fireplace. Three big bedrooms are well-separated from the busier areas of the home, and what a well-appointed ensuite.

Home Details

Summary

Plan #:177-1025

Starting at:$1210.00

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1833 Sq. Ft.

First Floor:1833 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Mediterranean

Exterior Wall Material

Stucco

Roof Pitch

6/12

Ceiling Height

8 Foot Ceiling

Special Feature

FireplaceGuest RoomFamily Room

Garage Type

Attached Garage

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Electrical Layout

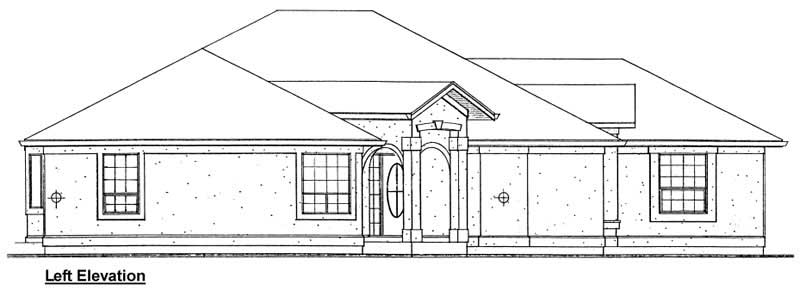

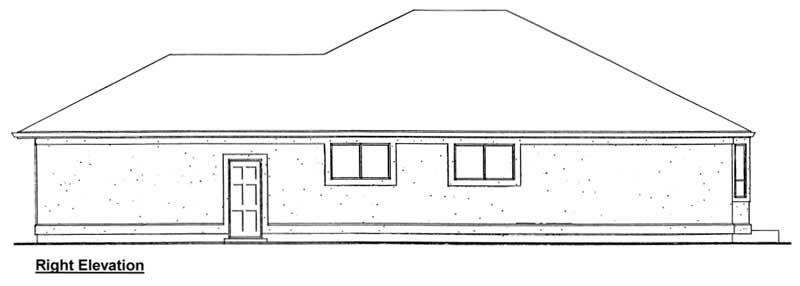

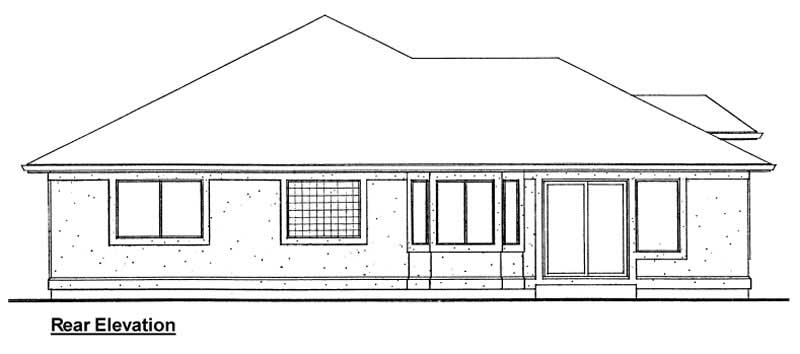

Elevations

Foundation

Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses

Wall Section

Building Sections

Material list available for purchase

Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
