3-Bedroom, 1802 Sq Ft Florida Style Plan with Covered Rear Patio
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #150-1002
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
For ALL plan packages from this designer - please check for shipping timeline BEFORE ordering! PLEASE NOTE - CAD files may take 4 to 6 weeks to create, depending on designer’s current workload at the time of purchase. Please call to confirm BEFORE ordering! NOTE: Alternate foundations and other options are available. Please send in a modification request for a free quote. Thank you!
House Plan Description
This split bedroom plan offers tall ceilings throughout main living area and Master Wing. Optional upgrades include F/P and built-ins at the Great room and marble perfume ledges, plant ledges and glass wall at shower. Plan is ideal for lots with a view to the rear. Designer has many variations of this floor plan with alternative front elevations.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included

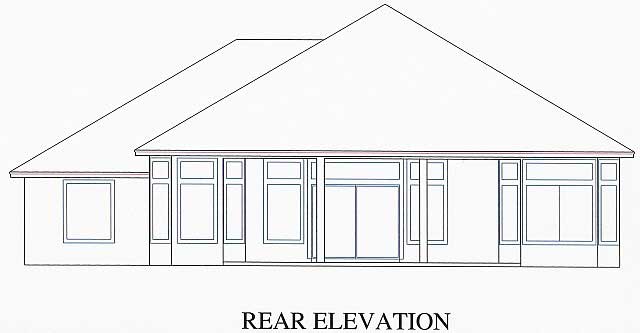

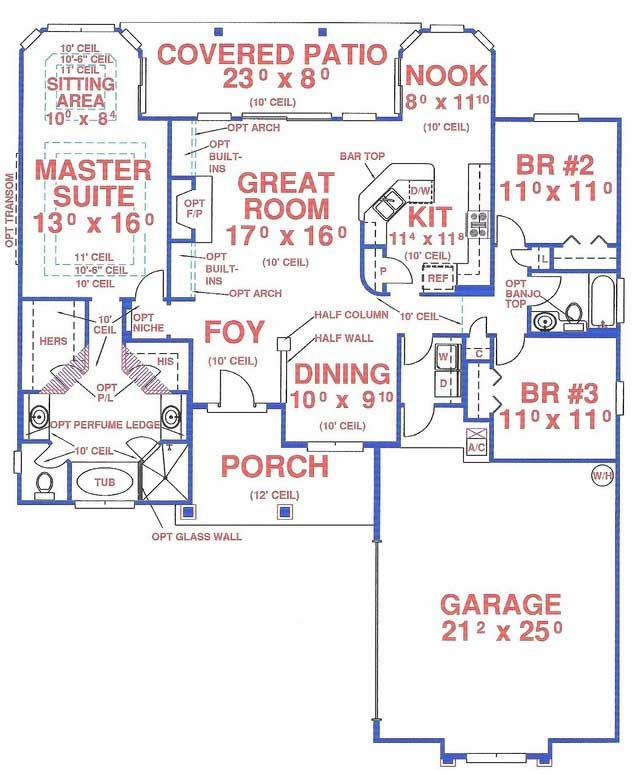

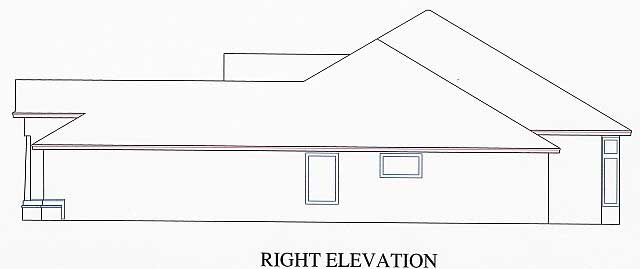

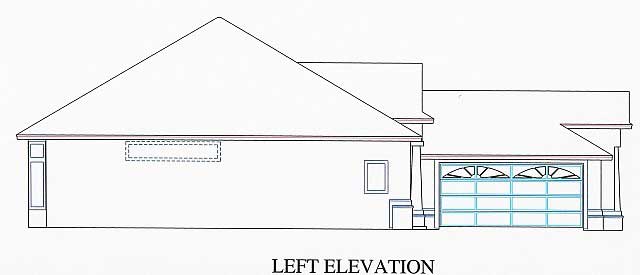

FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.ELECTRICAL LAYOUT:Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFYFRONT, REAR, AND SIDE ELEVATIONS:The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.CROSS SECTIONS AND INTERIOR DETAILS:Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall section and cabinet elevations.What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
