3-Bedroom, 1800 Sq Ft Ranch Plan with Eat-In Kitchen
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #141-1162
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.

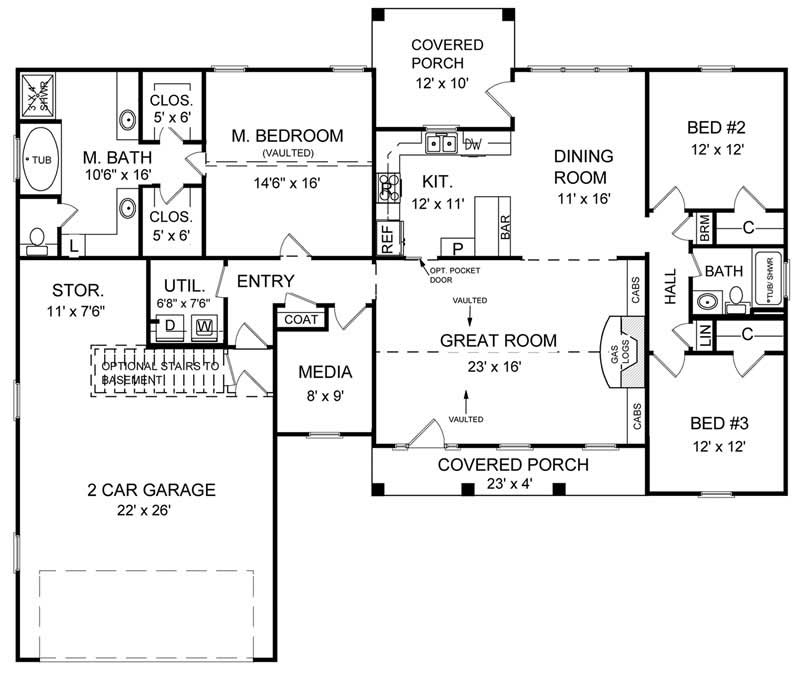

Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
Please Note! This designer does NOT ship paper copies to Canada. Please order your plans in electronic format (PDF or CAD)! USDA Approval is available for this plan. If interested, submit a modification request for a free quote. What is USDA Approval? Certification that a particular house plan meets the housing requirements of the US Department of Agriculture's Rural Housing Service. This is one of the requirements if you intend to apply for a loan through the Rural Housing Service.
House Plan Description

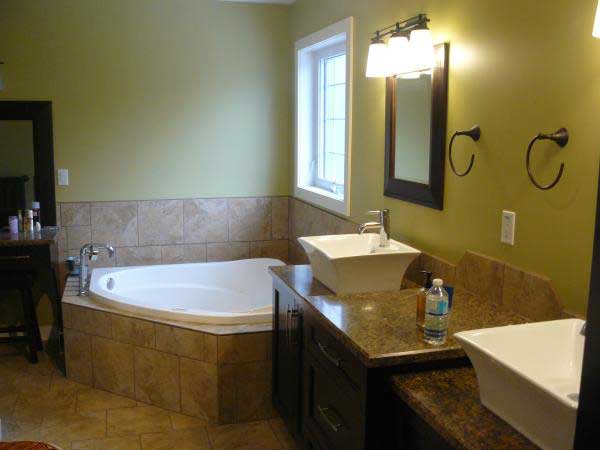

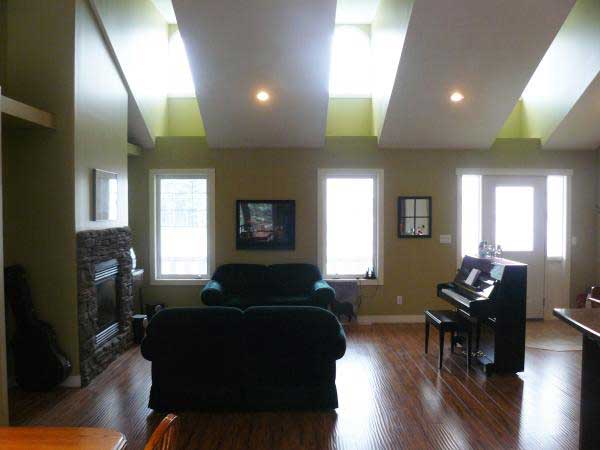

This house has a great master suite with a vaulted ceiling, his and her closets, jet tub, walk-in shower, and make-up area. The great room is vaulted with gas logs and plenty of built-ins. Has covered rear grilling porch for get-togethers with family and friends. Has extra room that may be used for a computer center/nursery/hobbies/home school. Large garage and storage for 4-wheelers, bikes, lawn mowers, and/or golf cart. A great value in space planning.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Cover page with renderingfoundation plan with typical detailsfloor plans with ceiling framing notesfour exterior views of exteriorroof plan, and rafter layout planfull cross section through house, and typical wall sectionsstair section (if there are stairs)Bonus room/garage section if there is a bonus room/garageInterior cabinet drawingsMisc. structural detailsElectrical plan with lighting, outlets, switches, etc..What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
