3-Bedroom, 3650 Sq Ft Craftsman Plan with Second Floor Master

About House Plan #132-1385

3650

Sq Ft

3

Bedrooms

3

Baths

0

Half Baths

2

Cars

2

Stories

71' 6'

Width

87

Depth

Starting at$1795.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

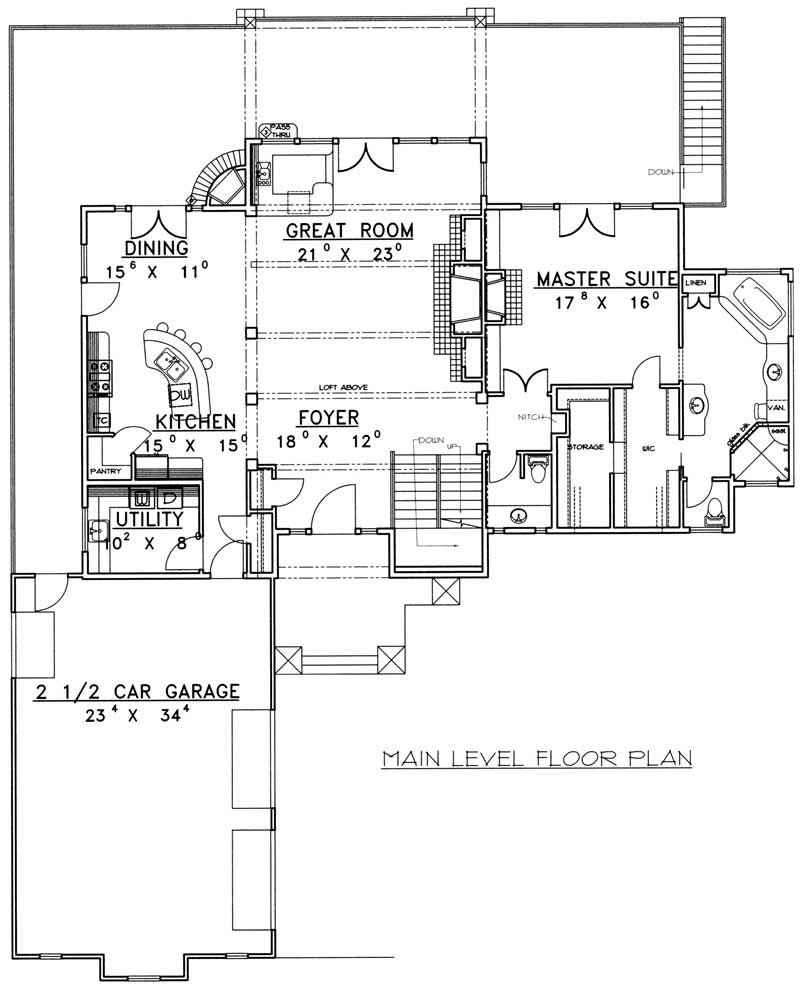

MAIN LEVEL FLOOR PLAN

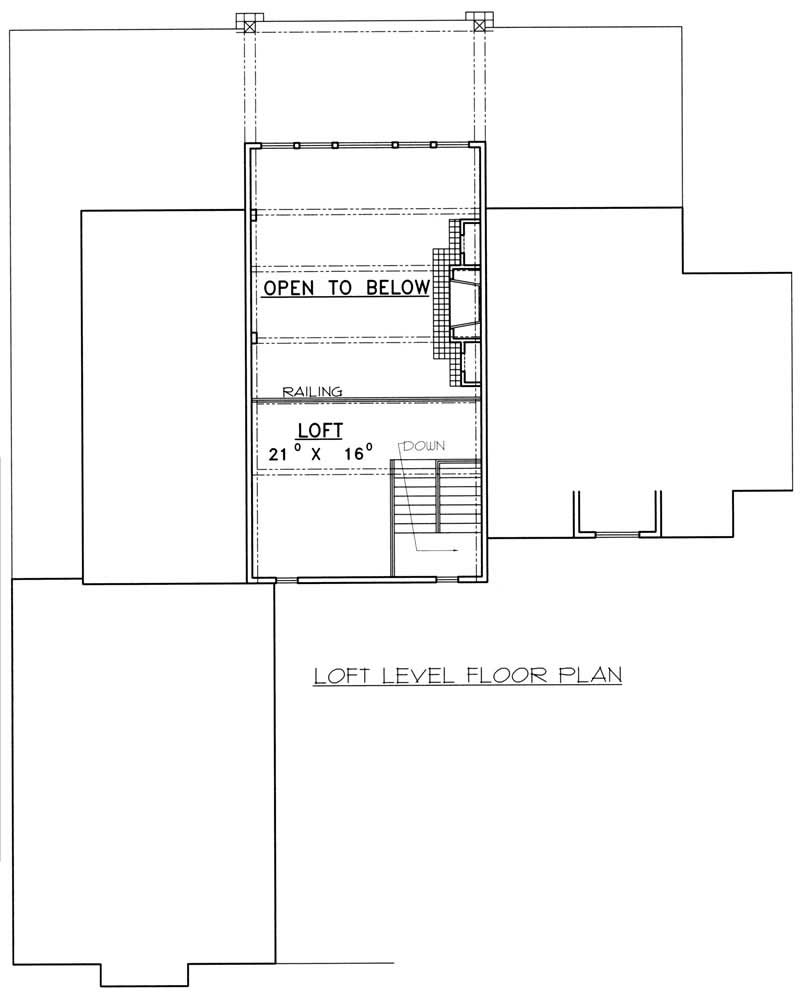

UPPER LEVEL FLOOR PLAN

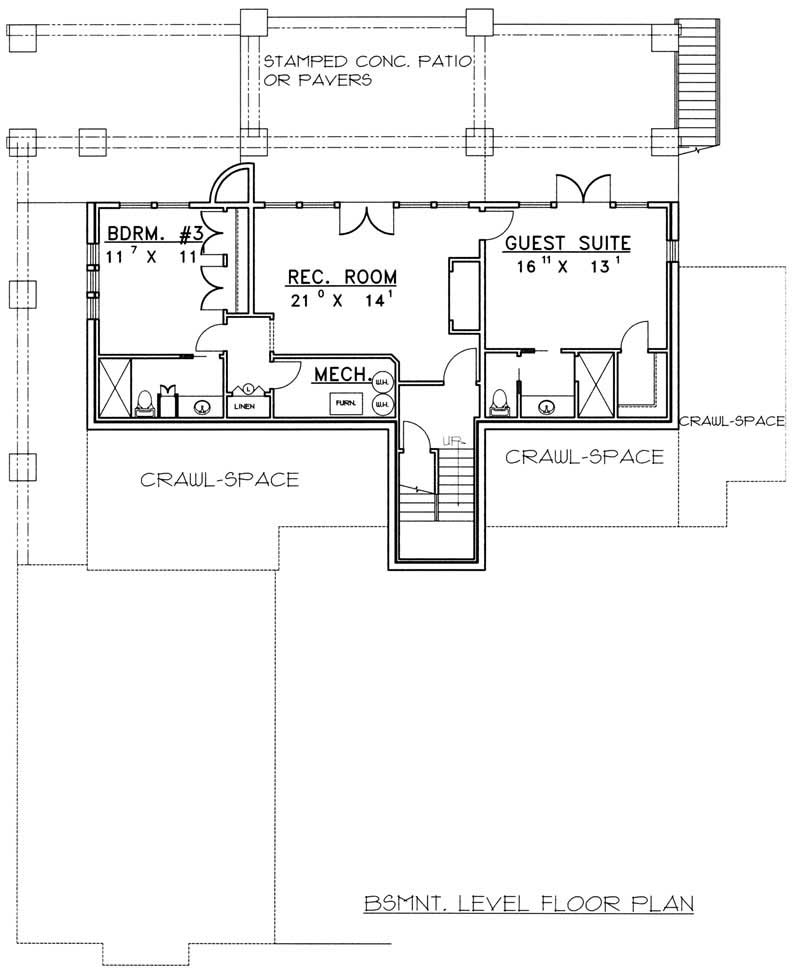

BASEMENT FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes.

House Plan Description

*Craftsman Style *Large Recreation Room *Stamped Concrete Patio *Main Level Master Suite With Walk-In Closet *Corner Tub In Master Bathroom *Walk-In Shower In Master Bathroom *Vanity In Master Bathroom *Storage *Large Great Room With Fireplace With Entertainment Center *Sunken Wet Bar *Main Level Laundry Room *2.5 Car Garage *Kitchen With Walk-In Pantry And Eating Bar *Deck Fireplace *Loft

Home Details

Summary

Plan #:132-1385

Starting at:$1795.00

Floors:2

Bedrooms:3

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area:3650 Sq. Ft.

First Floor:2106 Sq. Ft.

Second Floor:272 Sq. Ft.

Unheated Area:

Basement:1272 Sq. Ft.

Garage:847 Sq. Ft.

Dimensions

Width:71' 6''

Depth:87' 6''

Ridge Height:25'2' 0''

Architectural Styles

Craftsman

Exterior Wall Material

Rock/StoneShakes

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling

Special Feature

FireplaceMain Level Laundry

Garage Type

Attached Garage

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Kitchen Features

Walk-in Pantry

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

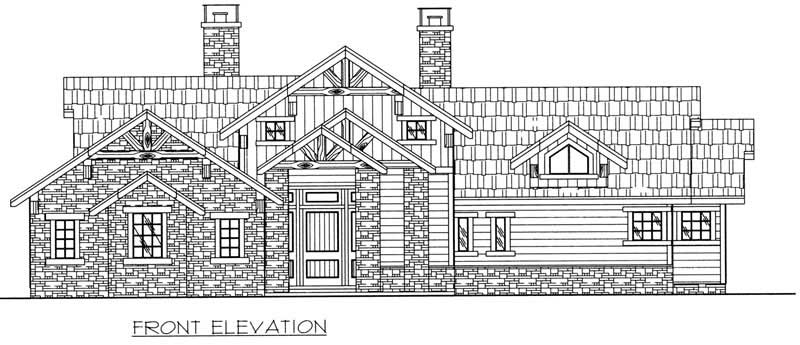

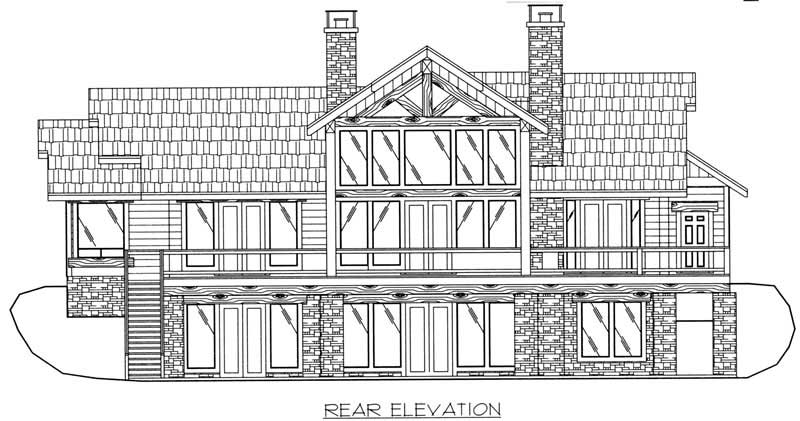

Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.

Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.

Foundation plan: shows footing, stem wall, and slab placement, including all connection details.

Floor and roof framing plans show truss/rafter placements, including all beams/connection details.

Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.

Electrical layout

General notes/details to cover the entirety of the project

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
