Ranch home (ThePlanCollection: Plan #193-1091)

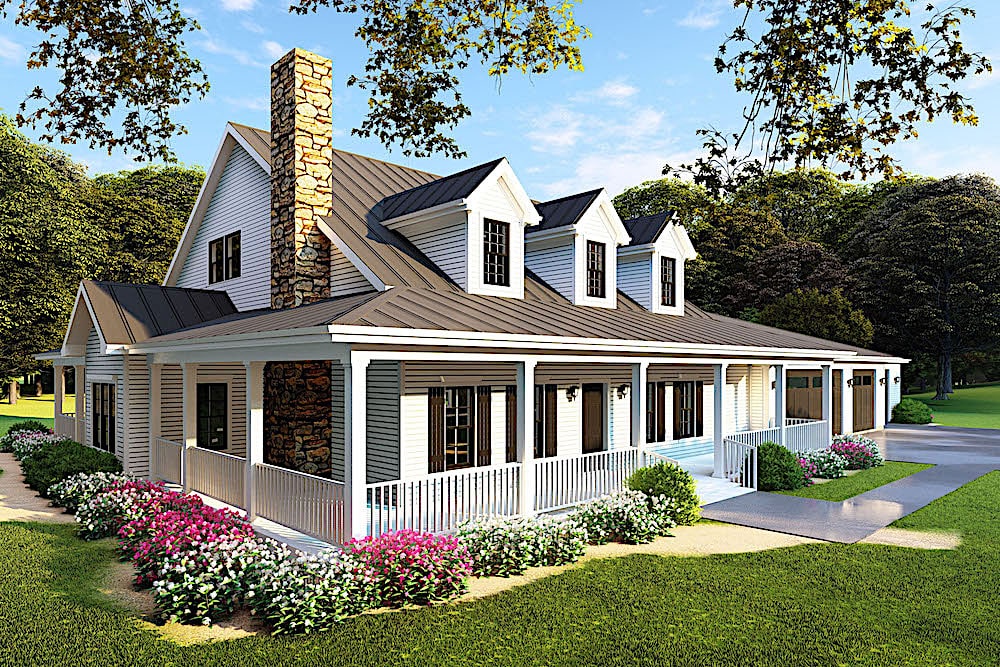

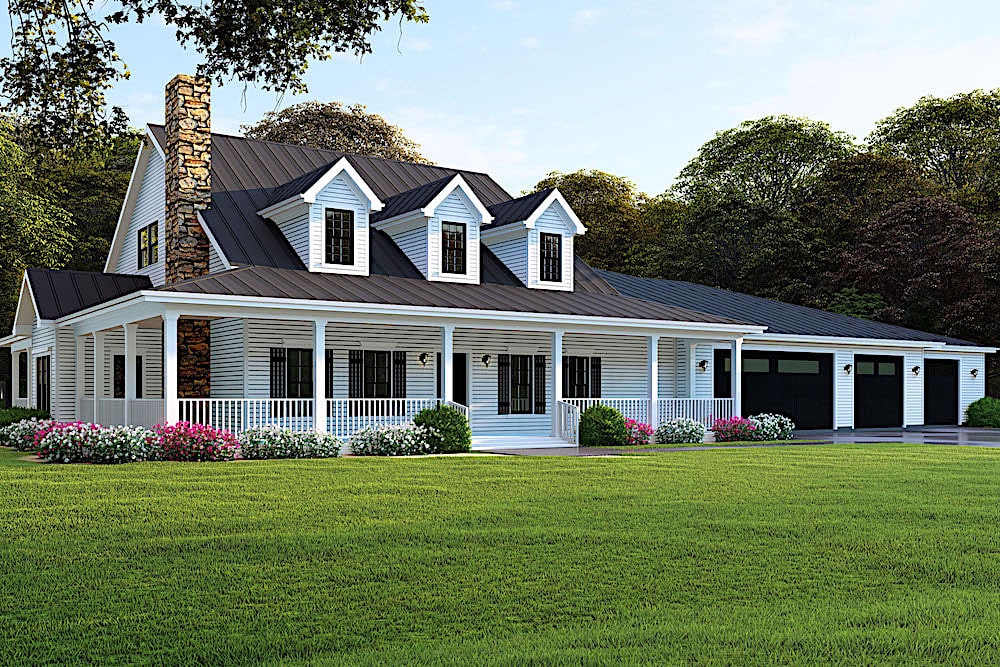

193-1091: Home Other Image-Front View

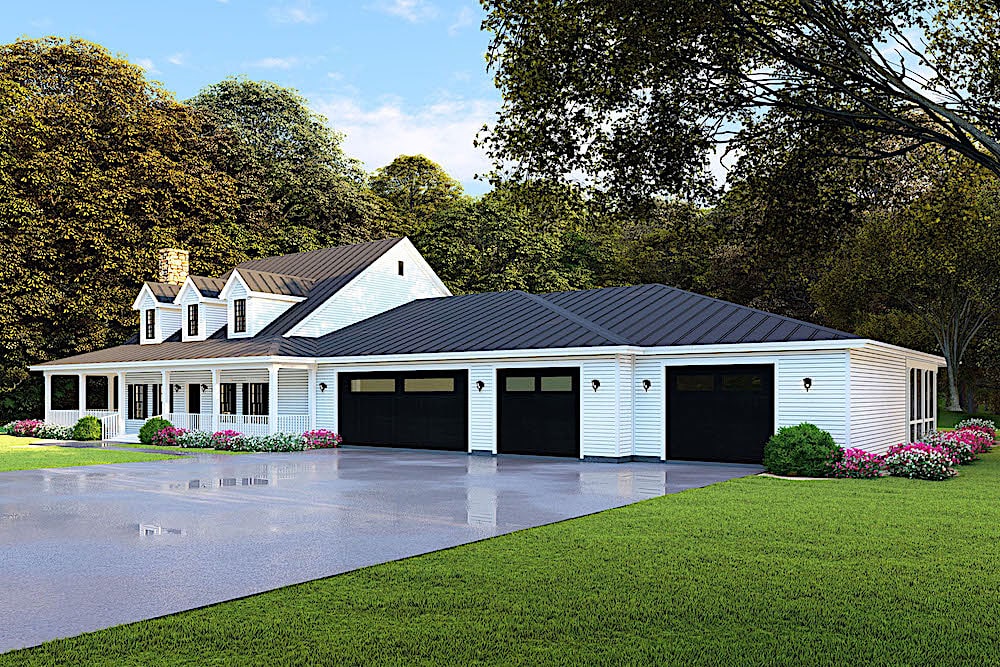

193-1091: Home Other Image-Right Side View

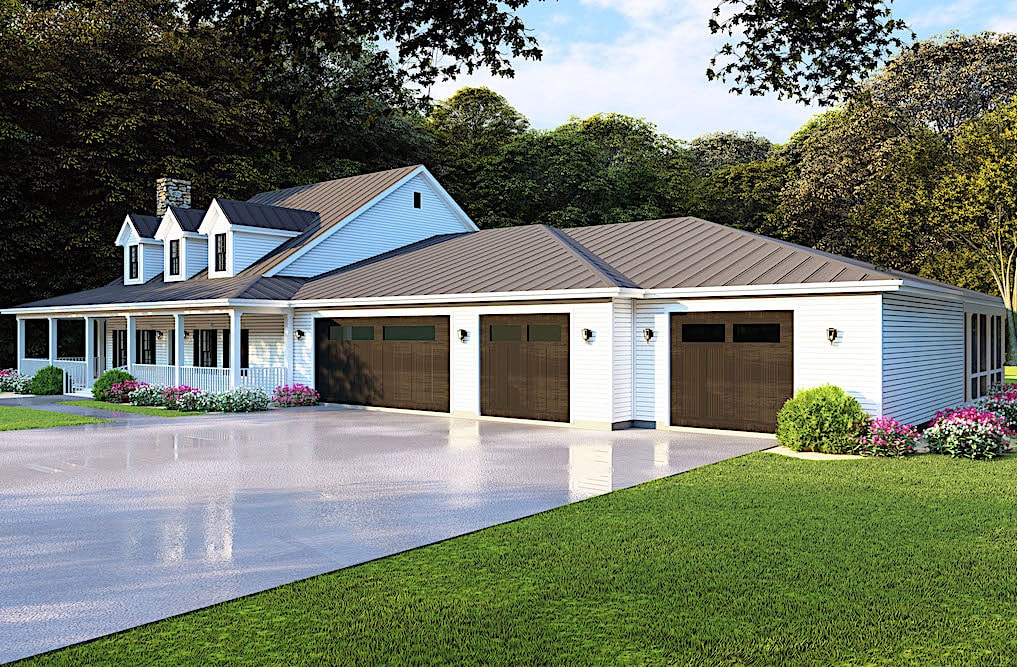

193-1091: Home Other Image-Right Side View
193-1091: Home Other Image-Left Side View

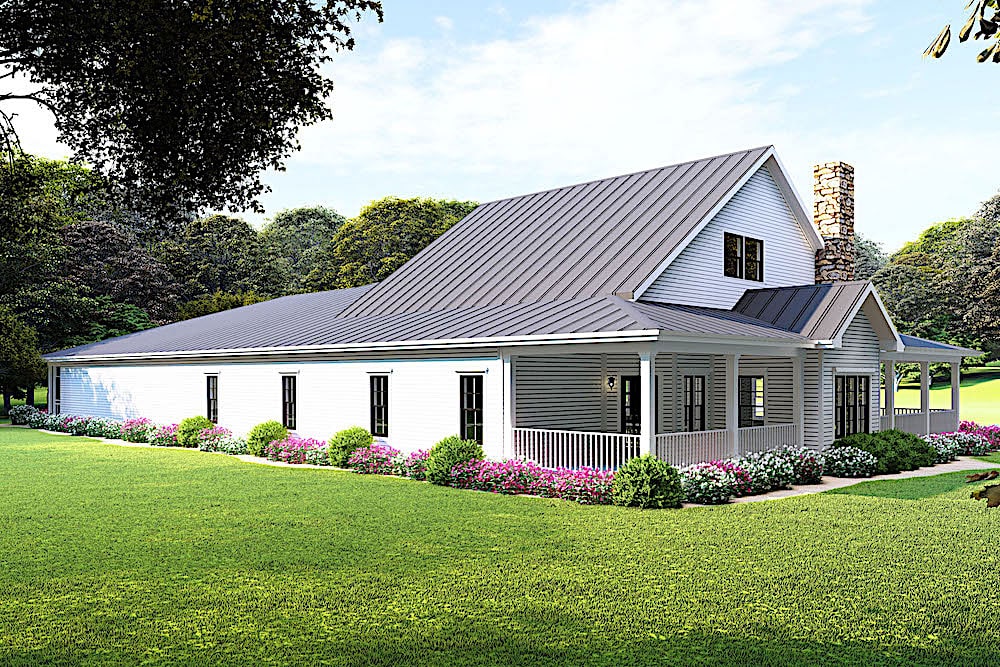

193-1091: Home Other Image-Rear View

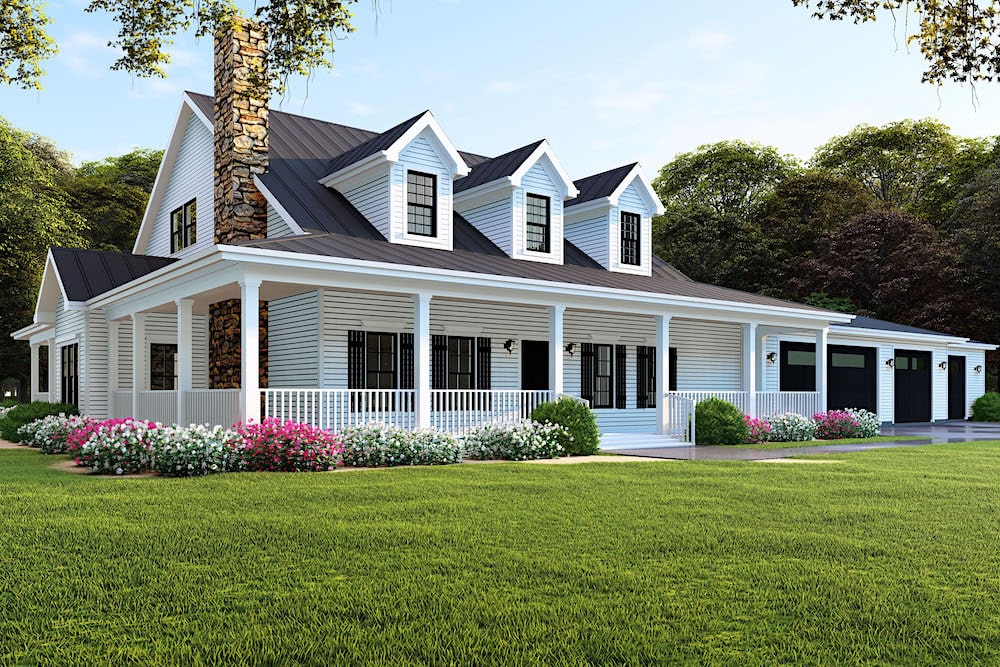

4-Bedroom, 3416 Sq Ft Ranch Home - Plan #193-1091 - Main Exterior
193-1091: Home Other Image-Front View
193-1091: Home Other Image-Right Side View
193-1091: Home Other Image-Right Side View
193-1091: Home Other Image-Left Side View
193-1091: Home Other Image-Rear View

About Plan # 193-1091

About Plan # 193-1091

3416 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 103' 4" WIDTH 61' 6" DEPTH 4 GARAGE BAY

This captivating country farmhouse plan is what luxury is all about. The wrap-around porch offers plenty of room to relax or entertain guests while enjoying outdoor living. Inside, the massive Great Room includes a fireplace and is just steps away from the kitchen. The kitchen has a walk-in pantry, large island and an eating bar. Plus, the kitchen has quick access to the grilling porch. From the garage, there is a mudroom with lockers. There are also a number of surprising extras in this home. These include a home office, a crafts room, and a safe room

Perhaps the most outstanding "extra" in this house design is the impressive in-law suite/apartment. The suite is truly complete and could be a rental or Airbnb if so desired. Access to the in-law apartment is through either its own porch or its own one-car garage (as well as a door in the kitchen that connects to the main house). The in-law suite's Great Room has a 10-foot boxed ceiling. The kitchen is separated from the Great Room by an eating bar. There are two bedrooms and two full bathrooms. The in-law suite also has its own laundry room.

This plan has 3416 square feet of living space. The 1-story floor plan includes 4 bedrooms and 4 bathrooms.

Each plan set includes the following:

  • Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

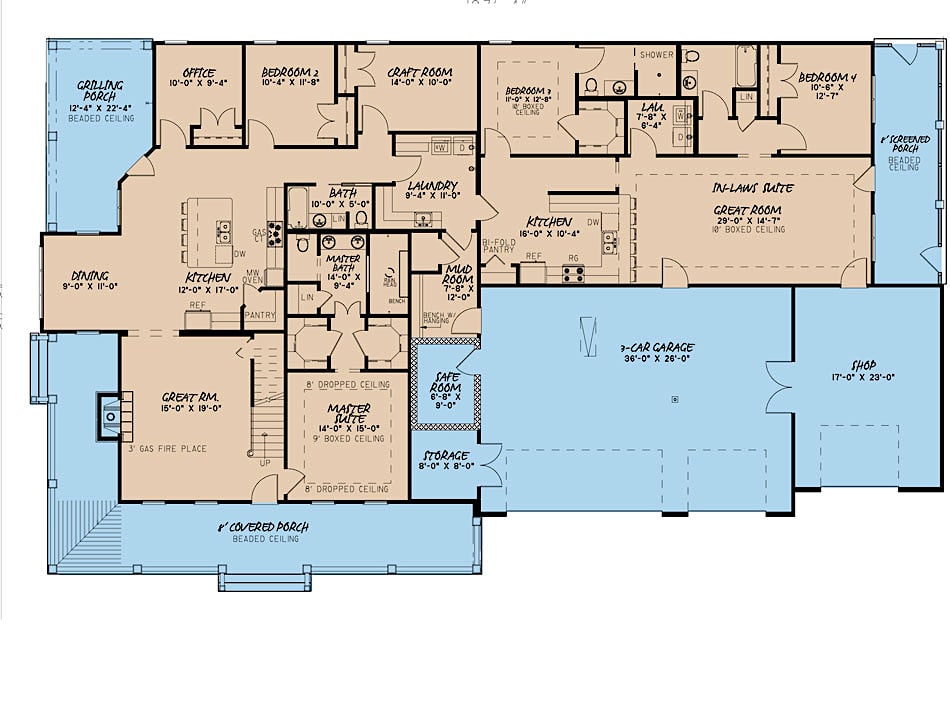

Home Plan: #193-1091 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #193-1091

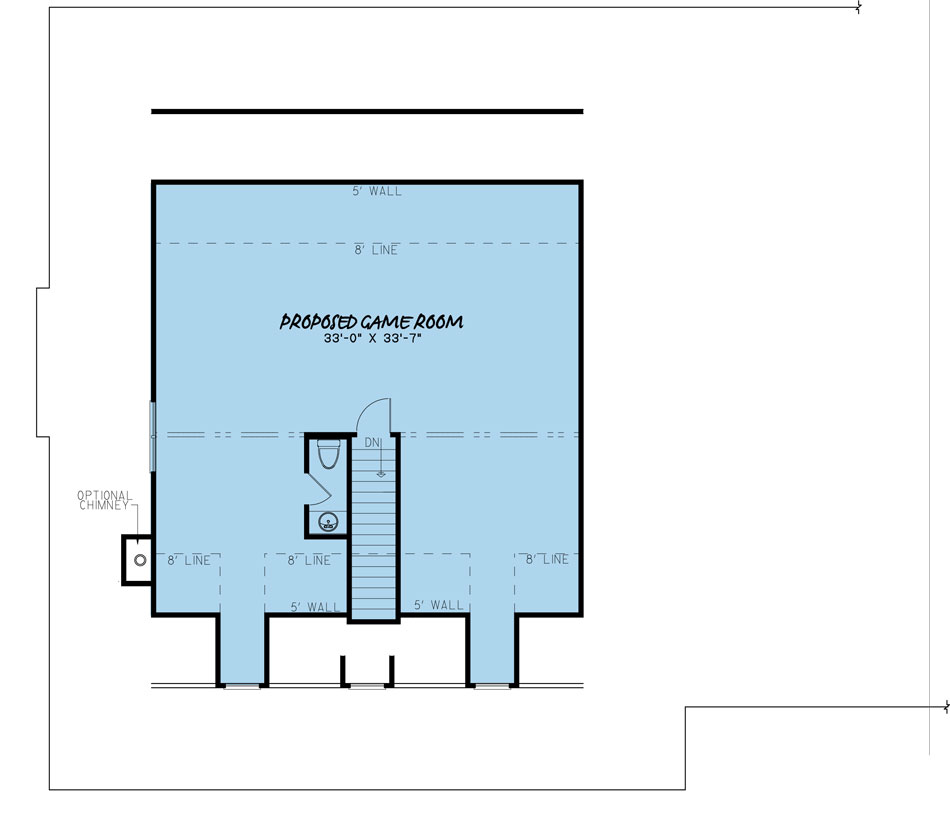

#193-1091 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #193-1091
Home Plan: #193-1091 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #193-1091
#193-1091 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #193-1091
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 193-1091
Floors:
1
Bedrooms:
4
Full Baths:
4
Garage :
4

Square Footage

Heated Sq Feet:
3416
Main Floor:
3416
Unfinished Sq Ft:
Bonus Room:
1156
Garage :
1526
Porch :
1012

Dimensions

Width:
103' 4"
Depth:
61' 6"
Ridge Height:
27' 0"

Architectural Styles

Country
Ranch
Southern
Traditional
Modern Farmhouse

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable
Hip
Gable/Dormer

Roofing Material

Metal

Roof Pitch

4/12
8/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Mother in law apartment
Fireplace
Dining Room
Home Office
Mud Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Workshop
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch
Covered Rear Porch
Friend's Entry
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: PLEASE NOTE: The office will be closed Tuesday July 4, 2022 so no orders will be processed until Wednesday July 5th. For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. if you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
