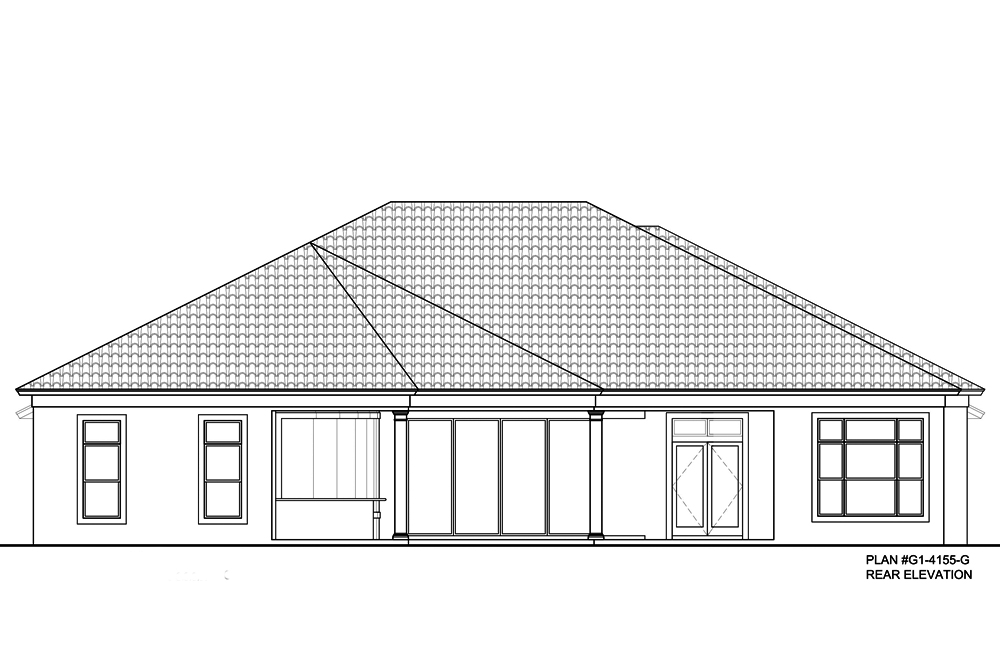

210-1001: Home Plan Rear Elevation
4-Bedroom, 4155 Sq Ft Mediterranean House Plan - 210-1001 - Front Exterior
210-1001: Home Plan Rear Elevation

About Plan # 210-1001

About Plan # 210-1001

4155 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
1 FLOOR 79' 8" WIDTH 99' 6" DEPTH 4 GARAGE BAY

This remarkable Mediterranean-style home with Spanish influences has 4155 square feet of living space. The 1-story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

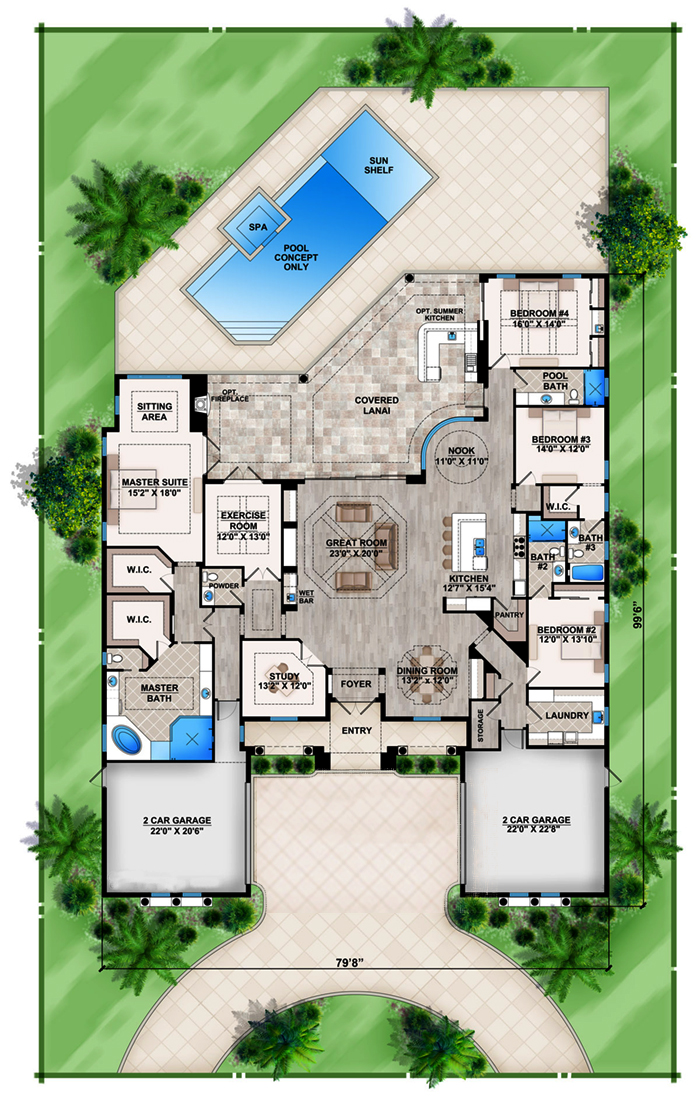

Home Plan: #210-1001 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #210-1001
Home Plan: #210-1001 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #210-1001
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 210-1001
Floors:
1
Bedrooms:
4
Full Baths:
4
Half Baths:
1
Garage :
4

Square Footage

Heated Sq Feet:
4155
Main Floor:
4155
Unfinished Sq Ft:
Garage :
1129
Porch :
1205

Dimensions

Width:
79' 8"
Depth:
99' 6"
Ridge Height:
28' 6"

Architectural Styles

Mediterranean
Luxury
Spanish
Concrete Block/ ICF Design

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Fireplace
Swimming Pool
Dining Room
Main Level Laundry
Library
Storage
Exercise Room

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

One Fireplace

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Split Master Bedroom

Additional Notes from Designer

Note: Total Under Roof: 6,489 sqft. Exterior walls (1st story) are CMU (concrete masonry units). Formerly labeled as Plan # 133-1087
