6-Bedroom, 5628 Sq Ft Country Plan with Covered Rear Porch
Related House Plans
| 5628 SQUARE FEET | 6 BEDROOMS | 5 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 72' 10" WIDTH | 74' 0" DEPTH | 3 GARAGE BAY |

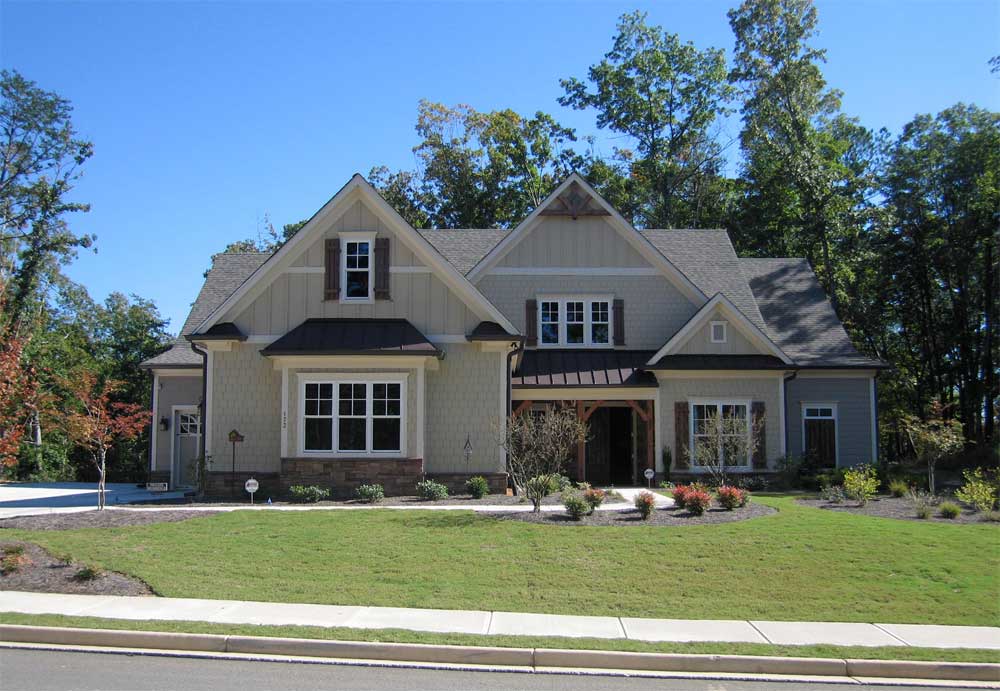

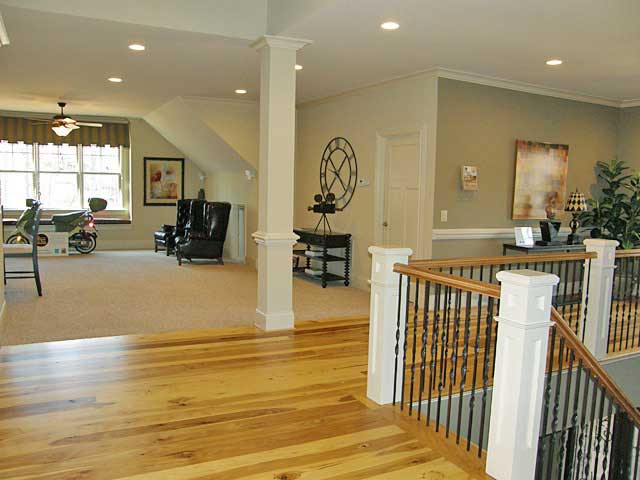

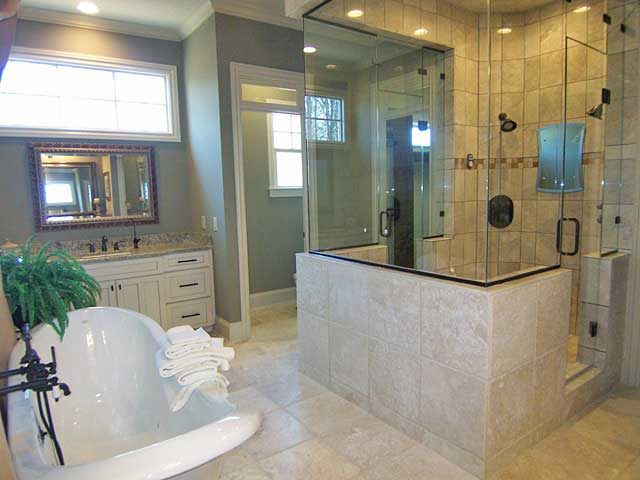

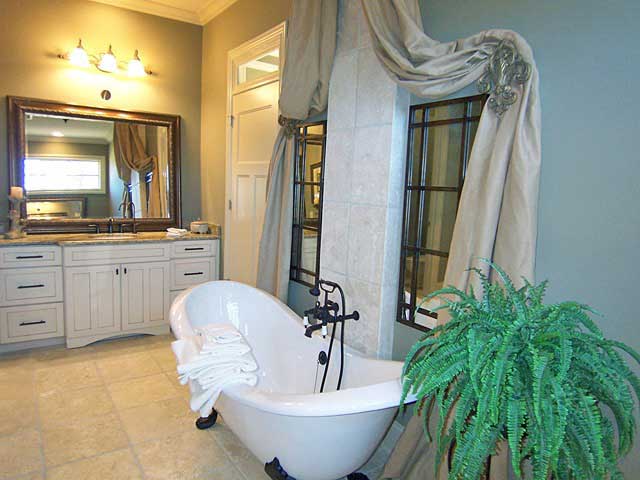

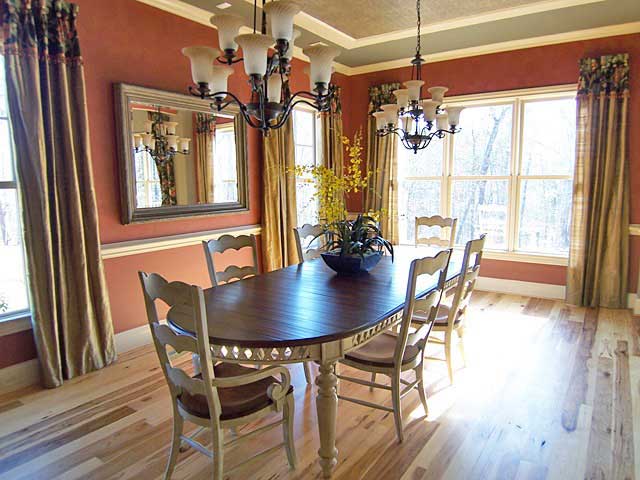

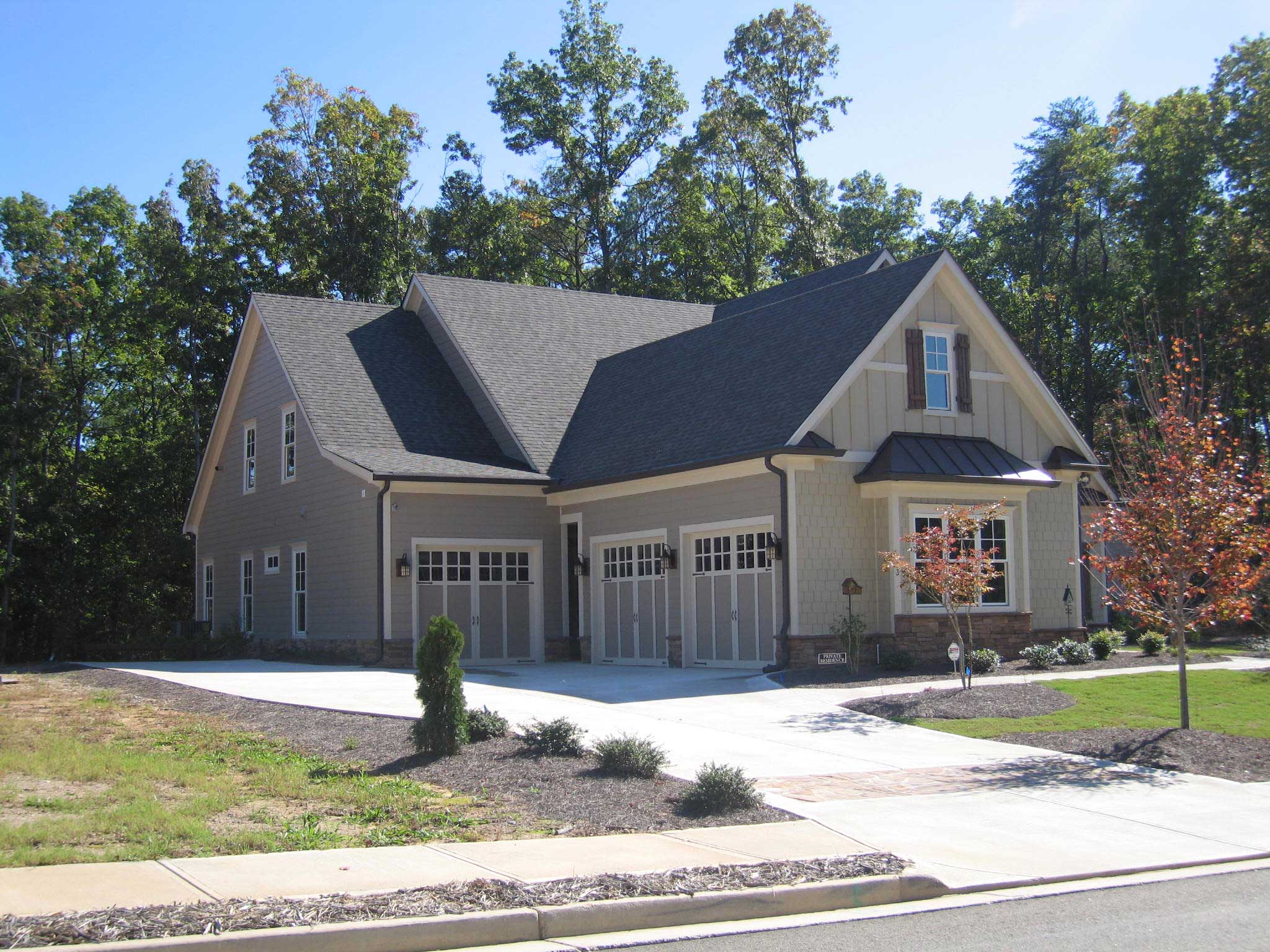

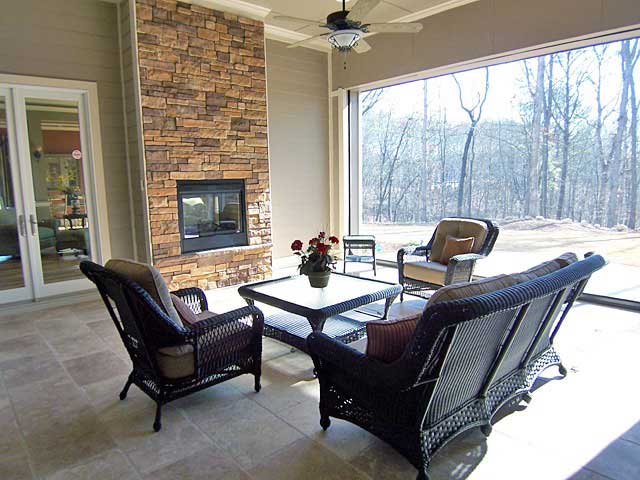

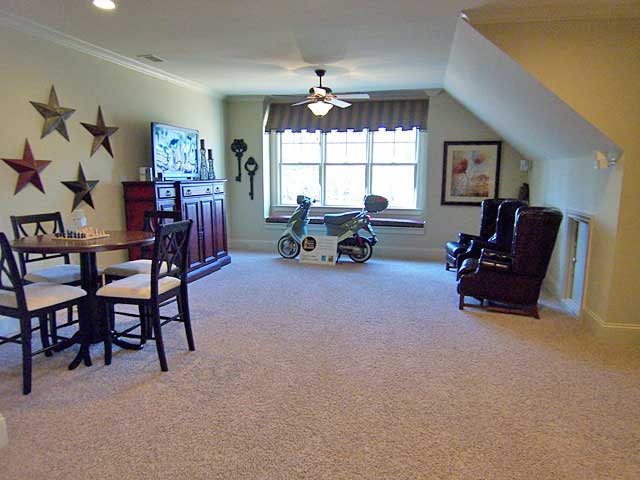

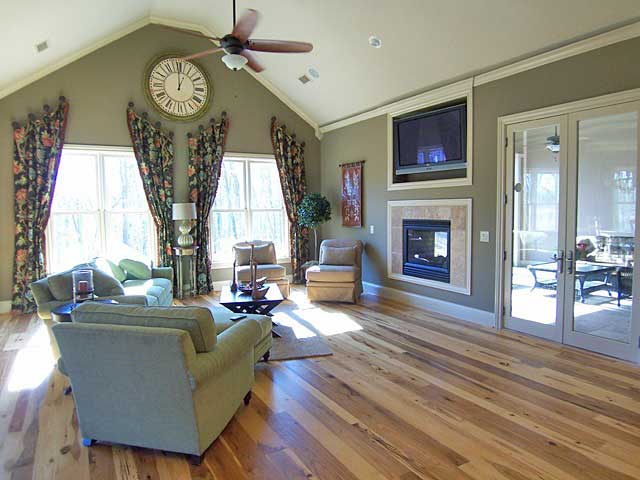

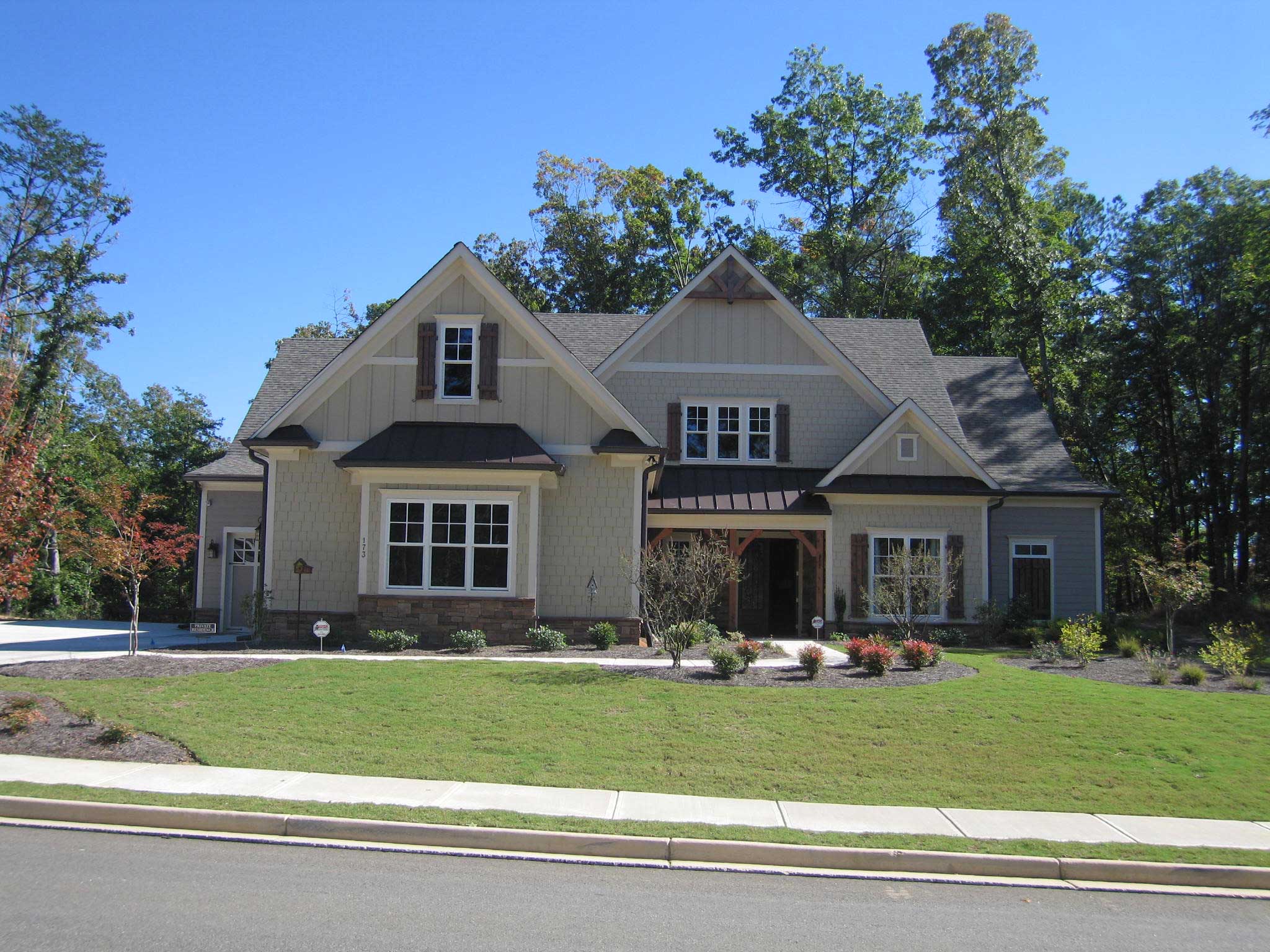

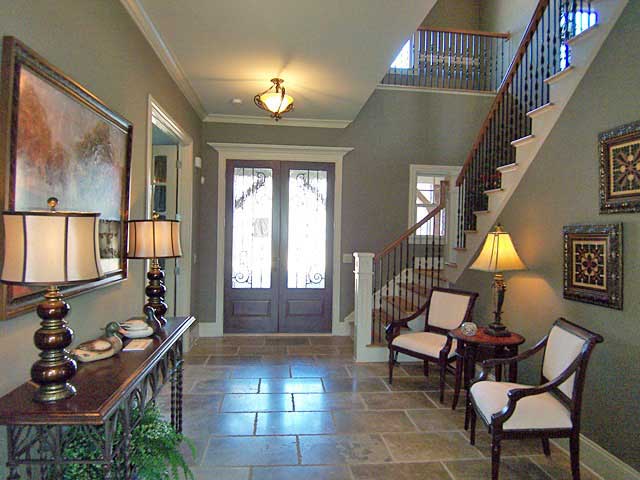

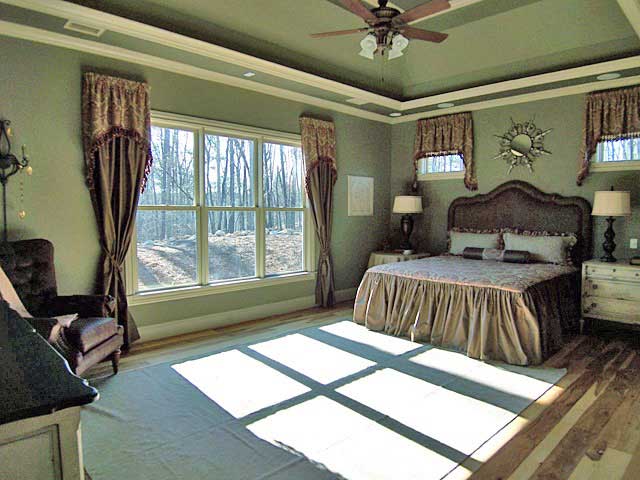

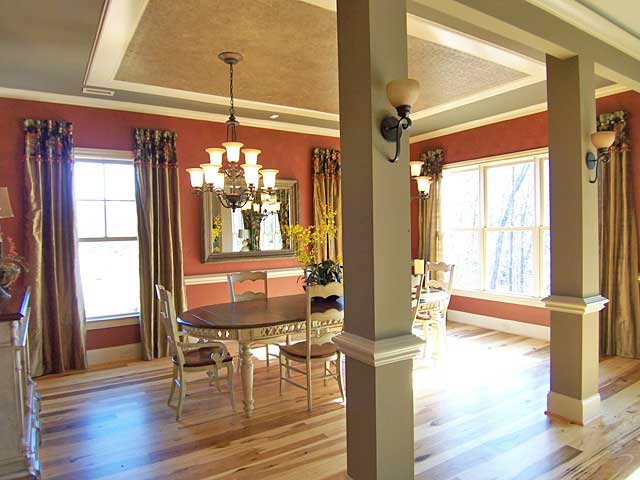

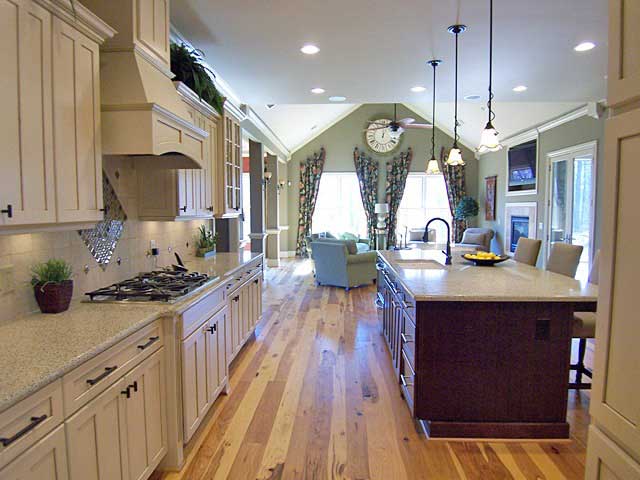

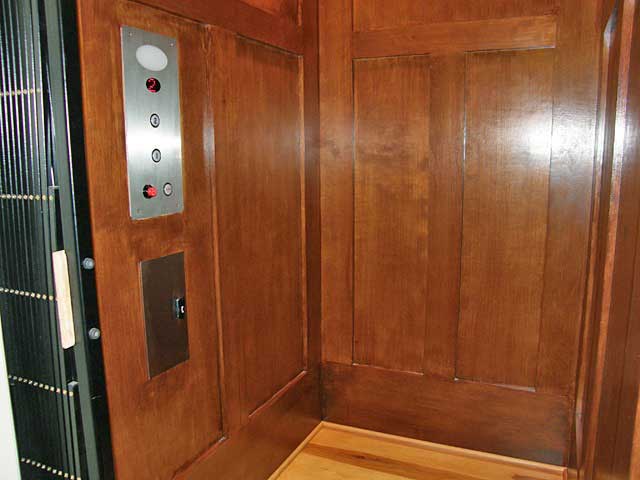

This lovely Country style home plan with Craftsman influences (House Plan #163-1047) has 5628 sq. ft. of living space. The 2 story floor plan includes 6 bedrooms, 5 full bathrooms, and 1 half bath. This versatile plan features a loft and upstairs bedrooms as well as many options for finishing the daylight terrace level. Don't miss the see-through fireplace located between the vaulted grand room and dining room, the huge walk-in pantry, space for an elevator and the unique master bath. The main level surrounds the large covered porch and has a striking foyer that looks right into the view. A third garage bay adjoins the kitchen area and has two entrances into the house. (Actual plan may vary from photos.)
Each plan set includes the following:
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY

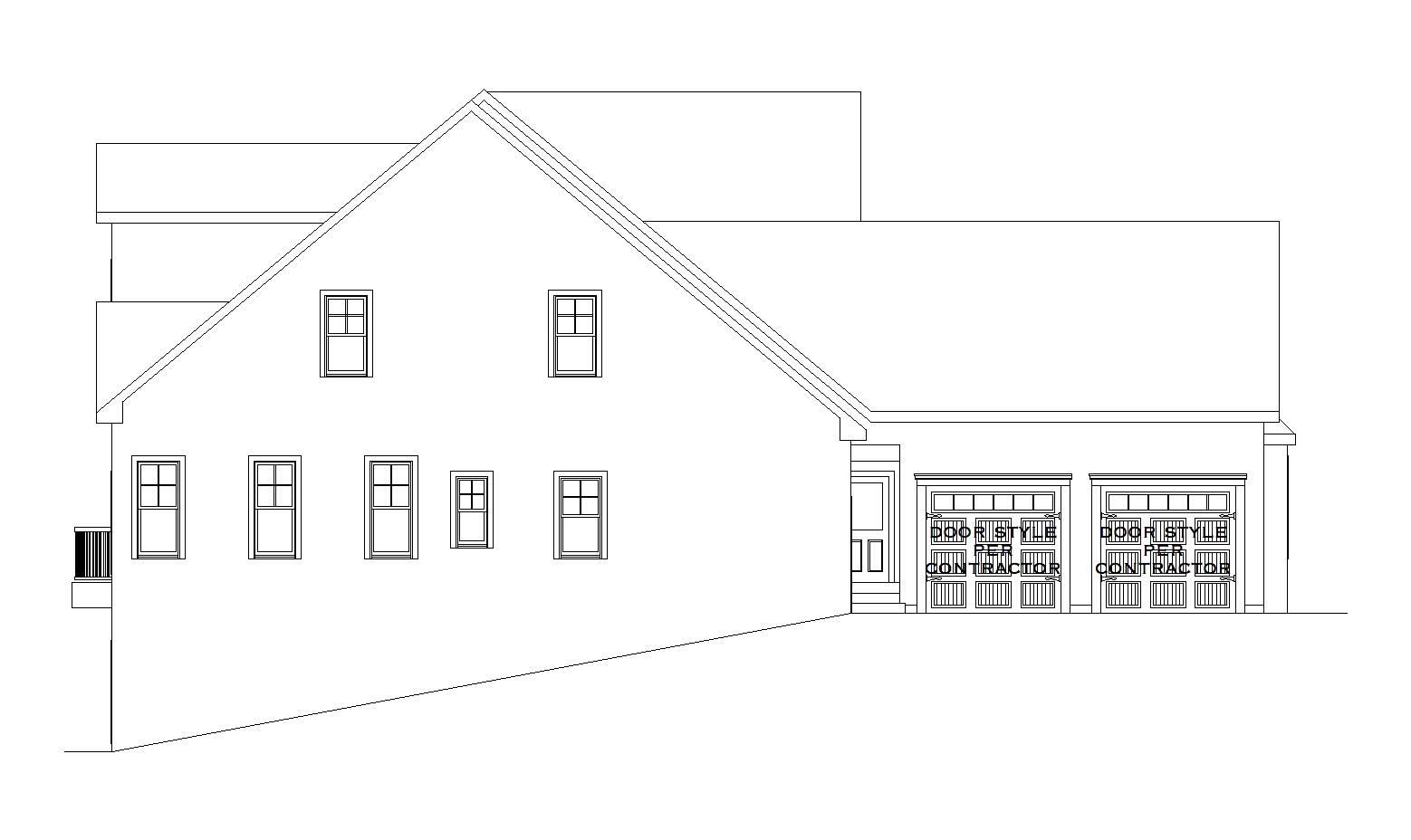

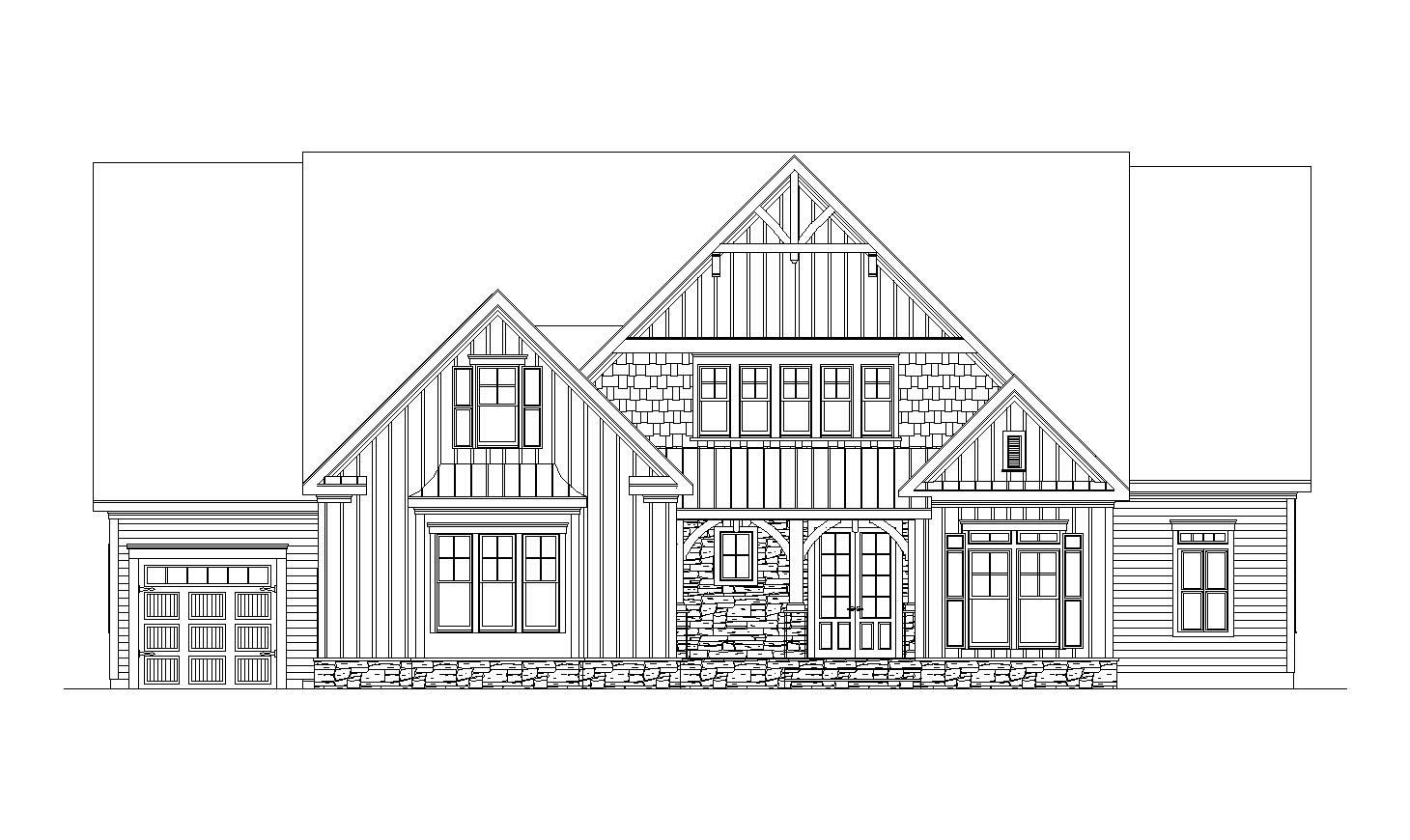

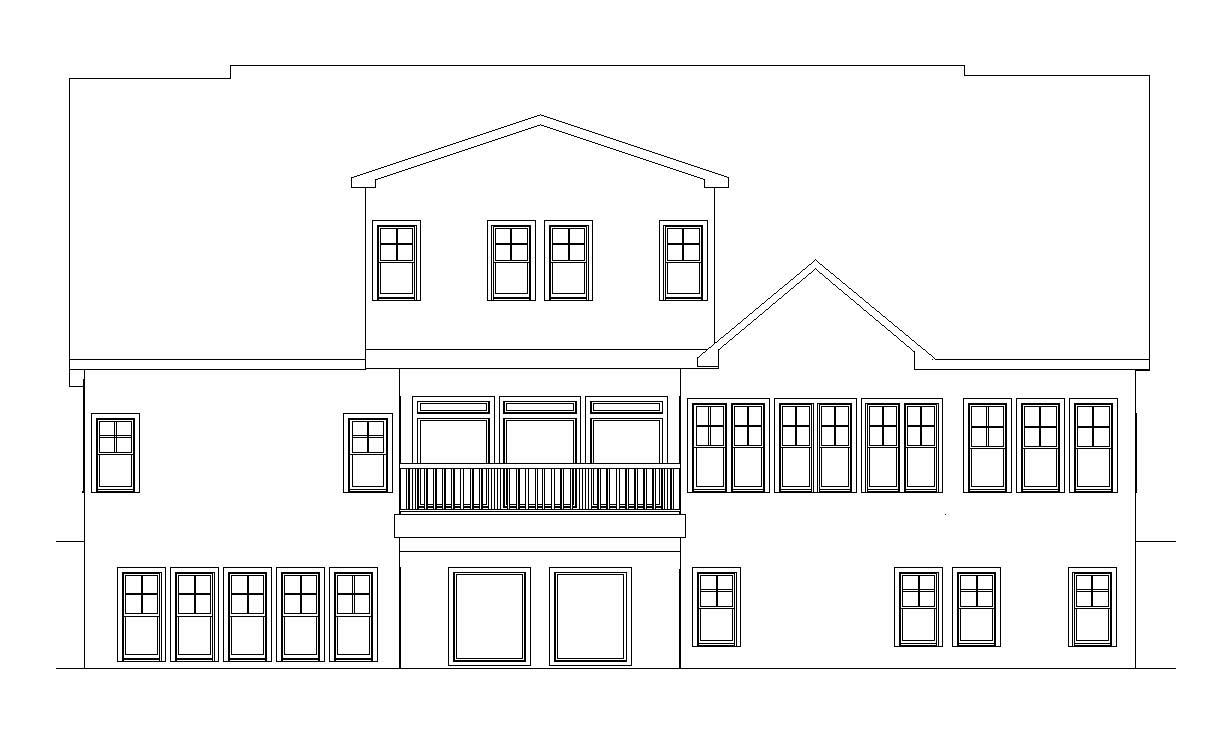

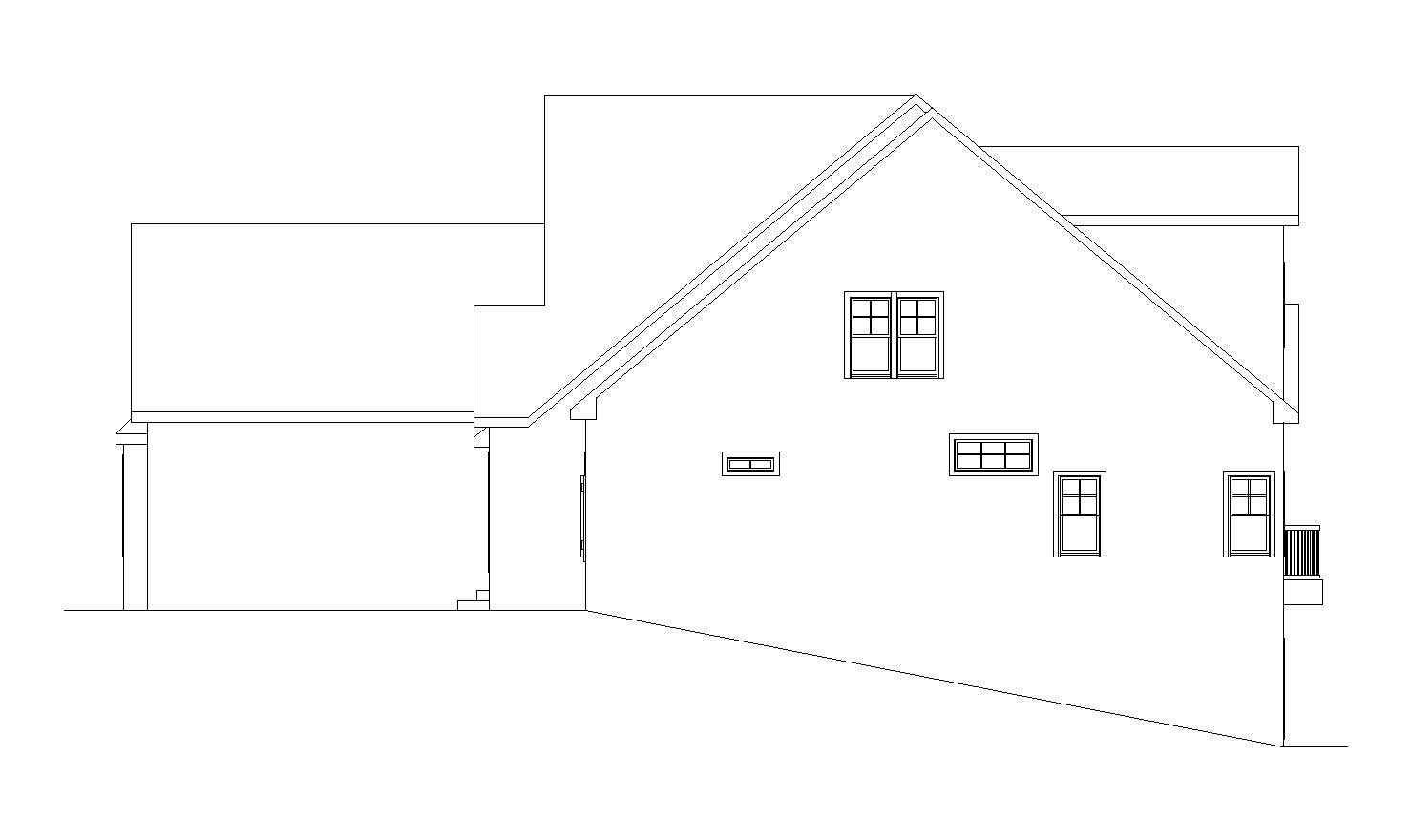

- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

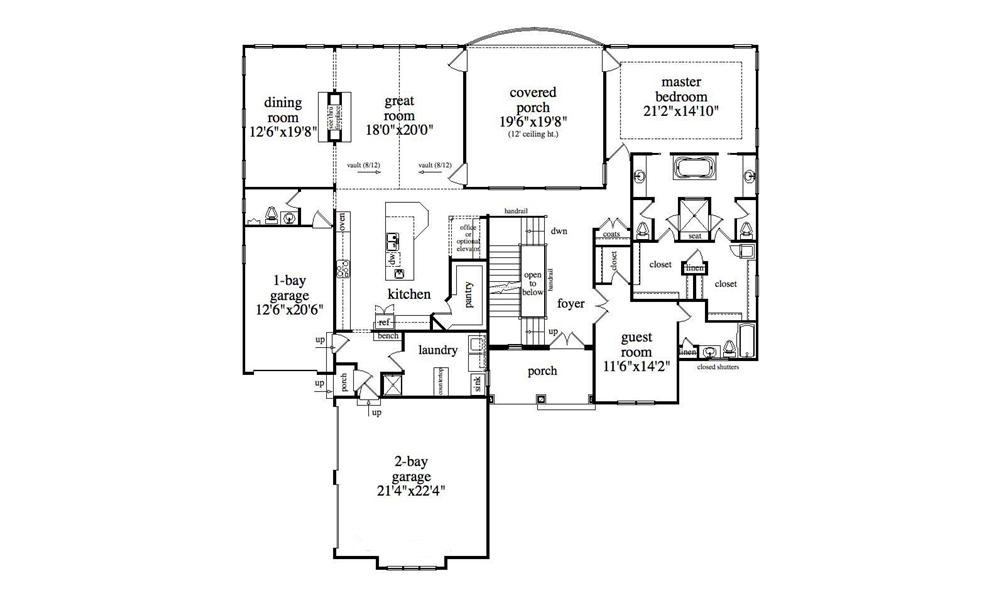

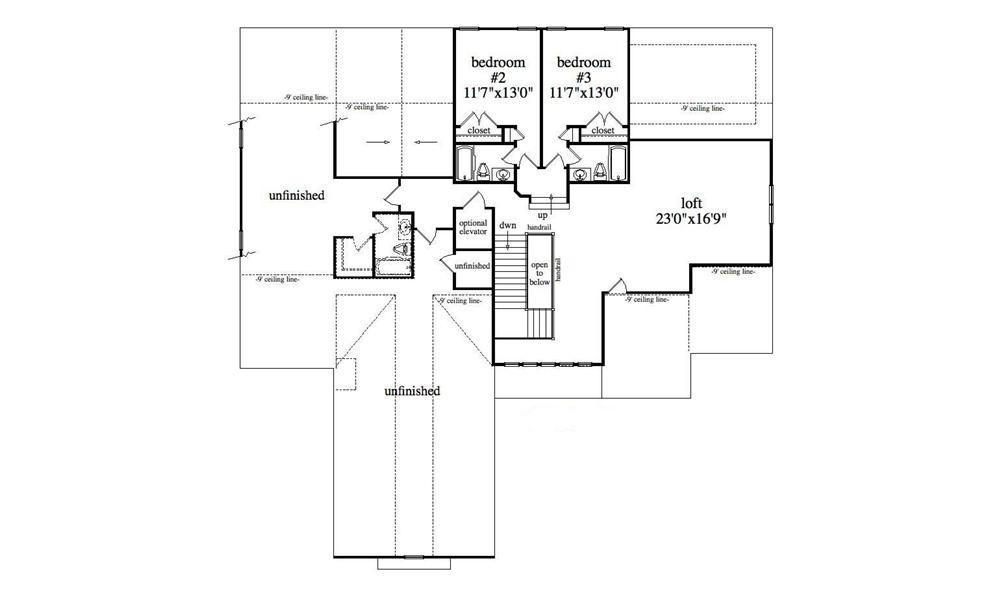

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Exterior Wall Framing

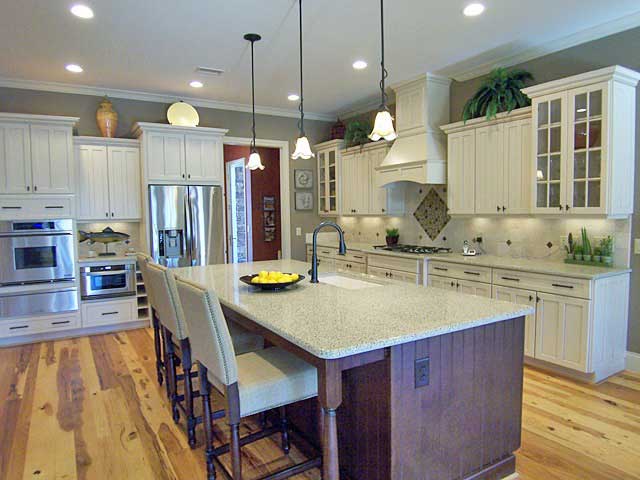

Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
