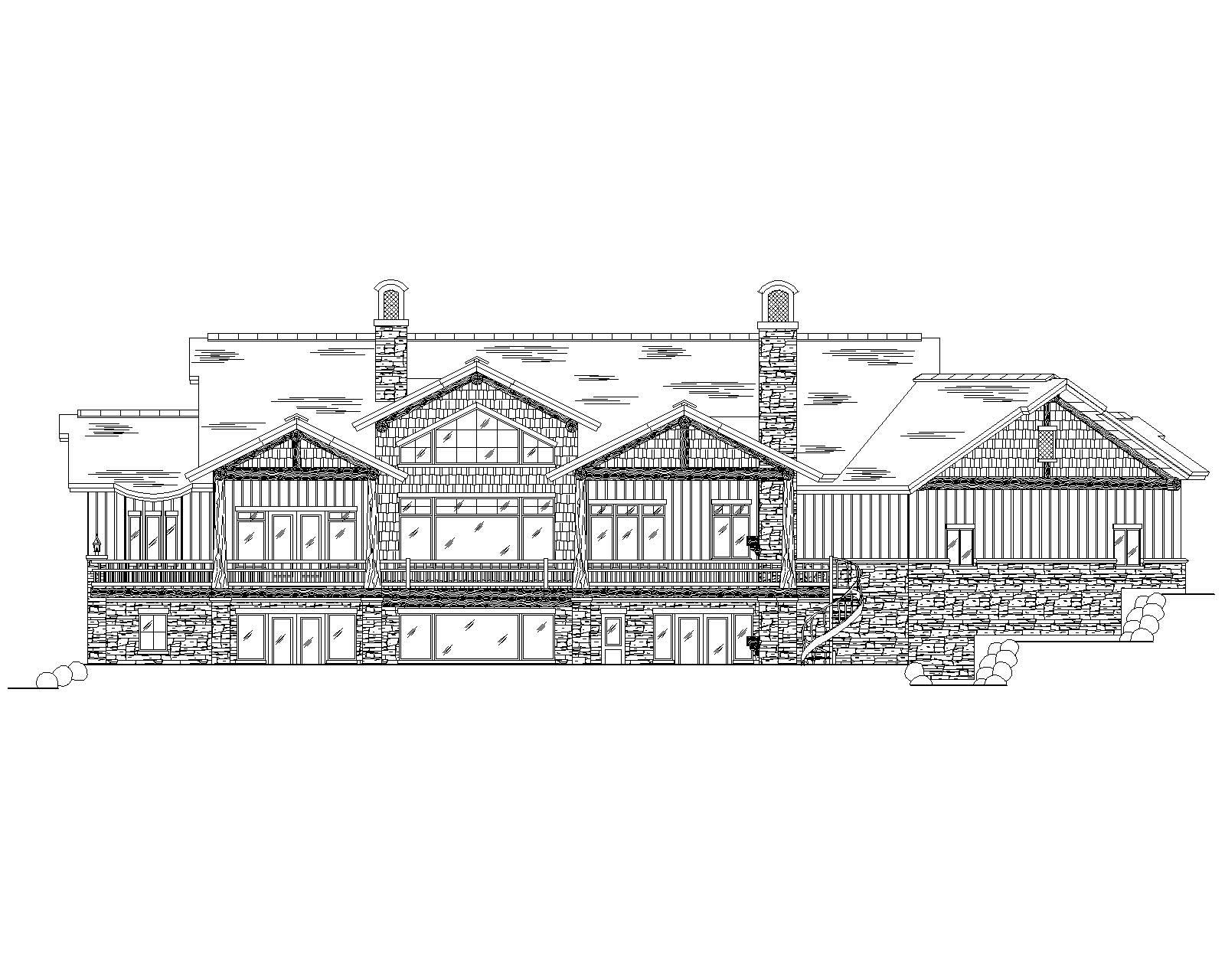

Home Plan Rear Elevation
5-Bedroom, 4222 Sq Ft Craftsman Home Plan - 135-1036 - Main Exterior
Home Plan Rear Elevation

About Plan # 135-1036

About Plan # 135-1036

8404 SQUARE FEET 5 BEDROOMS 6 FULL BATH 4 HALF BATH
2 FLOOR 116' 6" WIDTH 83' 7" DEPTH 5 GARAGE BAY

Just imagine coming home to this luxury mountain house plan. Your guests pull up to the porte-cochere and then walk along the long, covered porch to reach the double door entry. Once inside, the interior of this rustic manor continues with this look and has elongated rooms throughout the main floor. From the entry foyer, enter into the great foom and appreciate its spaciousness and the advantages of an open floor plan. At the far end is a wall of windows looking out to the sundeck. The wall to the left has a grand fireplace. On the opposite side it the open concept kitchen with its island, eating bar, walk-in pantry and breakfast nook. To enjoy the outdoors on those warm days and nights, there is an outdoor kitchen and fireplace. For those rainy or snowy days, the friend's entry and access to the 5-car garage are in the large mudroom. Want to just read a book? There is a den which can also be a guest bedroom -- as it has a walk-in closet, a full bath, and even access to a private deck.

Completing the main floor is the spectacular master suite. The master bedroom has a fireplace and double doors to the covered deck. The master bath has separate his-and-her sink vanities, a walk-in shower, a water closet, and a soaking tub. There are also two generously-sized his-and-her walk-in closets.

Above the main floor, you will find a loft area and a full-sized in-law suite with its own full bath, walk-in closet, and kitchen. Concerned about stairs? The home design includes an elevator.

Now, head downstairs to have some fun. There you will find a theater, billiards room, a game nook, a bar, and a wine cellar. There are two additional bedrooms, three full baths, and two half-baths on the lower level. Looking to get a workout in? Head over to the exercise room. Better yet, invite some buddies over to play hoops on the indoor basketball court!

Note: for grade to ridge height for back of the house: 34’-7” if you “grotto” the back as we have shown, 36’-10” if you just do it a full walk-out basement (as seen on the right side elevation where the basement double door is).

Each plan set includes the following:

  • Cover
  • General notes
  • Foundation/Footing plan
  • Basement plan
  • Floor framing plan
  • Main level plan
  • Upper-level floor framing (if applicable)
  • Upper floor plan (if applicable)
  • Roof framing plan
  • Building sections/details
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

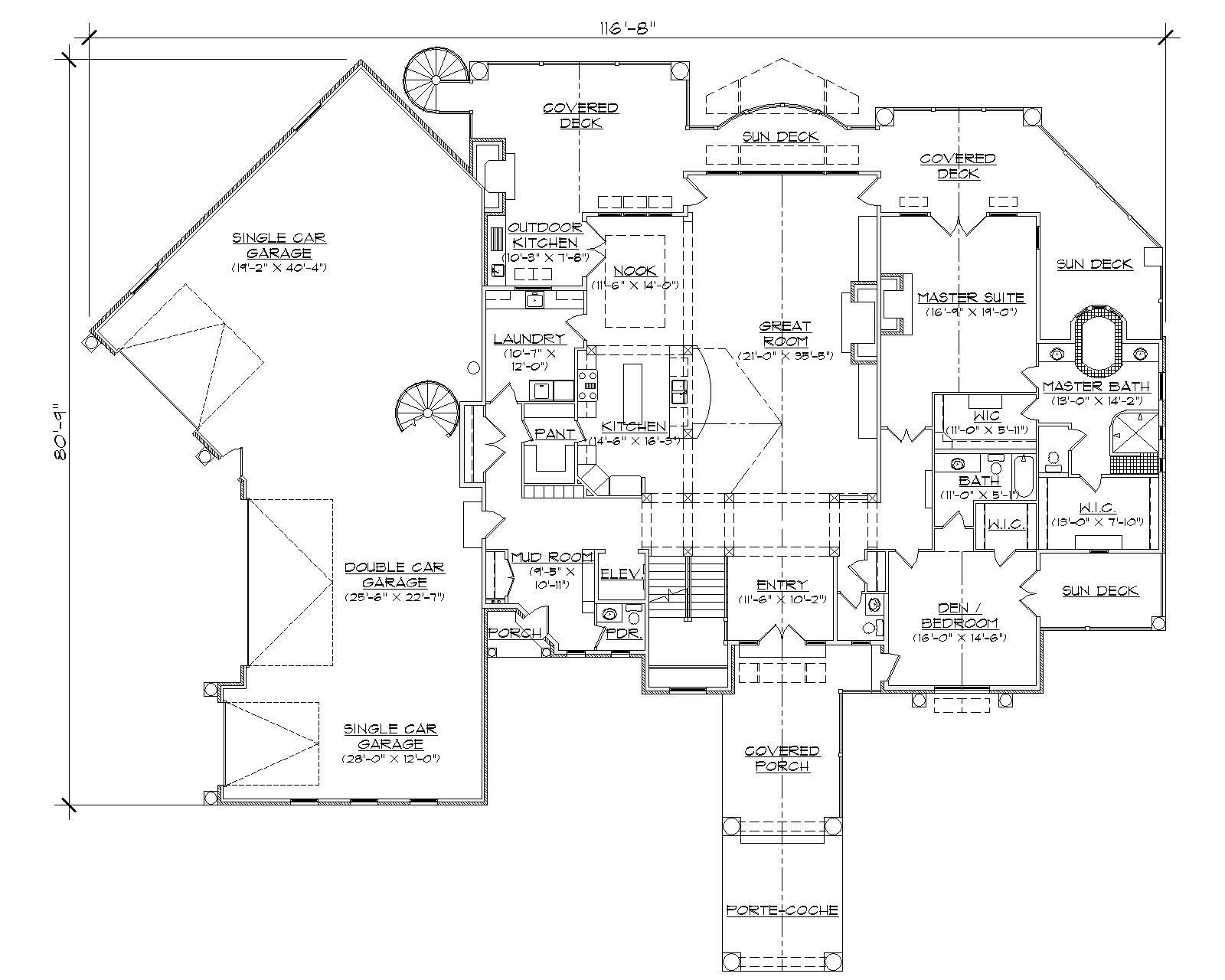

Home Plan: #135-1036 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #135-1036

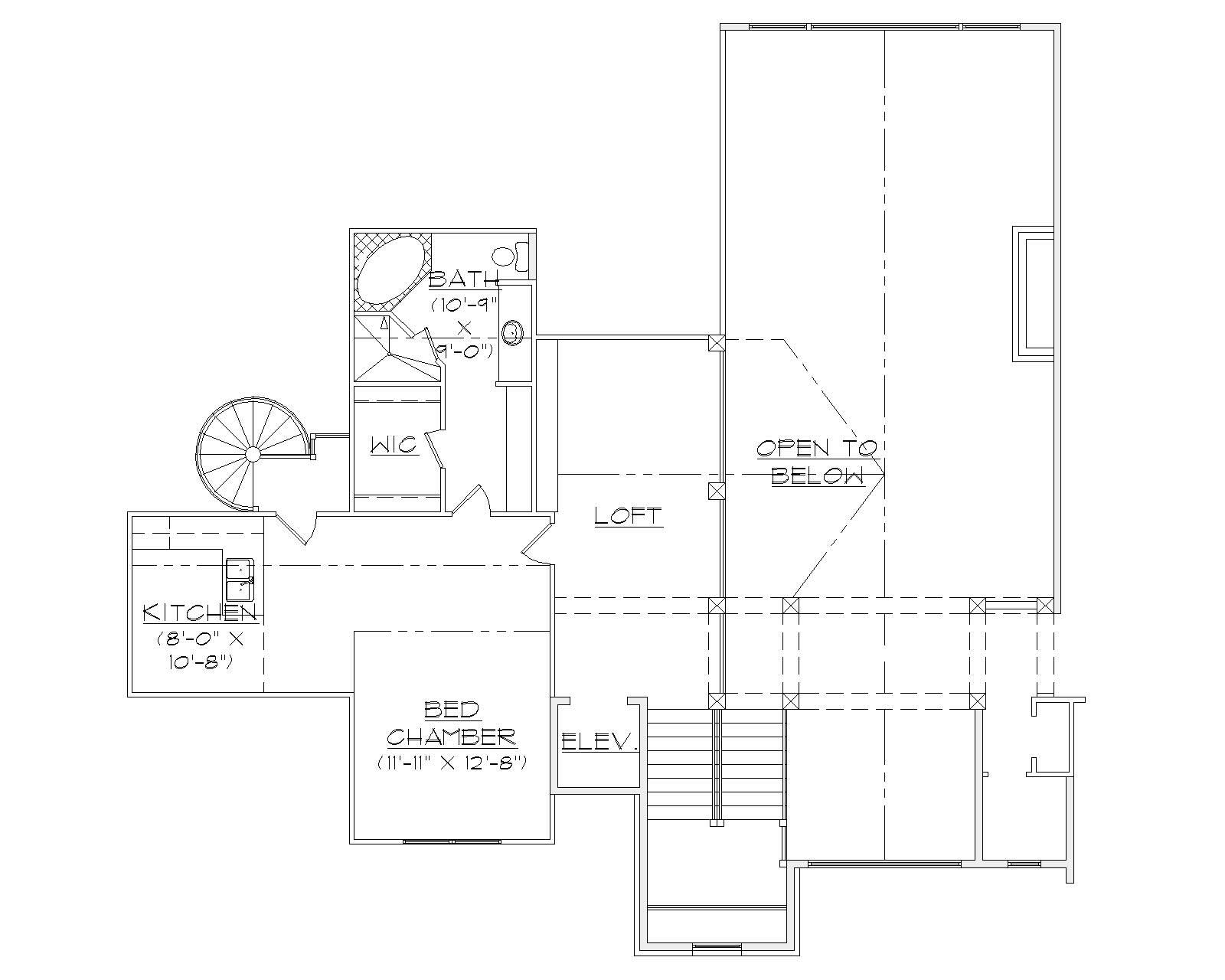

#135-1036 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #135-1036

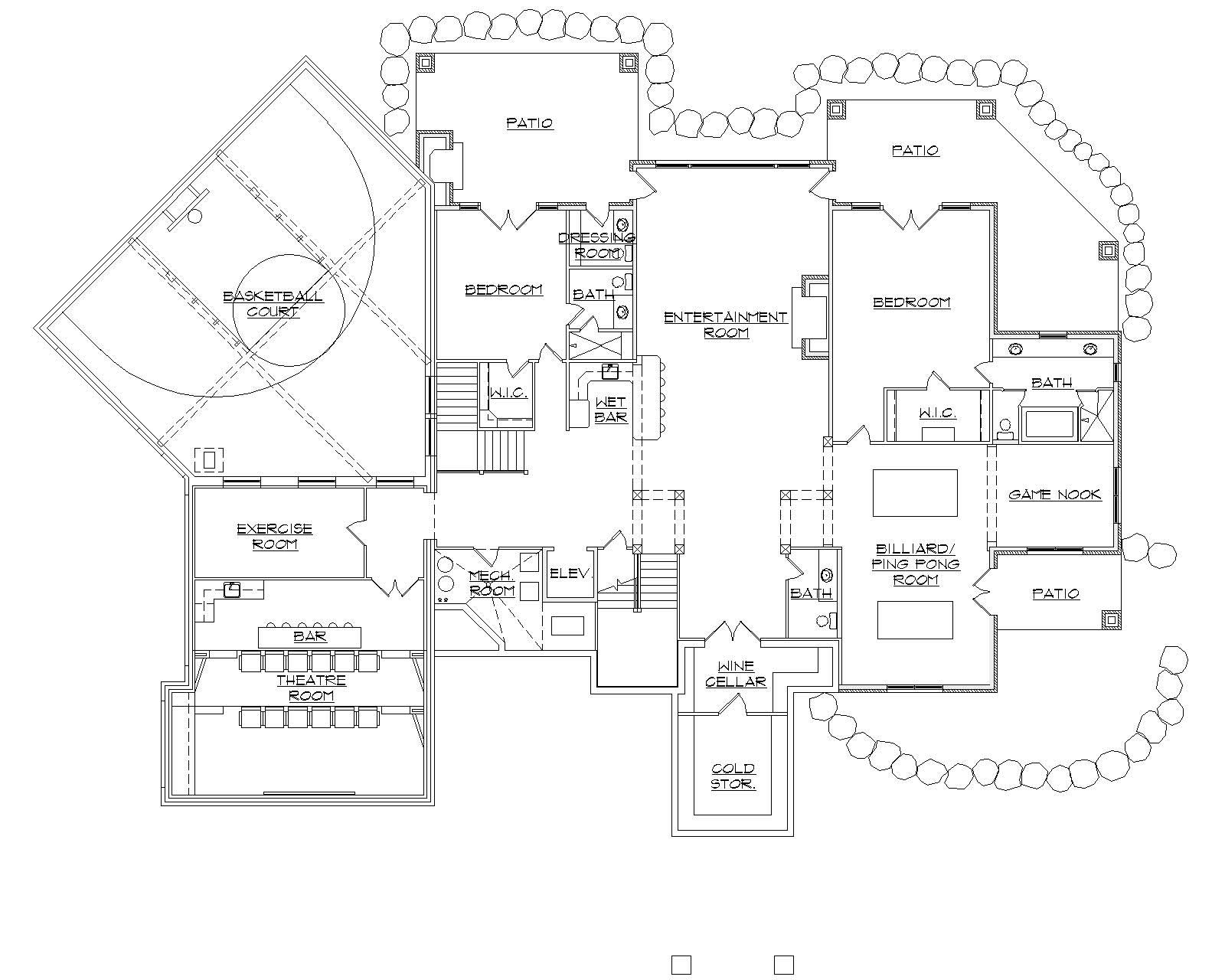

#135-1036 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #135-1036

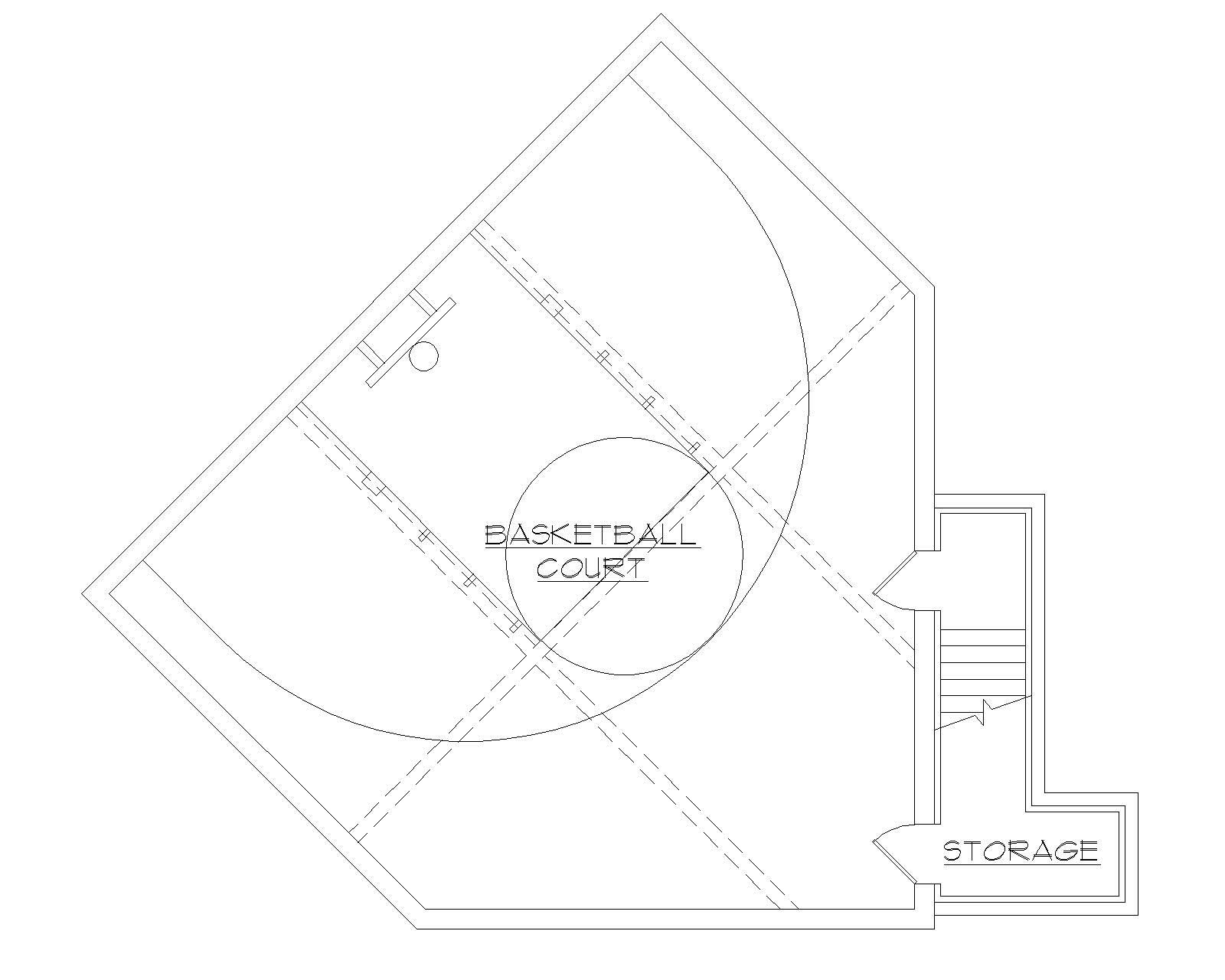

#135-1036 Floor Plan Basement - basketball court Floor Plan Basement of Craftsman Plan #135-1036
