Mediterranean Home with 4 Bdrms, 3323 Sq Ft

About House Plan #107-1000

3323

Sq Ft

4

Bedrooms

3

Baths

0

Half Baths

0

Cars

2

Stories

48' 0'

Width

79

Depth

Starting at$1350.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

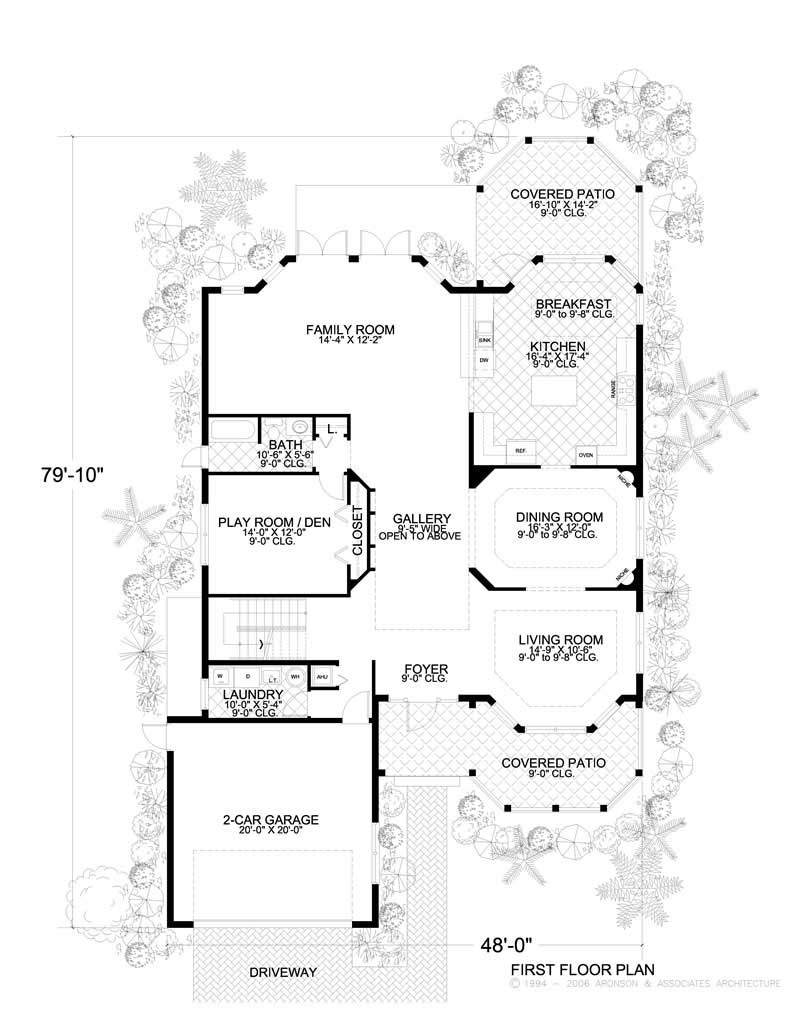

MAIN LEVEL FLOOR PLAN

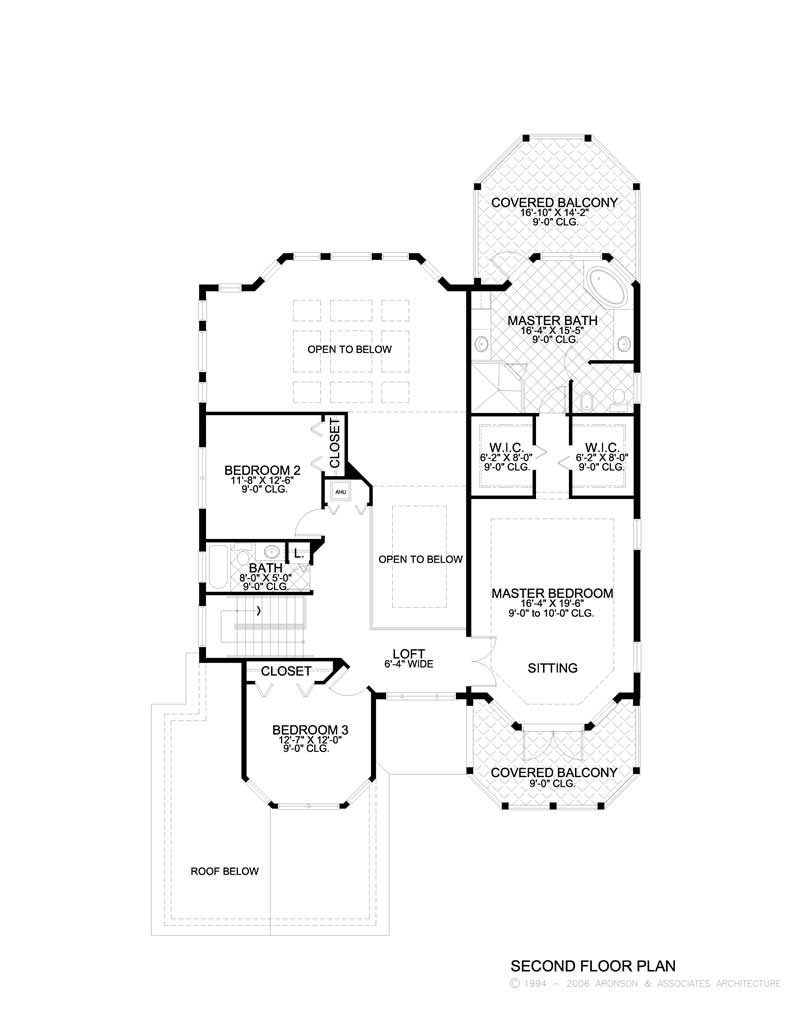

SECOND LEVEL FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

Two Story Four Bedrooms Two car Garage Two Baths plus Cabana bath Traditional Key West style This unique design features a central Gallery with two volume ceiling Covered Balconies and Patio Huge island Kitchen with eating bar, Café open to covered patio This model includes an exclusive master Suite with large walk-in closets, morning kitchen tray ceilings, and a regal master Bath opens onto private balcony Spectacular family room with raised ceilings opens to patio Formal Dining Room

Home Details

Summary

Plan #:107-1000

Starting at:$1350.00

Floors:2

Bedrooms:4

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area:3323 Sq. Ft.

First Floor:2020 Sq. Ft.

Second Floor:1303 Sq. Ft.

Unheated Area:

Garage:443 Sq. Ft.

Dimensions

Depth:79' 10''

Ridge Height:33'8' 0''

Architectural Styles

Mediterranean

Exterior Wall Material

Stucco

Roofing Type

Hip

Roof Pitch

5/12

Special Feature

Dining RoomFamily Room

Garage Type

Attached Garage

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Floor plan

Kitchen & Bath layout

Exterior elevations

Sections

Structural plans

Foundation plan

Roof plan

Mechanical layout

Electrical layout

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
