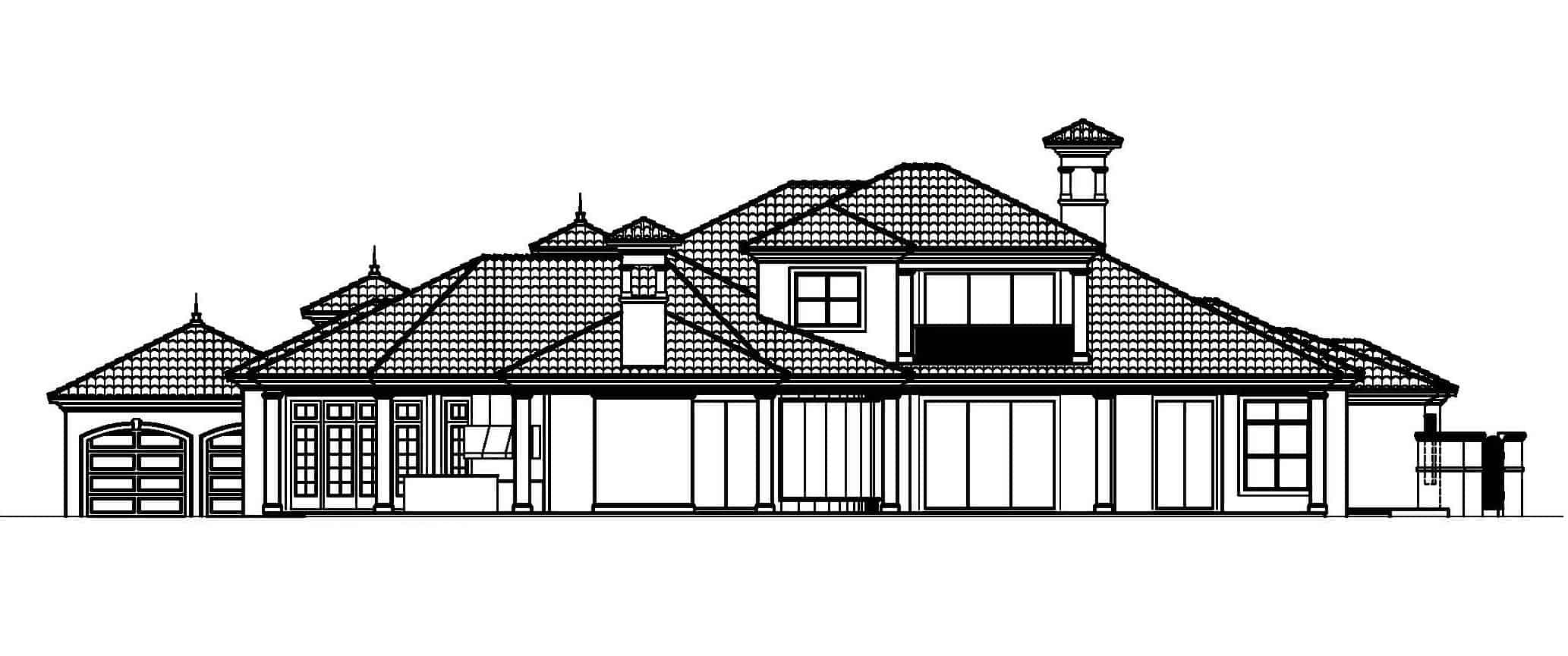

133-1035: Home Plan Rear Elevation
4-Bedroom, 5000 Sq Ft Florida Style Home Plan - 133-1035 - Main Exterior
133-1035 rear

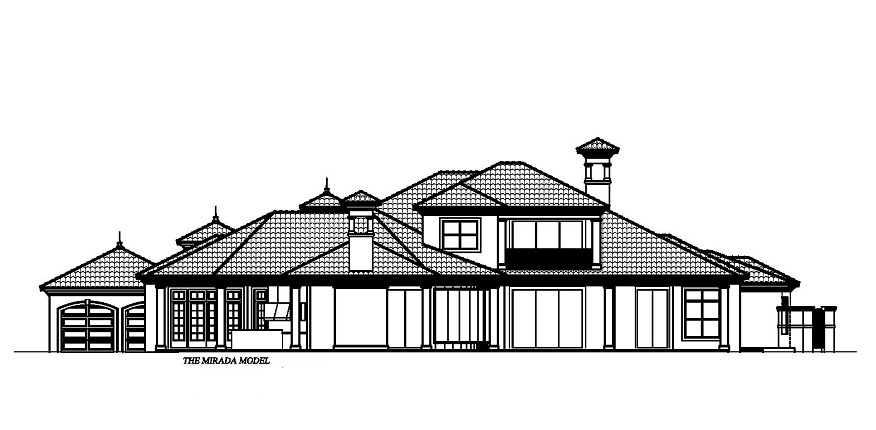

133-1035: Home Plan Rear Elevation

About Plan # 133-1035

About Plan # 133-1035

5000 SQUARE FEET 4 BEDROOMS 5 FULL BATH 0 HALF BATH
1 FLOOR 134' 0" WIDTH 149' 8" DEPTH 4 GARAGE BAY

This remarkable Mediterranean/Spanish house plan is truly amazing. These designs include a 4 car garage, breezeway and portico. This plan has a Beautiful layout with all the amenities including a Rec room, plenty of storage and a privacy garden. The first floor is CMU block and the 2nd floor 2x6 framing.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Carriet
Love the eat-in kitchen plans!
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

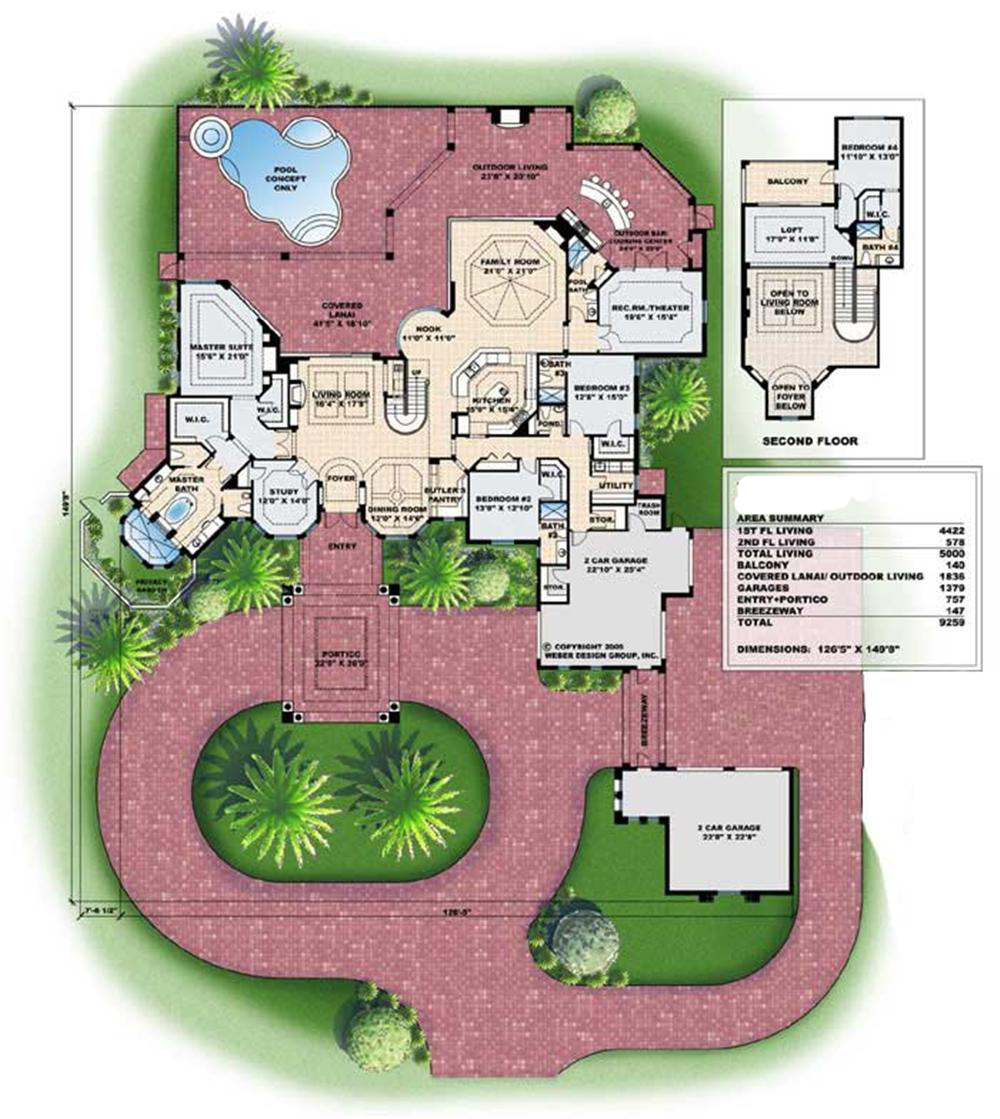

Home Plan: #133-1035 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #133-1035
Home Plan: #133-1035 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #133-1035
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1035
Floors:
1
Bedrooms:
4
Full Baths:
5
Garage :
4

Square Footage

Heated Sq Feet:
5000
Main Floor:
4422
Upper Floor:
578
Unfinished Sq Ft:

Dimensions

Width:
134' 0"
Depth:
149' 8"

Architectural Styles

Mediterranean
Luxury
Spanish
Concrete Block/ ICF Design
Florida Style
In-Law Suite
Handicap Accessible

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling

Special Feature

Dining Room
Home Office
Family Room
Main Level Laundry
Library
Loft
Split Bathroom
Storage
Vaulted Ceilings
Workshop

Garage Type

Detached Garage
Courtyard Entry
Front Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6
Concrete

Building Lot Type

Flat Site
Corner Lot

Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Friend's Entry
Screened in Lanai
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area

Additional Notes from Designer

Please Note that the designer's office will be closed between 8/4/22 to 8/9/2022. Any orders placed during this time will be processed once the designer resumes office after 8/9-2022.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
