3-Bedroom, 2767 Sq Ft Ranch Plan with Master Bathroom

About House Plan #108-1671

2767

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

3

Cars

2

Stories

80' 0'

Width

57

Depth

Starting at$1750.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

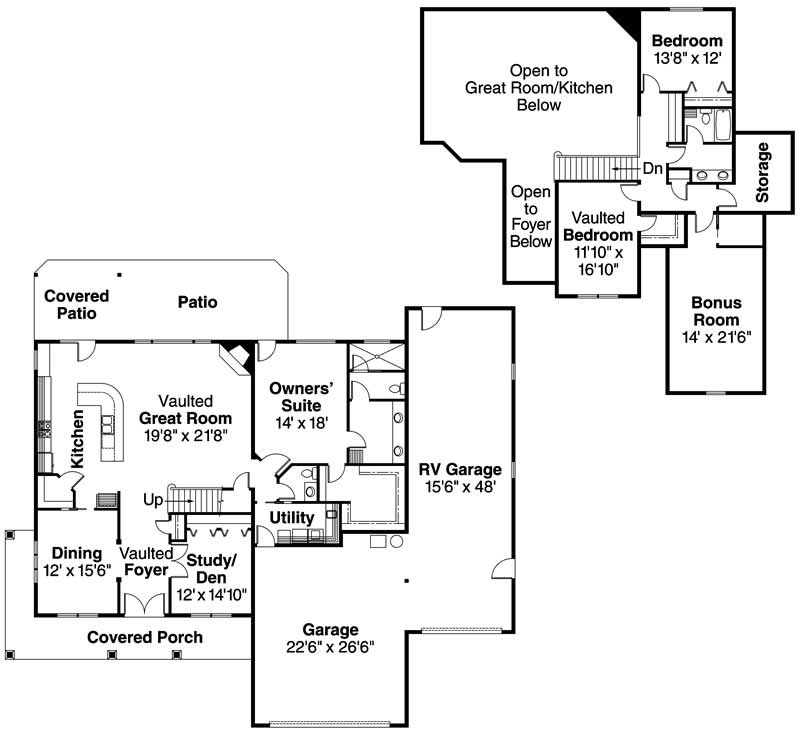

MAIN FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

House Plan Description

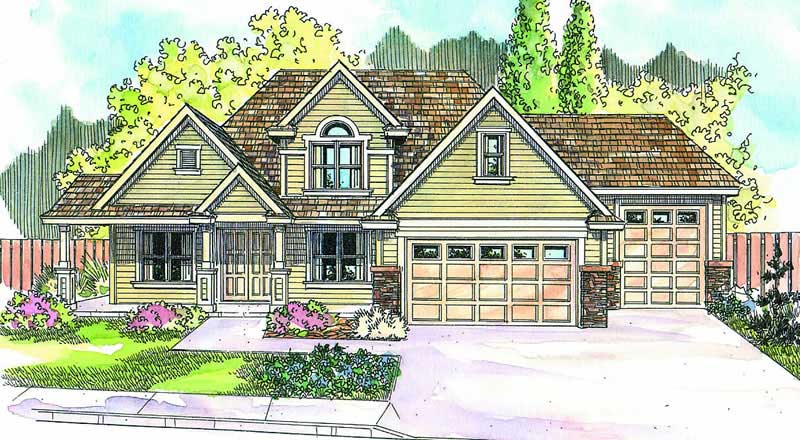

This is a two story, traditional style house plan with 2765 total living square feet. Columns support a wide front porch that wraps around to the left of this traditional home plan. The vaulted ceilings expand the sense of volume in the foyer, great room and kitchen. Utility room links with the standard two-car garage, plus adjoining the deep RV garage.

Home Details

Summary

Plan #:108-1671

Starting at:$1750.00

Floors:2

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:2767 Sq. Ft.

First Floor:2063 Sq. Ft.

Second Floor:704 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Ranch Traditional

Exterior Wall Material

Vinyl SidingBrick

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Garage Type

Front Entry

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Artist’s rendering of the home,

Front/Rear/Left and Right Elevations,

Main floor plan, Second or Basement floor plans (if applicable),

Foundation plan and detail,

Floor framing plan,

Roof framing plan, supporting details and

Electric layout.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
