Home > Floor Plans by Styles > Contemporary House Plans > Plan Detail for 126-1694
Main image for house plan # 12810
HOME PLAN REAR ELEVATION
3-Bedroom, 2162 Sq Ft Contemporary House Plan - 126-1694 - Front Exterior
HOME PLAN REAR ELEVATION

About Plan # 126-1694

About Plan # 126-1694

2162 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 60' 0" WIDTH 40' 0" DEPTH 0 GARAGE BAY

Main level: Foyer with coat closet, family room with large fireplace and access to solarium, dining room, kitchen with breakfast area, half bath, laundry room, master suite with private bathroom and walk-in closet.2nd level: 2 secondary bedrooms, exercise room or bedroom #4, full bathroom, mezzanine, bonus room or bedroom #5 (352 sq.ft., 31.68 sq.m..) over garage, mezzanine. Solarium, exercise area, abundant fenestration, cathedral ceiling, special ceiling treatments, double sinks in private bathroom, bonus room over garage.

Each plan set includes the following:

  • Exterior elevations
  • Foundation plan
  • Main floor plan
  • Upper floor plan (if applicable)
  • Roof plan
  • Truss diagrams & building sections
  • Construction details
  • Typical wall section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • No Electrical
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

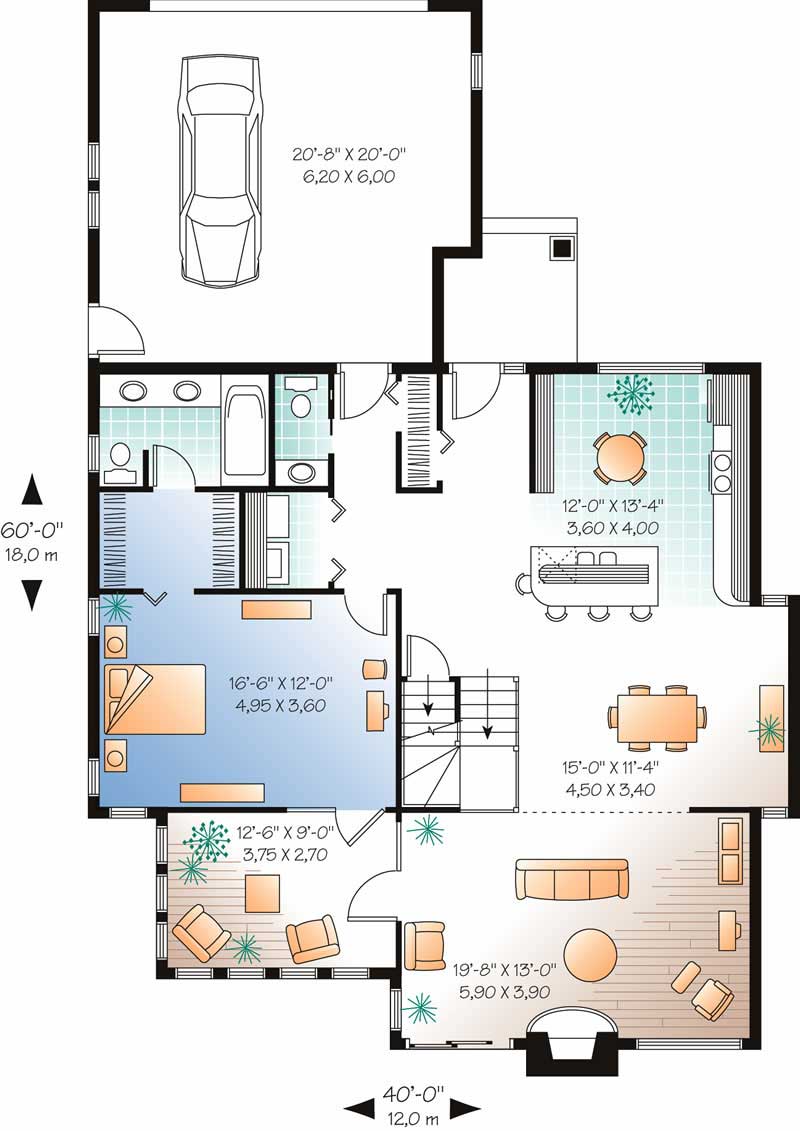

Home Plan: #126-1694 Floor Plan First Story - home Floor Plan First Story of Contemporary Plan #126-1694

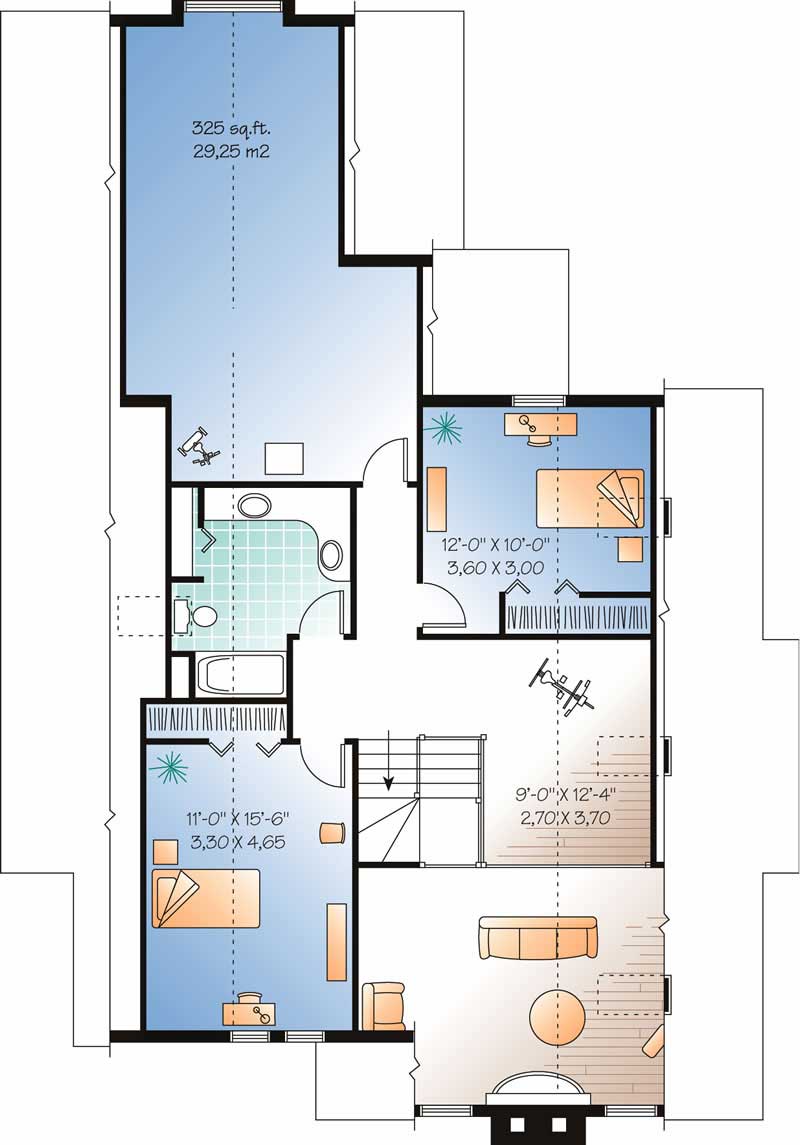

#126-1694 Floor Plan Second Story - home plan second level Floor Plan Second Story of Contemporary Plan #126-1694
Home Plan: #126-1694 Floor Plan First Story - home Floor Plan First Story of Contemporary Plan #126-1694
#126-1694 Floor Plan Second Story - home plan second level Floor Plan Second Story of Contemporary Plan #126-1694
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 126-1694
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2162
Main Floor:
1415
Upper Floor:
747
Unfinished Sq Ft:

Dimensions

Width:
60' 0"
Depth:
40' 0"

Architectural Styles

Vacation Homes
Contemporary

Roof Pitch

10/12

Special Feature

Fireplace
Dining Room
Bonus Room
Family Room

Garage Type

Attached Garage

Additional Notes from Designer

This designer's plans take 7-10 additional business days regardless of the type of delivery (express, email, etc). Please keep this in mind when ordering. Please note that the designer's office will be closed from December 22nd to January 3rd inclusively. BCIN is available for this designer - please send in a modification request for cost and timeframe. PLEASE NOTE! This designer's plans do NOT come with an electrical layout. They will provide an electrical layout for an additional fee. Thank you. BCIN is available - Please allow 10 business days to complete!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Three printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 3 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
